Hp-175-225 26, Outside 90° corner optional detail – Oldcastle BuildingEnvelope HP-175 User Manual

Page 26

"A"

SECT "A-A"

SEAL

CONTINUOUS

AN-3 ANGLE

ATTACH W/ FS-6

(#10 X 3/4" PPH)

@ 18" O.C.

ATTACH ANGLE TO

CORNER CLOSURE

AT HEAD & SILL

FORMED ALUM. CORNER

CLOSURE. ATTACH W/

FS-6 (#10 X 3/4" PPH)

@ 18" O.C.

NOTE:

REFERNCE STANDARD MULL

DRAWINGS FOR ADDITIONAL

INFORMATION.

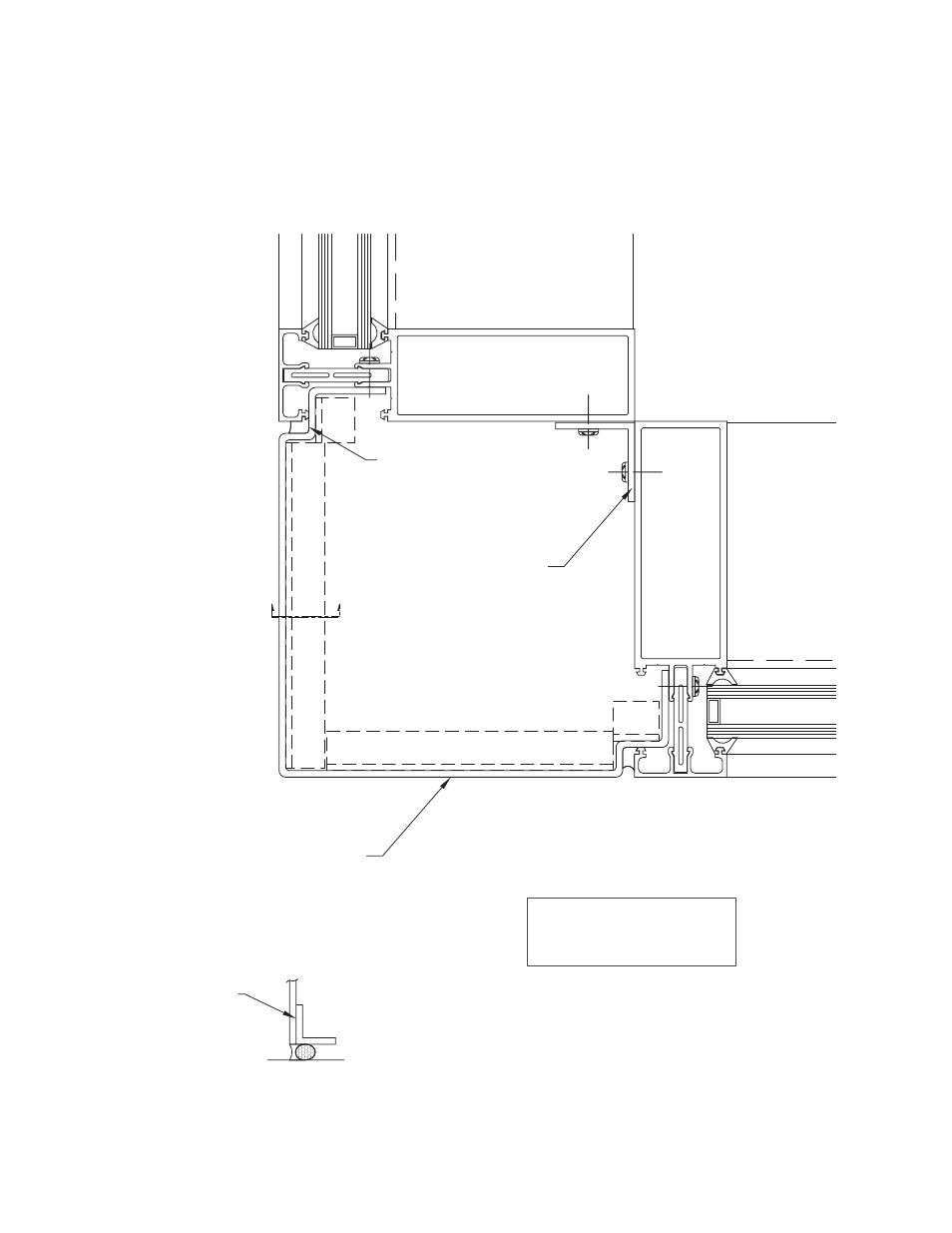

OUTSIDE 90° CORNER

OPTIONAL DETAIL

H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L





