9 8
– To reduce the risk of serious injury:
• Provide a clear path for operation of the back and legrest. Place tables and area rugs
at a distance to allow the legrest to fully extend without rubbing or interference.
WARNING

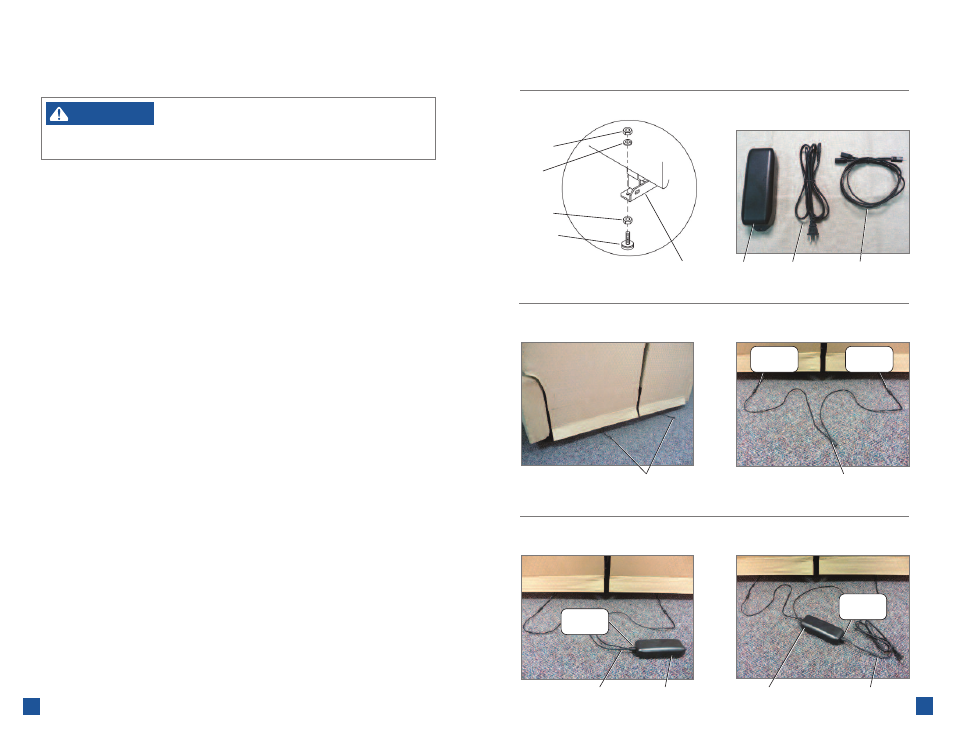

7. Adjustable glides are standard on the front rails of motion sofas with metal base rails. Adjust the front
glides to a height that provides an unobstructed path for operation of the legrest (see Furniture
Placement Guide).
• Each adjustable glide is attached to the base rail by one jam nut and one lock washer on top of
the base rail, and one jam nut on the bottom of the base rail (F
IGURE 7). Loosen the jam nut located
on top of the base rail.
• Holding the top jam nut, turn the glide clockwise to lower the unit or counterclockwise
to raise the unit.
• Tighten the bottom jam nut to the base rail, and then tighten the top jam nut to the base rail.
• Repeat this step for each adjustable glide, as necessary.
8. Identify the electrical components to be used in the following assembly steps (F IGURE 8).
9. Each end of the power motion sofa has its own motor. Locate the motor connectors
behind the end units (F IGURE 9).
10. The dual motor junction cable has two long ends to reach both motor connectors. Connect the
long ends of the dual motor junction cable to the motor connectors (F IGURE 10).
11. Connect the power transformer to the dual motor junction cable (F IGURE 11).
12. Connect the 120 volt power cord to the power transformer (F IGURE 12). Do not plug in until
instructed in the operating instructions.
13. Proceed to the Battery Backup Assembly Instructions.
14. To remove the backs, unplug the 120 volt power cord from the electrical outlet and disconnect
the dual motor junction cable from the motor connectors behind each end of the power motion
sofa. Reverse the Assembly Instructions steps.
La-Z-Time ® PowerRecline Motion Sofa &
Chair Assembly Instructions
La-Z-Time ® PowerRecline Motion Sofa &
Chair Assembly Instructions
F IGURE 7 F IGURE 8
F IGURE 9 F IGURE 10
F IGURE 11 F IGURE 12
Front Base Rail
Jam Nut
Lock
Washer
Jam Nut
Adjustable
Glide
Power
Transformer 120 Volt
Power Cord Dual Motor
Junction Cable
Dual Motor
Junction Cable
Make this
connection
Dual Motor
Junction Cable Power
Transformer
Make this
connection
Power
Transformer 120 Volt
Power Cord
Make this
connection
Make this
connection
Motor
Connectors
