La-Z-Time ® PowerRecline + Motion-Modulars
Assembly Instructions
La-Z-Time ® PowerRecline + Motion-Modulars
Assembly Instructions

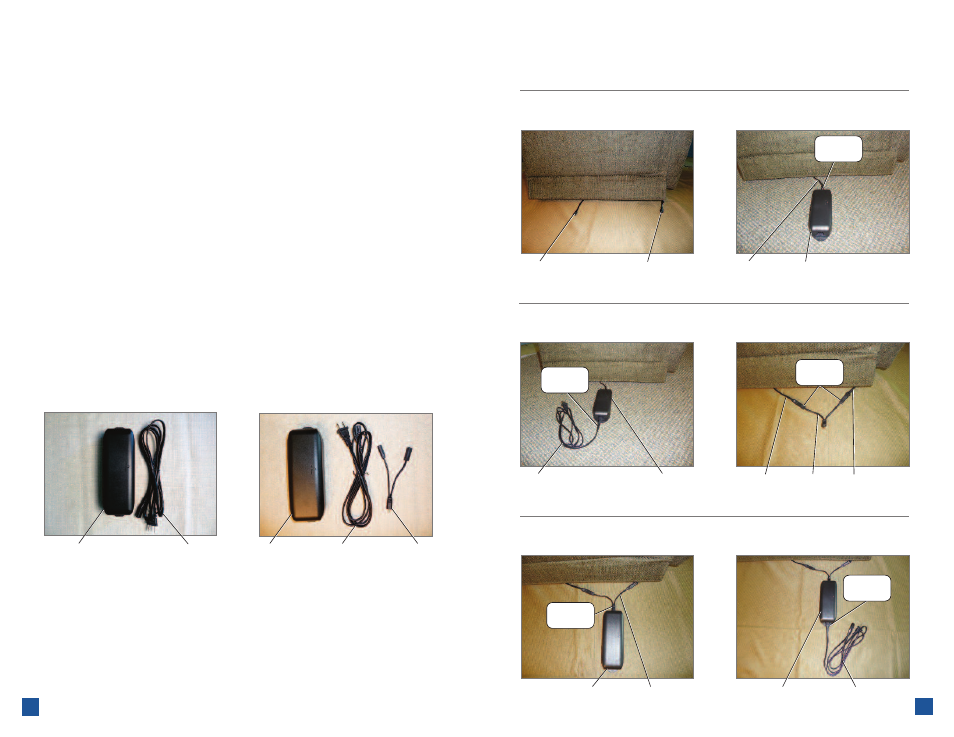

9. Identify the electrical components to be used in the following assembly steps (F IGURE 10). Components
vary by style; units with lighted cup holders have additional connections.
10. Locate the motor connector behind the power motion-modular unit (F IGURE 11). If assembling a
unit with a lighted cup holder proceed to step 13.
11. Connect the power transformer to the motor connector (F IGURE 12).
12. Connect the 120 volt power cord to the power transformer (F IGURE 13). Do not plug in until
instructed in the Operating Instructions. Proceed to step 16 for units without lighted cup holders.
13. Connect the small Y-cable to the motor connector and lighted cup holder connector behind the power
motion-modular unit (F IGURE 14).
14. Connect the power transformer to the small Y-cable (F IGURE 15).
15. Connect the 120 volt power cord to the power transformer (F IGURE 16).Do not plug in until
instructed in the Operating Instructions.
16. To remove the backs, unplug the 120 volt power cord from the electrical outlet and disconnect
the power transformer from the motor connector behind the power motion-modular unit, or small
Y-cable if unit includes a lighted cup holder. Reverse the Assembly Instructions steps.
21 20 (PowerRecline + Motion-Modulars Assembly Instructions Continued)
PowerRecline + Units Without
Lighted Cup Holders
PowerRecline + Units With
Lighted Cup Holders
F IGURE 10
120 Volt
Power Cord Power
Transformer Power
Transformer 120 Volt
Power Cord Small
Y-Cable
F IGURE 11 F IGURE 12
F IGURE 13 F IGURE 14
F IGURE 15 F IGURE 16
Power
Transformer Motor
Connector
120 Volt
Power Cord Power
Transformer
Lighted Cup Holder
Connector (select
units only) Motor
Connector
Make this
connection
Make this
connection
Make these
connections
Motor
Connector Small
Y-Cable Cup Holder
Connector
Make this
connection
Power
Transformer Small
Y-Cable Power
Transformer 120 Volt
Power Cord
Make this
connection
