1
"
1
"
23 22

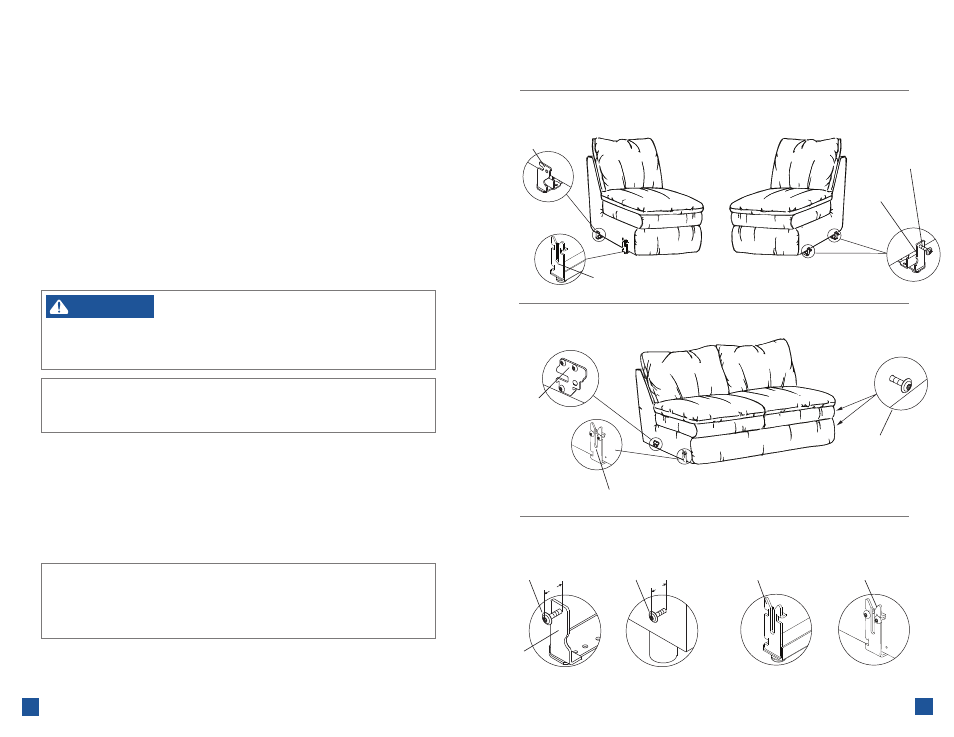

Motion-Modular units with metal base rails have one bracket in the back and one “U” bracket in the
front on the right side (sitting) of modular units without right side arms, and two stud mounts with
threaded studs on the left side (sitting) of modular units without left side arms (F
IGURE 17).
Motion-Modular units with wood legs have one side mount bracket in the back and one “U” bracket
in the front on the right side (sitting) of modular units without right side arms, and two threaded
studs on the left side (sitting) of modular units without left side arms (F
IGURE 18).
17. Use a T-30 torx driver to loosen the threaded studs to approximately 1"; this measurement may
vary depending on the fabric and style (F IGURE 19). The threaded studs are located on the left
side (sitting) of modular units without left side arms.
18. To start, place the units to be attached next to each other, about 2" apart. Position the unit with the
threaded studs slightly behind the unit with the attachment brackets. Separate the fronts of the
units to be connected, about 6" apart. Slide the rear of the unit with the threaded studs toward the
unit with the attachment brackets, aligning the threaded studs to the rear bracket. Pull the unit with
the threaded studs forward to engage the rear bracket.
F IGURE 17
F IGURE 18
F IGURE 19 F IGURE 20
NOTICE:
To reduce the risk of product damage –
• Do not move the units while connected together. The purpose of the bracket system is
to connect the units and prevent them from being separated while on the floor. The bracket
system does not provide adequate structural support for the movement of connected units.
22. All modular units must be disconnected to safely move the modular group. To disconnect the
units, lift up the left side (sitting) modular unit (with threaded studs) approximately 3" to clear
the front attachment bracket, move the front of the unit over and return it to the floor. Slide the
unit with the threaded studs backward to disengage the rear bracket.
Rear Rail Bracket
Front Rail
“U” Bracket
Stud
Mount
Threaded
Stud
Threaded
Stud
Rear
Side
Mount
Bracket
Front Side Mount
“U” Bracket
Leg Units Base Units Leg Units Base Units
Front Side Mount
“U” Bracket Front Rail “U”
Bracket Threaded
Stud Threaded
Stud
Stud
Mount
19. Lift the front of the unit with the threaded stud approximately 3" off the ground, aligning it
to the unit with the attachment bracket. Gently lower the threaded stud into the front attachment
bracket (F
IGURE 20). Keep feet clear of the unit when lowering into position.
Note: Due to variations in upholstery and style, the threaded stud length may need to be adjusted to
fit into the attachment brackets or control gaps between units. Loosen or tighten the threaded studs
to provide adequate clearance.
20. Continue connecting the modular units until all have been securely joined.
21. Proceed to the Battery Backup Assembly Instructions to complete assembly.
– To reduce the risk of serious injury:
• The front of the unit must be raised to engage the front bracket. Please seek assistance
if you are unable to lift at least 57 pounds.
• Keep feet clear of the unit when lowering into position.
WARNING
NOTICE:
To reduce the risk of product damage –
• Lift from the base rail. Do not lift from the upholstery or the bottom of the legrest.
La-Z-Time ® PowerRecline + Motion-Modulars
Assembly Instructions
La-Z-Time ® PowerRecline + Motion-Modulars
Assembly Instructions
