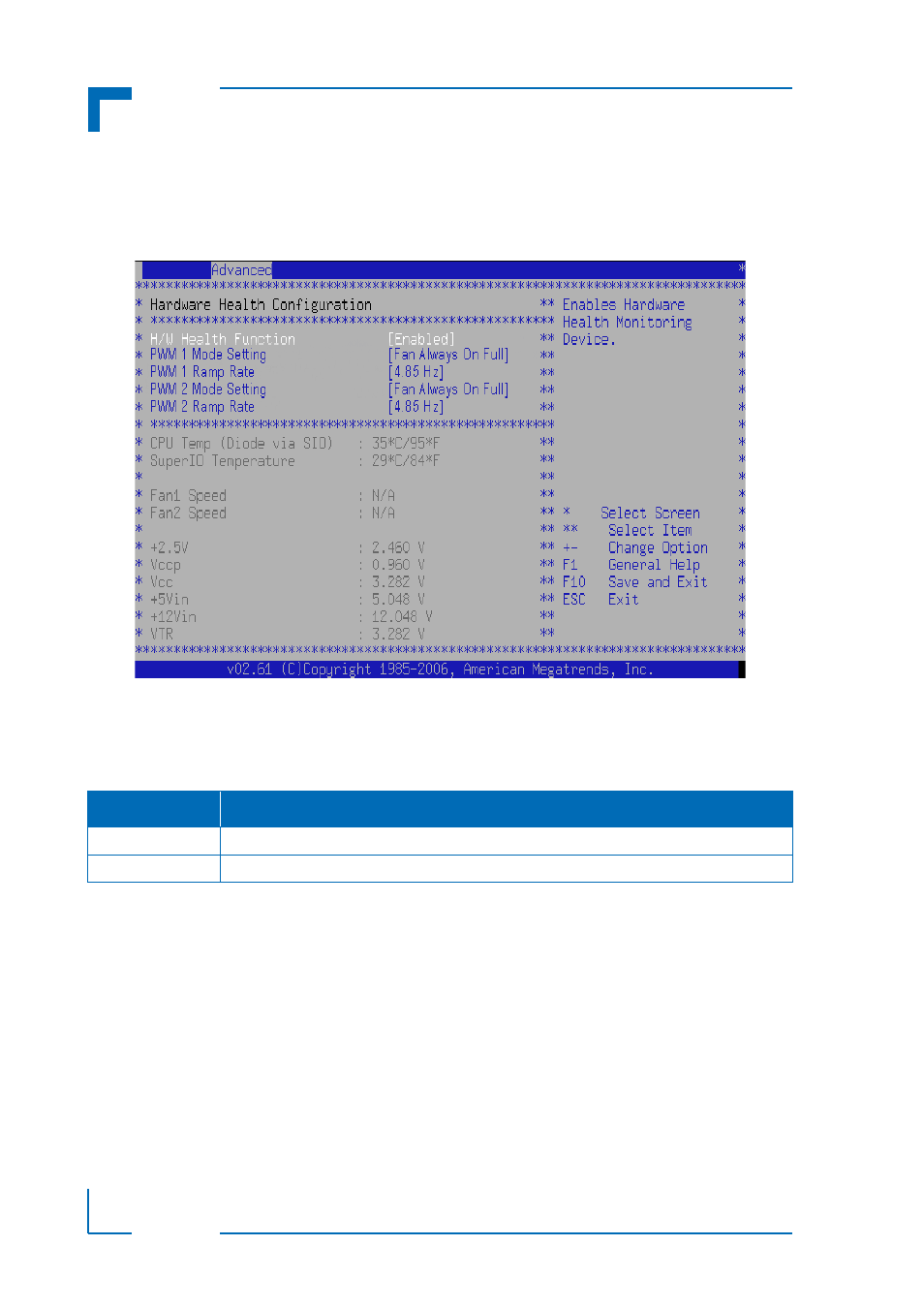

HARDWARE HEALTH CONFIGURATION SCREEN
This screen provides information about the hardware health attributes as well as functions for
specifying the hardware health configuration settings.
Hardware Health Function
This function has no effect on the operation of the CP307/CP307-V.
Optimal and Fail-Safe default settings: Enabled
PWM 1 Mode Setting/PWM 1 Ramp Rate
These functions are available only on the rear I/O board version and require additional hard-
ware to be installed. For further information on using these settings, please contact Kontron.
PWM 2 Mode Setting/PWM 2 Ramp Rate
These functions are not implemented on the CP307/CP307-V.
FAN 2 Speed
This display-only function has no effect on the CP307/CP307-V.
SETTING
DESCRIPTION
Disabled
Use this setting to disable the H/W Health Function.
Enabled
Use this setting to enable the H/W Health Function.
