11. Slide Rails (Option) KISS 2U V2 – User's Guide (Version 1.00)
11.
Slide Rails (Option)
Kontron provides slide rails for installing the KISS 2U V2 in a 19" industrial cabinet. These slide rails can be ordered
separately.
The KISS 2U V2 systems should be installed into a 19" industrial cabinet with slide rails (PN: 1016-
5807). Use therefore the rack slide rails mounting kit for KISS 1U and KISS 2U/4U V2 systems (PN:
1051-7200).
1 2
3 4

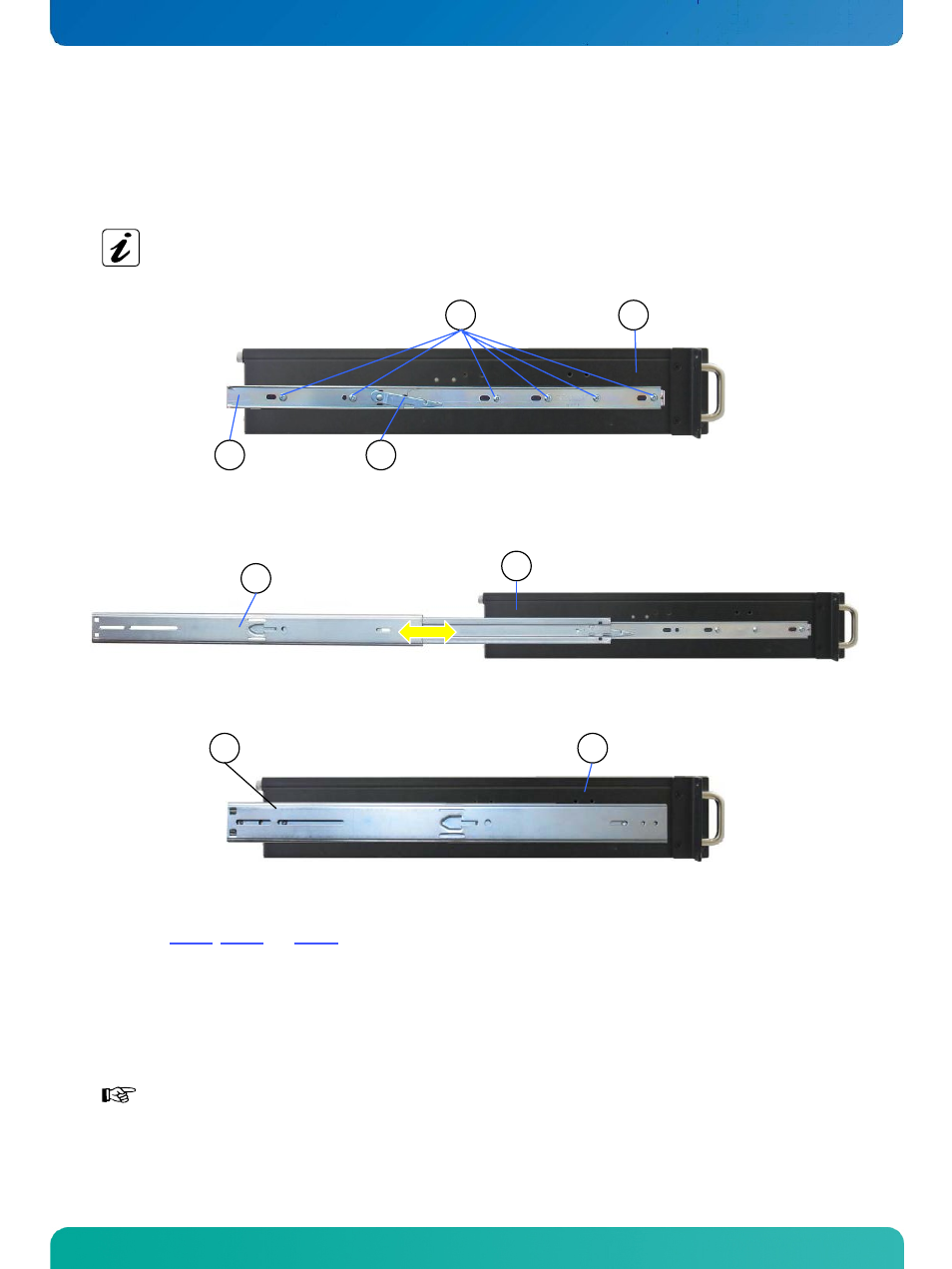

Fig. 49: Attached inner part of the slide rail (shown left side view of the KISS 2U V2 system)
5
1
Fig. 50: KISS 2U V2 platform with slide rail in pulled-out position
1 6
Fig. 51: KISS 2U V2 platform with slide rail in pushed-in position
Legend for: Fig. 49, Fig. 50 and Fig. 51:
1 Side view of the KISS 2U V2 4 Locking lever
2 6x M4x6 Philips screw
(on each side)
5 Slide rail in pulled-out position
6 Slide rail in pushed-in position
3 Inner part of the slide rail
Please ensure that only the screws provided (M4x6) are used to attach the slide rails to the KISS 2U V2.
