7. Product Description KISS 2U V2 – User's Guide (Version 1.00)
7.4. Installed Motherboard / SBC Card
Depending on the KISS 2U V2 platform configuration ordered, your system may be equipped with a motherboard or an
SBC card (
Single Board Computer).
For KISS 2U V2 versions and system configurations, please refer to the corresponding
“KISS 2U V2 Systems - Configuration Guides” on our website
www.kontron.com .
More information and technical data can be found in the corresponding board manual (motherboard or
SBC, depending on the system configuration ordered).
You can download the manual from our web site at
www.kontron.com by selecting the product.
7.5. System Configurations with SBC
13
1
2
3
4
5
6
7
11
10
9
8
7
12

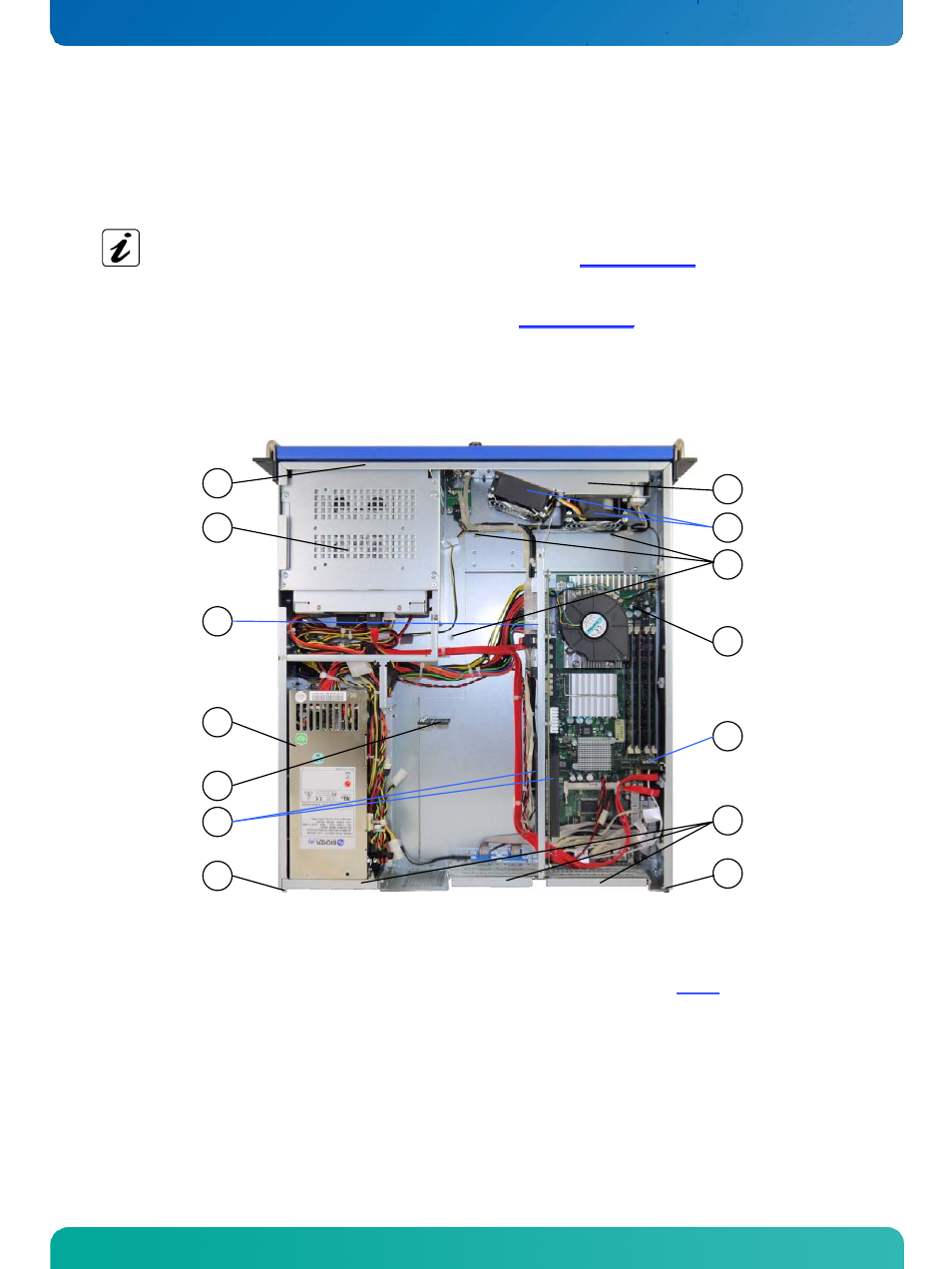

Fig. 28: KISS 2U V2 Configuration with PCI 760-SBC (Single Board Computer)
1 Cover retaining plate on the front side 8 Cover retaining plates on the rear side
9 Card hold down bracket (adjustable for long or
short expansion cards; see
2 L1 and L2: drives bays (stacked one above the
other into a drive cage)
Fig. 27, pos. 3)
10 SBC card 3 Retaining bracket for the butterfly-backplane (not
provided at system configuration with low profile
cards)
11 Fastening screws for the card cage (expansion
cards)
4 Power Supply Unit (PSU)
12 Fans (of the fan slide-in-module)
5 Card holder 13 Fan slide-in-module with two fans
6 Butterfly-backplane for SBC cards
7 Centring latches for the cover at the rear side
