10. Maintenance and Prevention KISS 2U V2 – User's Guide (Version 1.00)
10.
Maintenance and Prevention
Kontron Europe systems only require minimal maintenance and care to keep them operating correctly.
‰ Occasionally wipe the system with a soft dry cloth.
‰ Remove persistent dirt by use of a soft, slightly damp cloth (only use a mild detergent).
‰ Clean the air filter mat regularly (refer to the section 10.2 “Cleaning the Filter Mat”).
10.1. Replacing System Fans
The operation of the KISS 2U V2 platform is permitted only with a functional fan slide-in module.
Defective components may be replaced only by Kontron original spare parts.
‰
part number of the fan slide-in module: 1050-8442
Important instructions!
The fan slide-in module is changeable while the system is powered-up. This maintenance may only be
carried out by qualified personnel familiar with the associated dangers.
To replace the fan slide-in module, proceed as follows:
1.
Remove the air filter mat as described in the section 10.2 “Cleaning the Filter Mat” (step 1 to 3) and put it aside for
later use.
2. Loosen the two knurled screws of the fan slide-in module (Fig. 38, pos. 1)
3. Pull the fan slide-in module out to disconnect it from the internal fan control socket (Fig. 39, pos. 3).
4. Lift the slide-in module upwards in the arrow direction to remove it from the fan compartment (see Fig. 39).

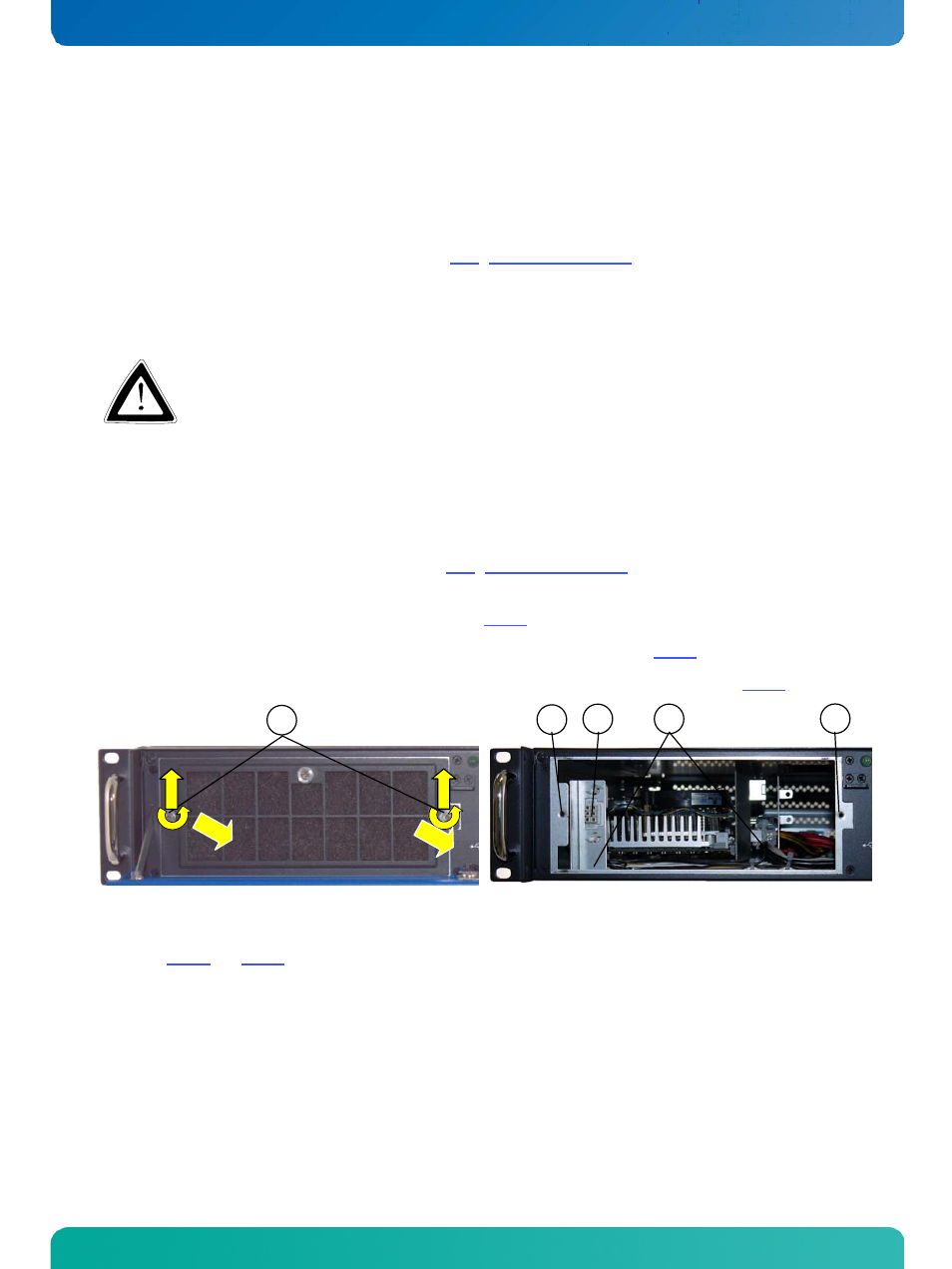

Fig. 38: Detail: removing the fan slide-in module Fig. 39: Detail: Fan compartment (without fan slide-in module)
Legend for Fig. 38 and Fig. 39:
1 Fan slide-in module with two knurled screws
2 Threaded holes (chassis frame) for securing the fan
slide-in module
3 Socket for fan power supply and control
4 Fan compartment
3 4 2 2 1
1
2
1
2
