7. Product Description
KISS 2U V2 – User's Guide (Version 1.00)
7.2.3.1.
External Interfaces of the KTQ45/Flex Motherboard
A detailed ports description can be found in the manual of the installed motherboard. You can download
the corresponding manual fr
by selecting the product.
7
6
2
1
3
5
4

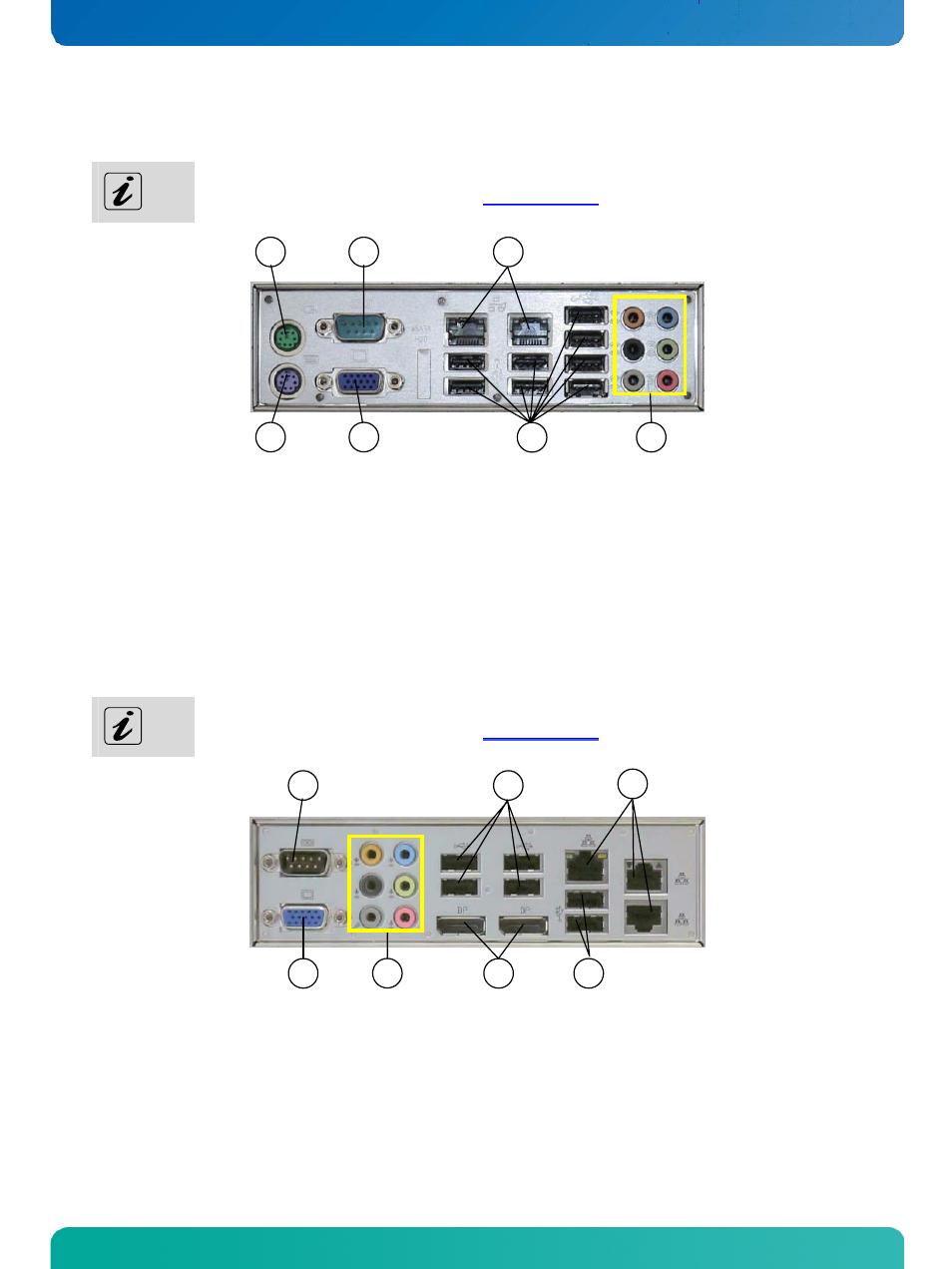

Fig. 19: External ports of the KTQ45/Flex motherboard
1 PS/2 mouse port (green)
2 Serial port (RS232)
3 2x Ethernet ports (RJ45),
(10/100/1000 Mbps)
4 Audio connectors (6.1)
5 6x USB(2.0) ports
6 VGA port
7 PS/2 keyboard port (purple)
7.2.3.2.
External Interfaces of the KTQ67/Flex Motherboard
A detailed ports description can be found in the manual of the installed motherboard. You can download
the corresponding manual fr
by selecting the product.
3
1
6
2
5
4
2
Fig. 20: External ports of the KTQ67/Flex motherboard
1 Serial port (RS232)
2 6x USB (2.0) ports
3 3x Ethernetport (RJ45),
(10/100/1000Mbps)
4 VGA port
5 Audio connectors (6.1)
6 Display Port (DP)
