7. Product Description KISS 2U V2 – User's Guide (Version 1.00)
7.6. System Configuration with Motherboard
13
1
2
3
4
6
7
11
10
9
8
7
12
5

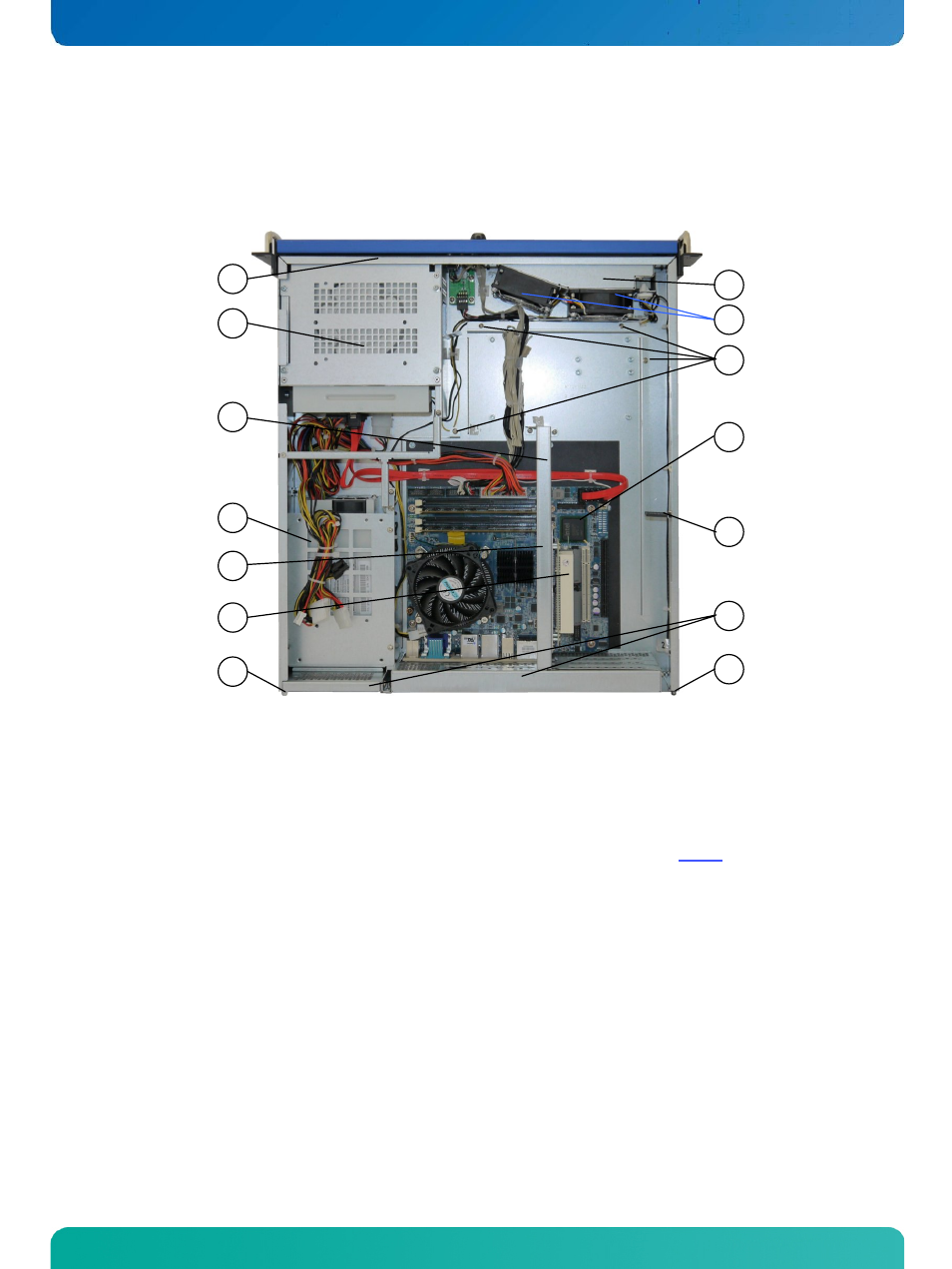

Fig. 29: KISS 2U V2 - Configuration with KTQ45/Flex motherboard
1 Cover retaining plate on the front side 7 Centring latches for the cover at the rear side
8 Cover retaining plate on the rear side 2 L1 and L2: drives bays (stacked one above the
other into a drive cage)
9 Card hold down bracket (adjustable for long or
short expansion cards; see 3 Retaining bracket for the butterfly-backplane (not
provided at system configuration with low profile
cards)
Fig. 27, pos. 3)
10 Motherboard
11 Cage for motherboard and expansion cards
4 Power Supply Unit (PSU)
12 Fans (of the fan slide-in-module)
5 Retaining bracket for the riser card (not provided
at system configuration with low profile cards) 13 Fan slide-in-module with two fans
6 Riser card for expansion cards
