Installing the KPA3 Shield

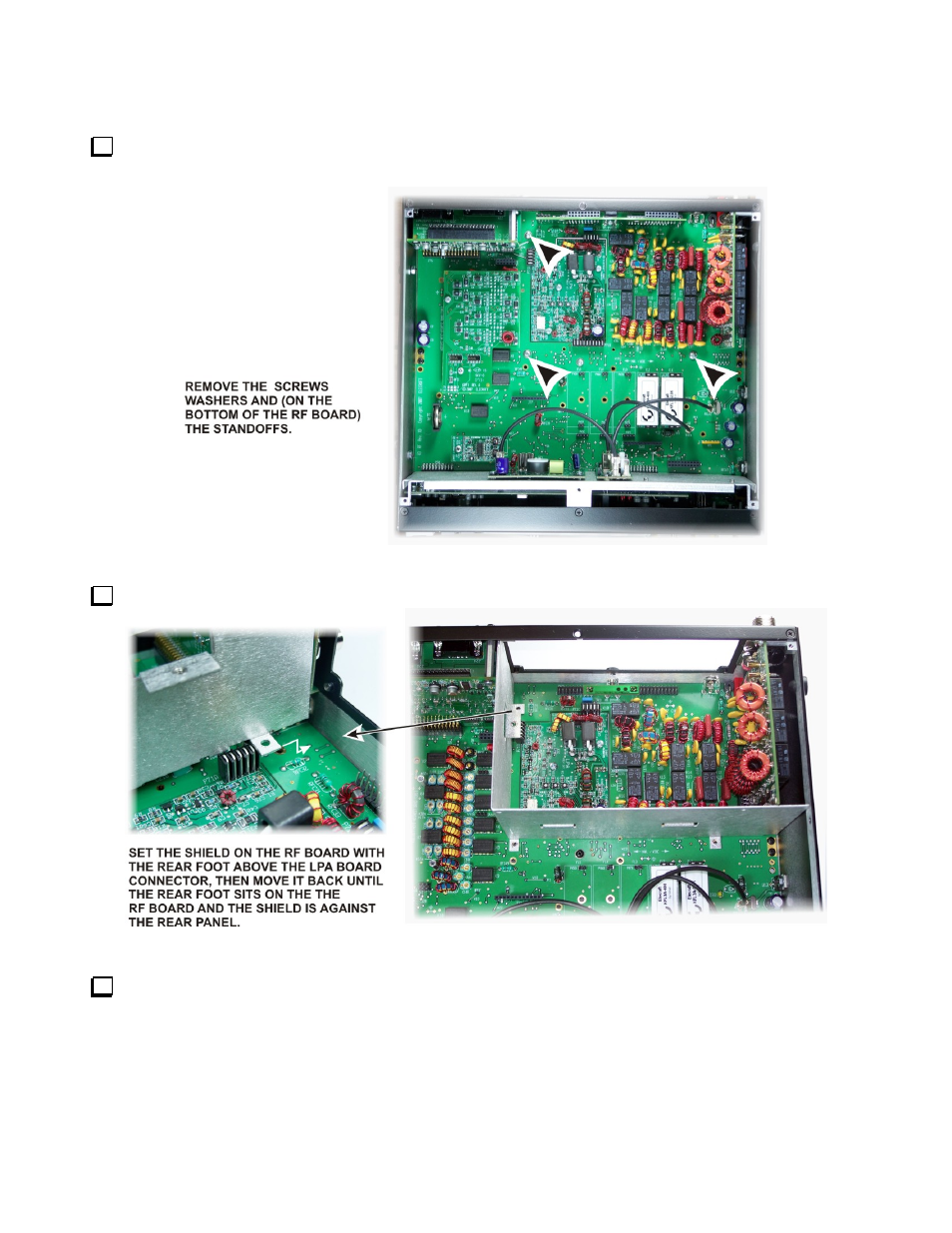

Remove the three screws, washers and standoffs (on the bottom of the RF) board shown in Figure 6. Save
the lock washers and standoffs. The screws will not be reused.
Figure 6. Rear Shield Mounting Screw Locations.
Set the rear shield in place as shown in Figure 7.
Figure 7. Positioning the Rear Shield.
Loosely secure the rear shield with three 1/4” (6.4 mm) zinc pan head screws, the lock washers and
standoffs you removed earlier as shown in Figure 8.
