Anchoring the second ladder, Step 11) perimeter seal, Fig. 43 – EFCO 945 Series User Manual
Page 35: Con’t), Step 10) anchoring the second ladder, Head (w/ strap anchor), Jamb, Head (w/o strap anchor)
The same action is required for outside glazed and
structural glazed mullions also. Make sure that the
face covers are installed prior to the perimeter seal
for these members. This step will be completed
after glass installation.

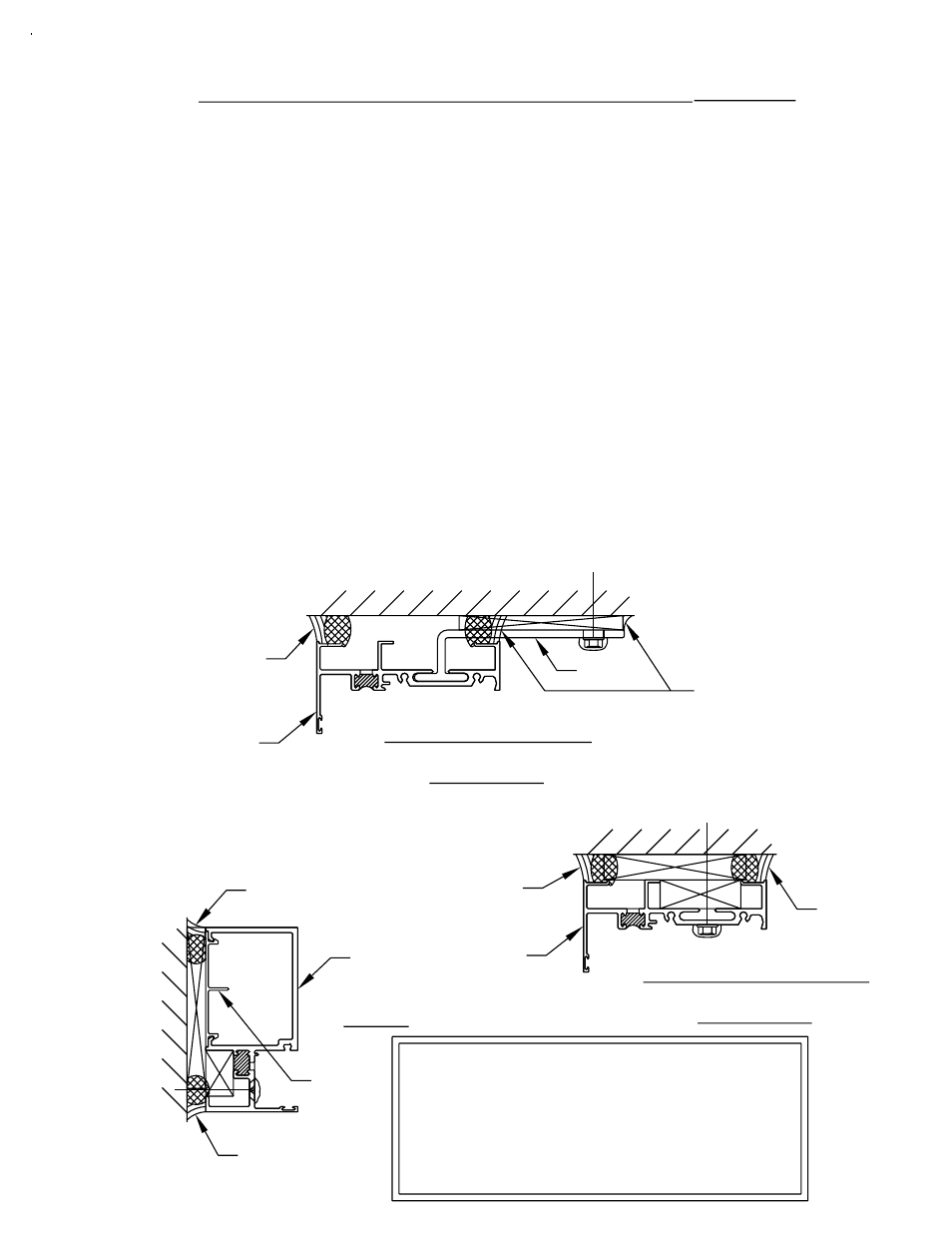

When the unit is installed and anchored, begin placing caulk rope into the gap
between the perimeter and the frame. Then apply a generous amount of silicone
type sealant to the gap between the frame and rough opening. Tool off all excess
sealant to ensure a good seal and to achieve an appropriate appearance. See
Figure 43.
STEP 11) PERIMETER SEAL
HEAD (W/ STRAP
ANCHOR)
SEALANT
[FIG. 43]
SEALANT
8310
8307
JAMB
SEALANT
SEALANT
8300
HEAD (W/O STRAP
ANCHOR)
8300
BAB 11/2000
SEALANT
SEALANT AROUND
ANCHOR AND AT
PERIMETER
FT46
SECTION VIII - INSTALLATION
(CON’T)
INCLUDES CAPTURED AND STRUCTURAL GLAZED MULLION SYSTEMS
STEP 10) ANCHORING THE SECOND LADDER
After the filler is snapped correctly, anchor the head and jamb as shown on
Pages 27 and 28.
PAGE 33
