SECTION VIII - INSTALLATION

(CON’T)

CONDITION

LADDER

[FIG. 36]

INCLUDES CAPTURED AND STRUCTURAL GLAZED MULLION SYSTEMS

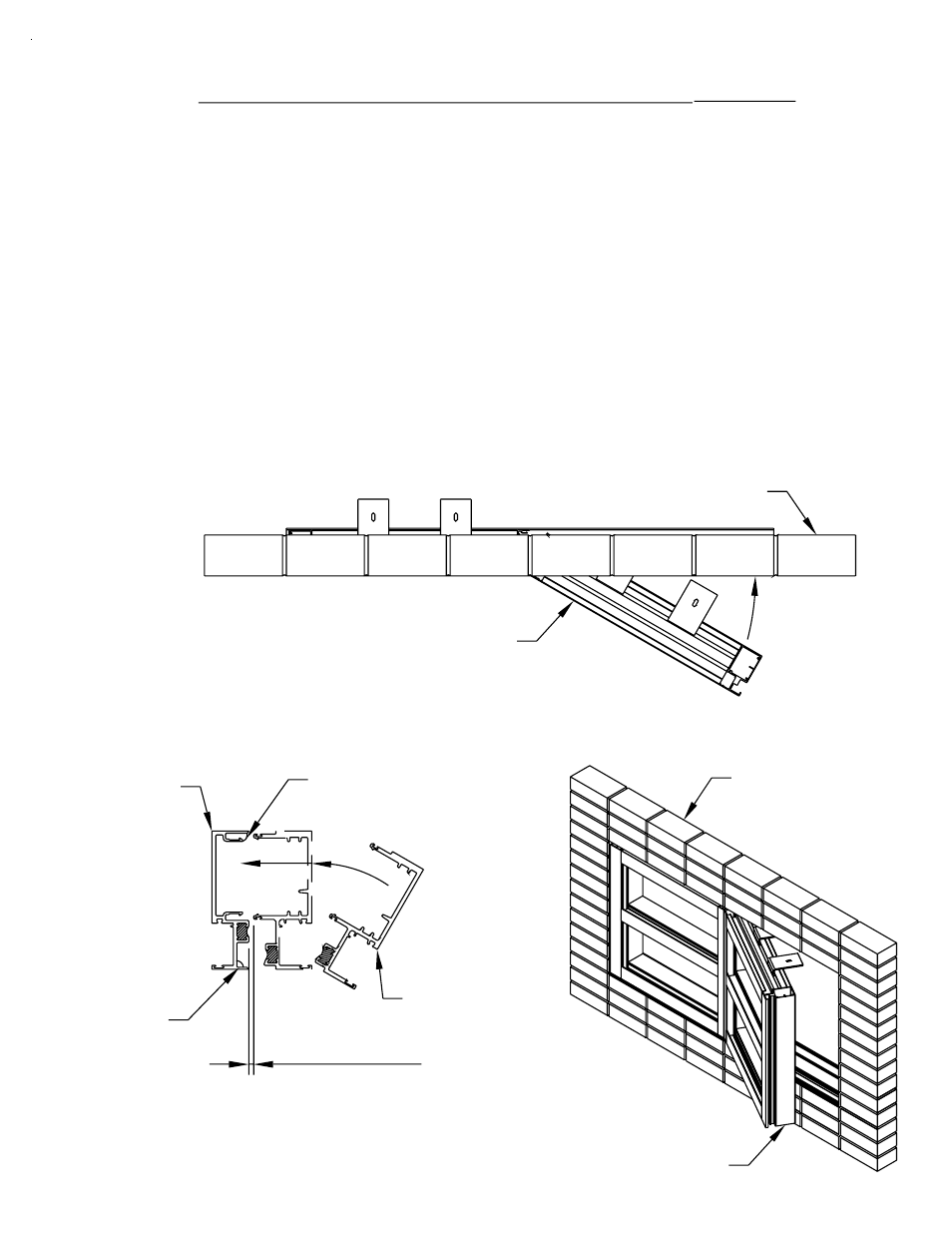

STEP 7) INSTALLING THE SECOND LADDER

(CAPTURED SYSTEM SHOWN, STRUCTURAL GLAZED SYSTEM SIMILAR)

Make sure that the anchors are installed into the head. Apply silicone type

sealant to the interior leg clip 6" from the subsill, and seal the entire exterior face as

shown in Figure 37. Apply sealant to the subsill as shown on Page 25. Place the

second ladder on the subsill at an approximate 30˚ angle. Rotate the ladder into the

condition approximately 1/4" away from the female expansion mullion half. See

Figures 36 and 38.

[FIG. 37]

[FIG. 38]

LADDER

SEAL

ENTIRE

JOINT

SEALANT 6" UP

FROM SILL END

CONDITION

BAB 11/2000

APPROX. 1/4"
