EFCO S5600 Inside Glazed User Manual
Page 5

EFCO CORPORATION 6/2012 PART NO. Y304
Page 5 of 29

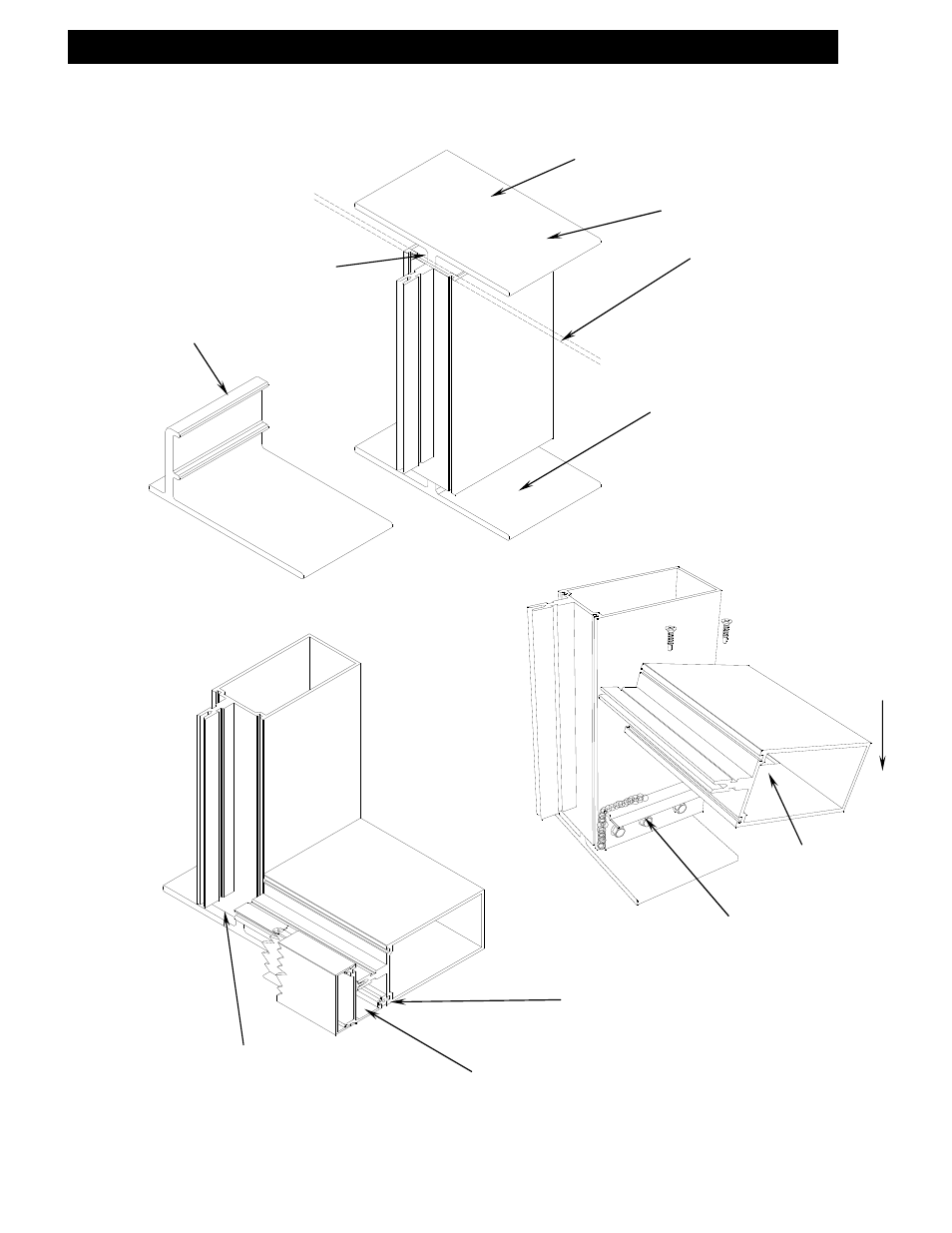

Series 5600 Inside Glazed Installation Instructions
Section II: Mullion Anchors
Anchor at head allows for movement
(refer to shop drawings)
“T” Anchor at Intermediate mullion
Line of critical perimeter
sealant is shown dotted
Type, Size, and Location of anchor
bolts as shown on shop drawings
per structural requirements
The erector must supply and apply bond
breaker tape across the face of the
anchor to prevent three-sided adhesion
“F” Anchor at
jamb condition
Notch sill members to
clear the shear block
and anchor heads
Shear block
[See Note page #11]
Continuous sealant
Bottom of
mullion
Perimeter pressure plate with
filler.
