EFCO CORPORATION 6/2012 PART NO. Y304 Page 21 of 29
Series 5600 Inside Glazed Installation Instructions
Section X: Glazing Installation

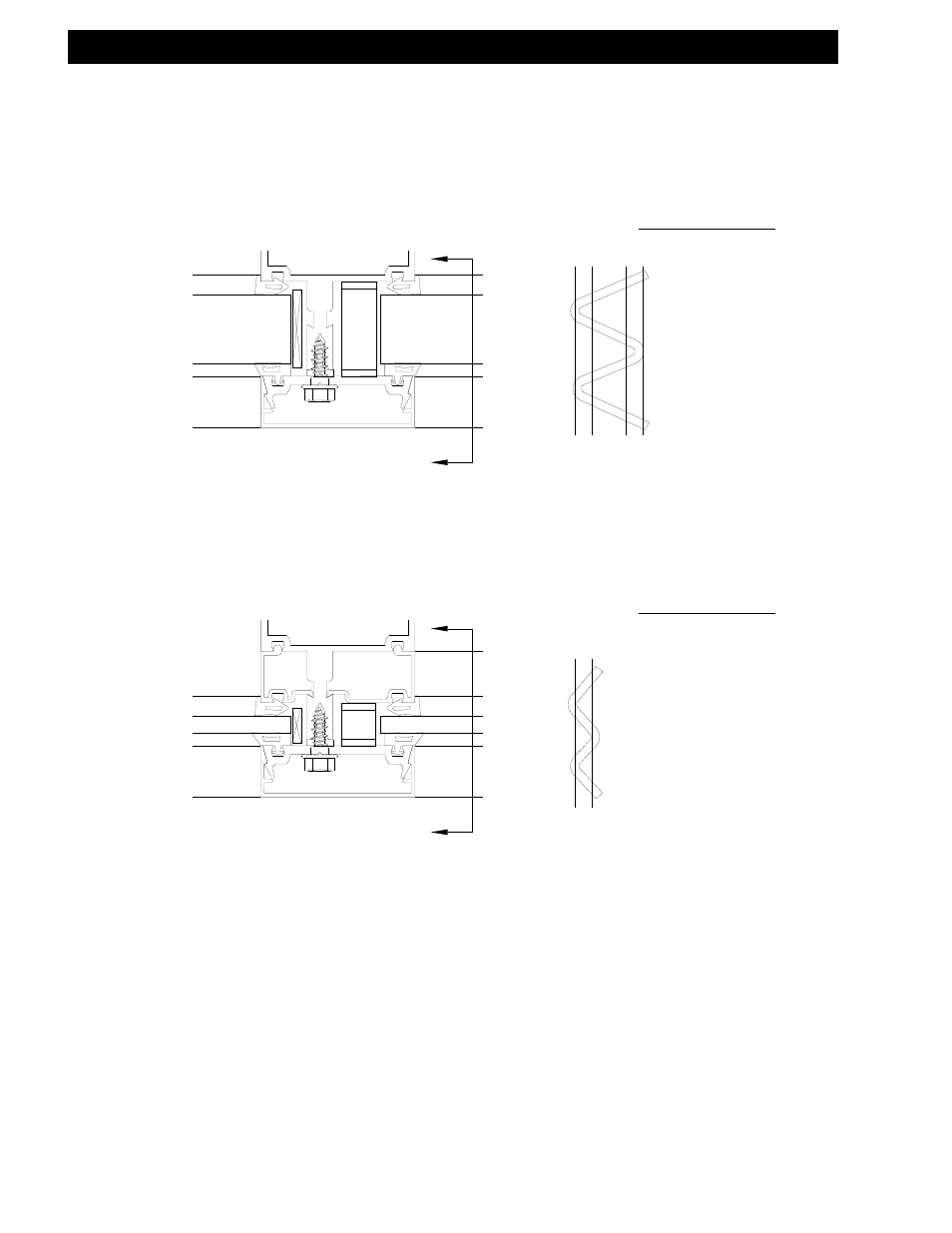

SECTION "B-B"
SECTION "A-A"
B
B
A
A
Step #8 Install Side Blocks
A.) Install and position side blocks in the jamb pocket cavity at the approximate midpoint as indicated.
“W” type jamb spacer
block at approximate
midpoint of glass D.L.O.
1” Insulated Glass
“W” type jamb spacer
block at approximate
midpoint of glass D.L.O.
¼” Glass
