EFCO S5600 Inside Glazed User Manual
Page 13
EFCO CORPORATION 6/2012 PART NO. Y304
Page 13 of 29
Series 5600 Inside Glazed Installation Instructions
Section VIII: Frame Assembly – Head Horizontal
Head Horizontal
Head Horizontal
Head Horizontal

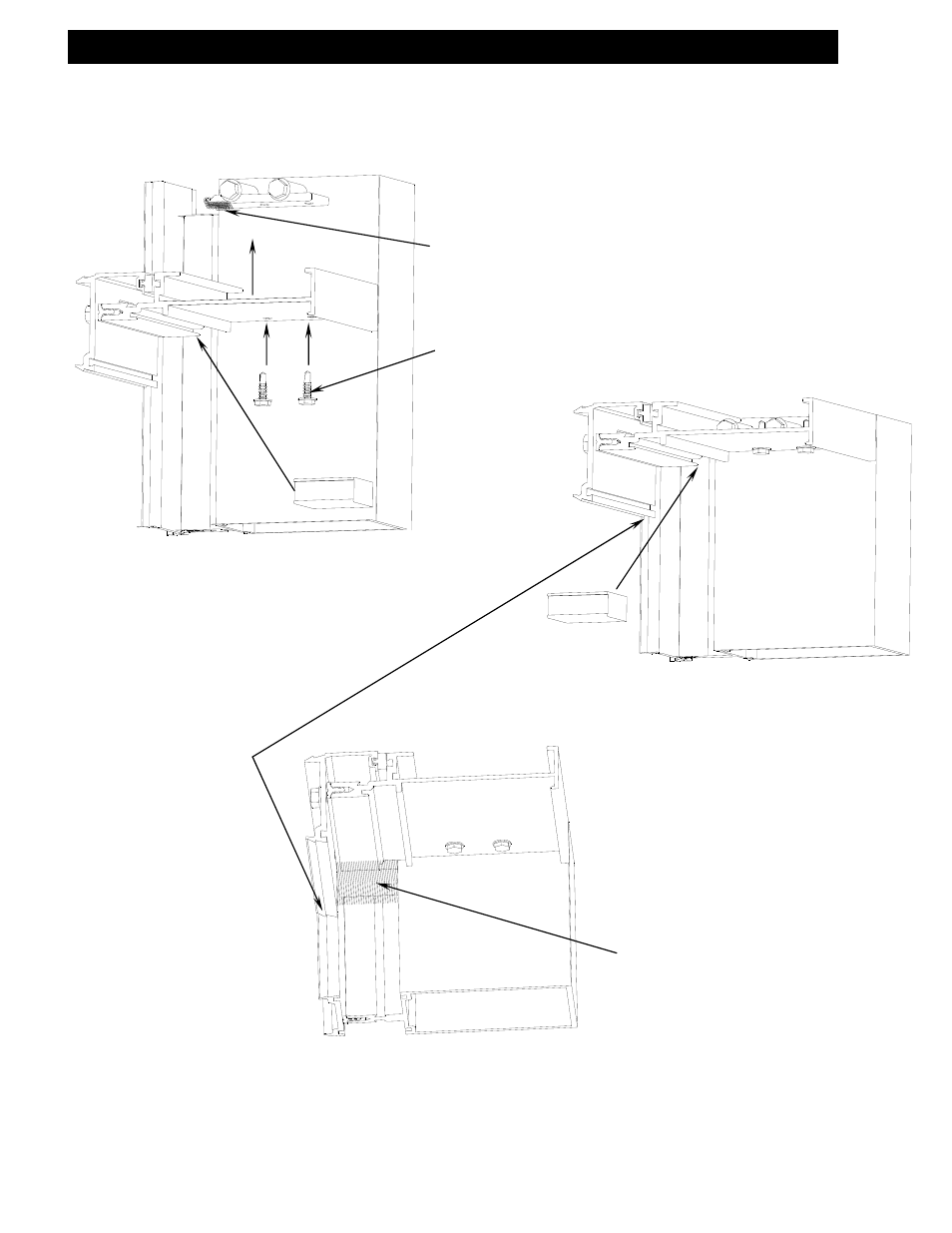

#8X ¾” HWH TEK
Apply joint plug.
Apply mullion covers prior
to glazing if desired.
Seal the horizontal pressure
plate to the vertical
pressure plate so they are
air and water tight.
Apply sealant to the face of
the shear block at each
horizontal mullion
Tool sealant over the top
and bottom of the joint plug.
