EFCO CORPORATION 6/2012 PART NO. Y304 Page 17 of 29
Series 5600 Inside Glazed Installation Instructions
Glazing Infill Thickness
¼”
5/16”
½”
9/16”
1”
1 ¼”
1 5/16”
Shallow Pocket Deep Pocket
X X
X X
X X
X X
X X
* See Note Below
* See Note Below
Exterior Preset Interior Wedge
X X
X X
X X
X X
X X
X X
X X
Section IX: Glazing Preparation

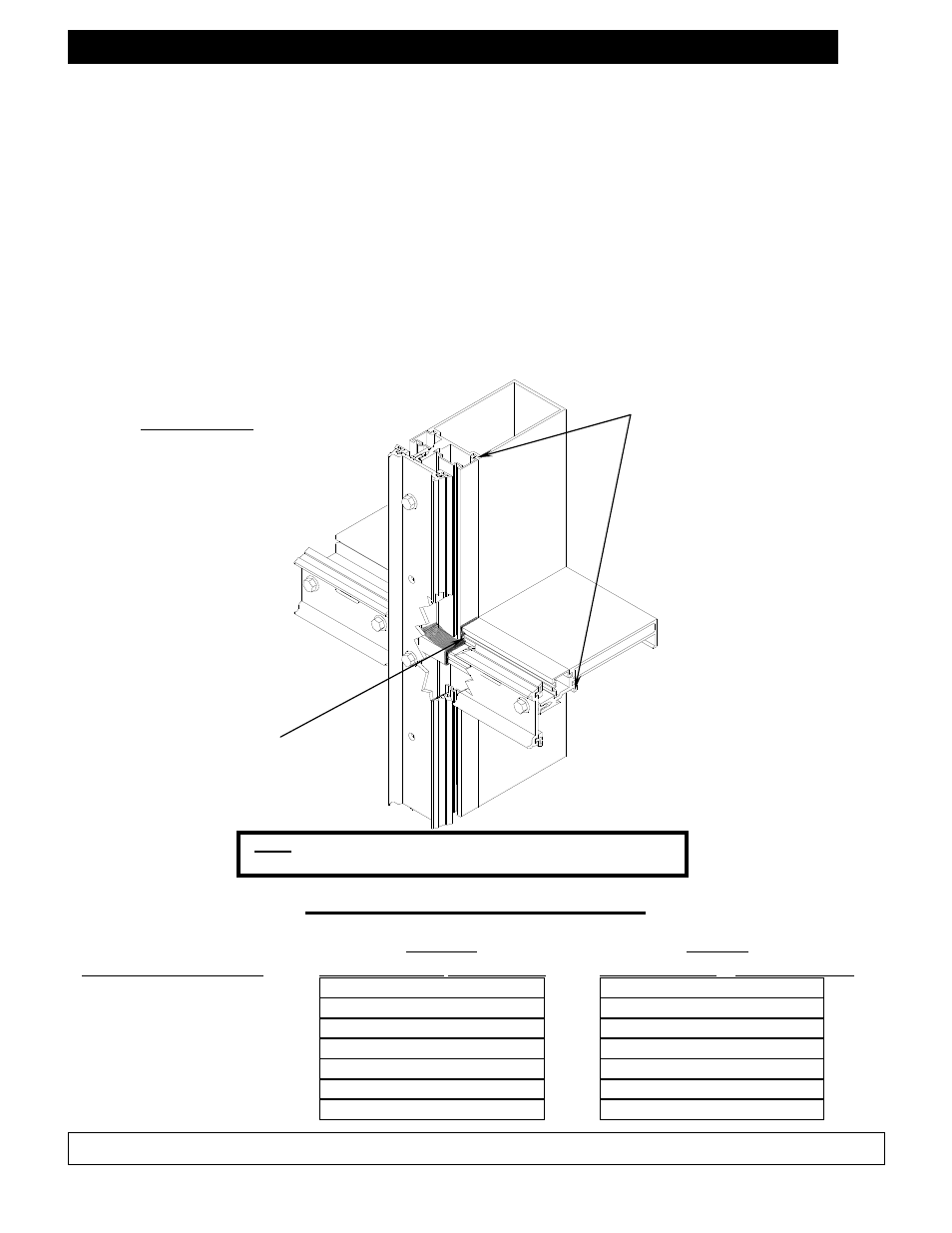

Step #4 Install Glazing Adaptors
A.) Prior to installing the glazing adaptors, seal the entire gasket raceway with sealant.
B.) Snap glazing adaptors in place into sealant starting with the verticals. Allow at least
1/8” clearance from the bottom of the glazing adaptor to the top of the joint plug to
allow for weepage.
C.) Butter the ends of the horizontal adaptors prior to setting into position. Snap horizontal
adaptors in place between the vertical adaptors. Face seal the adaptor intersection
with sealant. Tool all sealant joints and remove any excess.
Glazing Combinations
Adaptors Gaskets
1-1/4” & 1-5/16” Glazing infill requires a NON-Standard pressure plate to be used .
Note: Vertical adaptors will need clearance above the
joint plug, free from sealant, for weepage.
1/8” Clearance required for weepage
CUT FORMULA
Vertical = D.L.O. + 1”
Horizontal = D.L.O. – 1/16”
Continuously seal the gasket
raceway with sealant prior to
installing the adaptors
Butter ends
of adaptor
