EFCO CORPORATION 6/2012 PART NO. Y304 Page 28 of 29
Series 5600 Inside Glazed Installation Instructions
Section XII: Exterior Cover Installation
Step #2 Secure Exterior Covers
A.) On vertical covers 1” in depth and over, it is necessary to install a 1/16” X 5/16” roll
pin at the horizontal cover locations to prevent slippage.

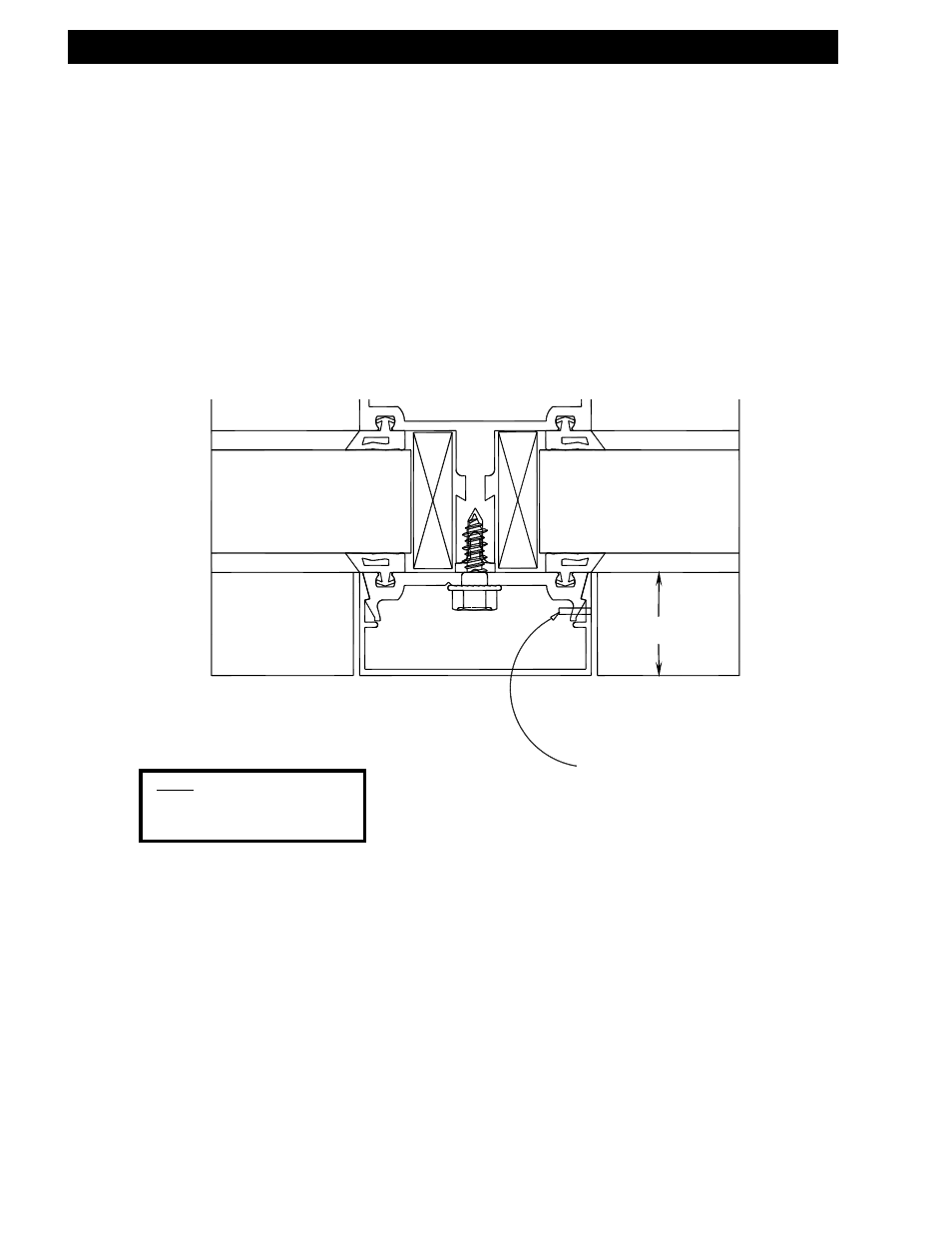

B.) On horizontal covers 1” in depth and over, it is necessary to mechanically attach the
cover to the pressure plate similar to what is shown below to insure against
disengagement of cover from pressure plate.
1/16” X 5/16” Roll Pin at the
center of the cut length is
recommended to prevent
slippage. The roll pin can
be located at the horizontal
to eliminate exposure
1” and up.
Note: Horizontal covers with
a depth of more than 1” are
to be mechanically attached.
