EFCO S5600 Inside Glazed User Manual
Page 16
EFCO CORPORATION 6/2012 PART NO. Y304
Page 16 of 29
Series 5600 Inside Glazed Installation Instructions
Section IX: Glazing Preparation
E.) Seal all gasket corners and butt joints as indicated below.
Intermediate Horizontal
(Head and Sill Similar)
Step #3 Install Setting Blocks
A.) Position and install setting blocks as directed on the approved shop drawings.

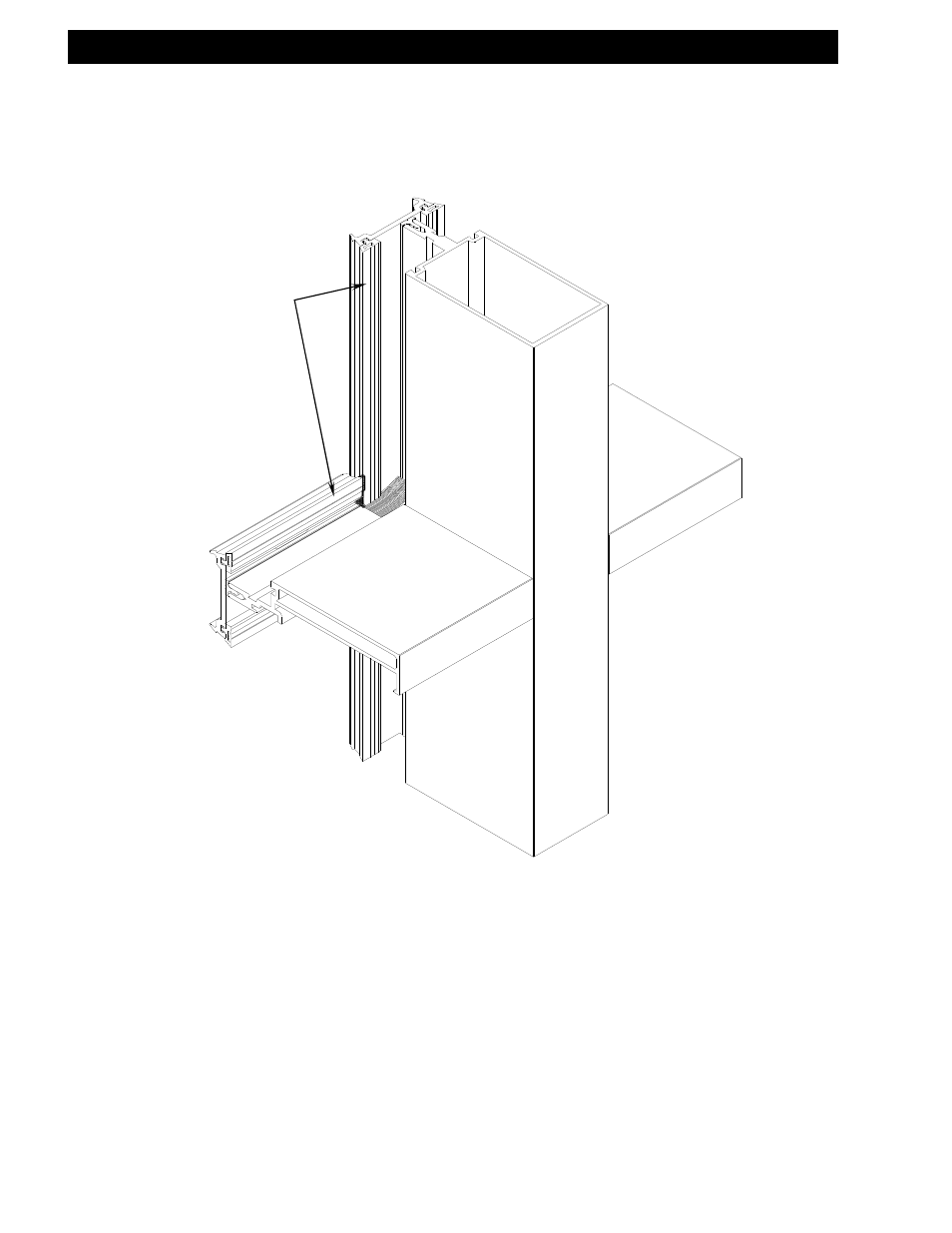

Preset Gaskets
To insure a snug fit, seal all gasket
corners by pulling the horizontal
gasket back, sealing the ends, and
pressing into the vertical gasket
