EFCO S5600 Inside Glazed - Manual (Page 12)

EFCO CORPORATION 6/2012 PART NO. Y304 Page 12 of 29
Series 5600 Inside Glazed Installation Instructions

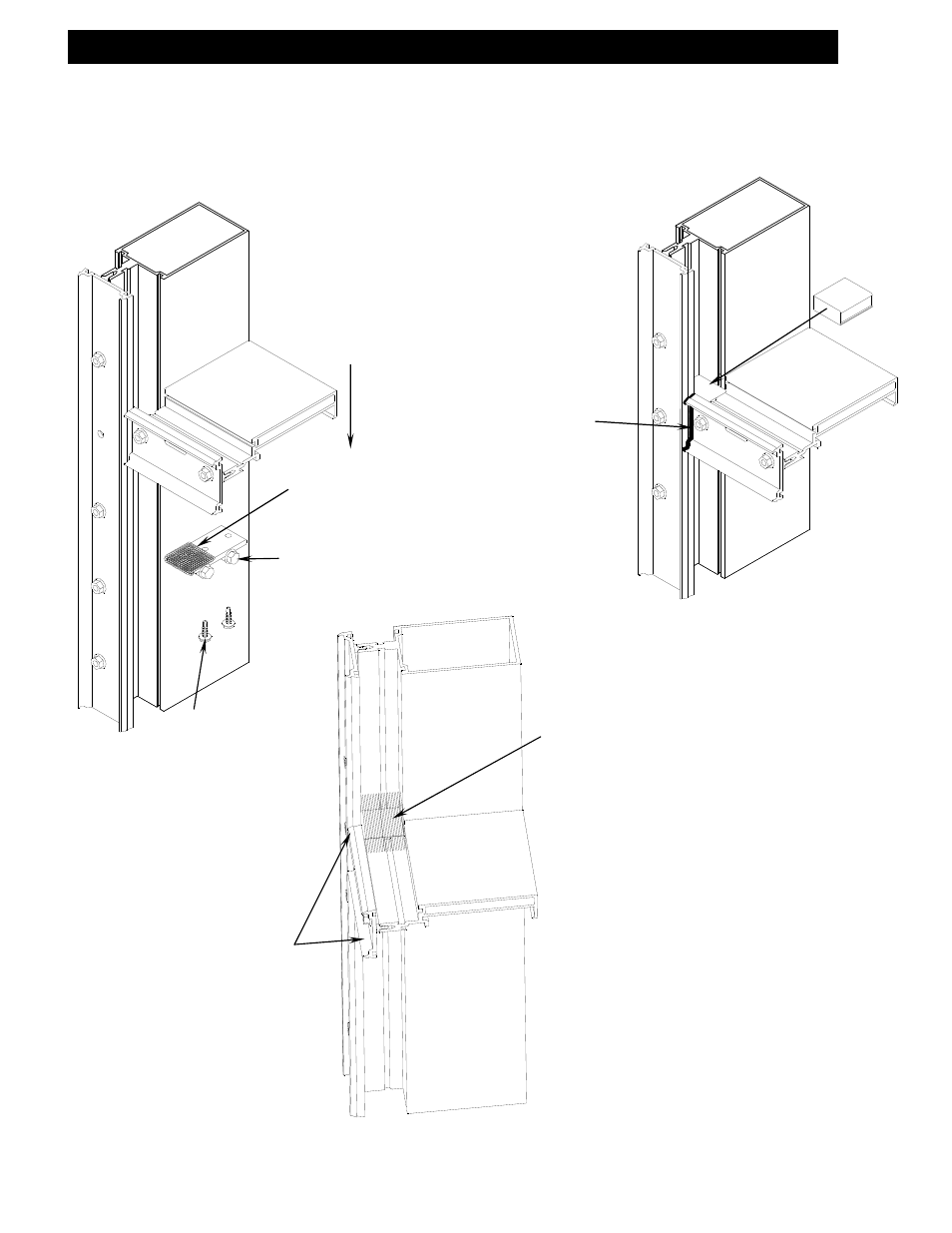

Section VII: Frame Assembly - Intermediate Horizontal
Apply sealant to the face of
the shear block at each
horizontal mullion
#8X ¾” HWH TEK
¼” X 1 ¼” HWHSMS
Intermediate
Horizontal
Intermediate
Horizontal
Intermediate
Horizontal
Apply joint plug.
See below
Optional: Mullion covers
may be applied prior to
glazing if desired.
Tool sealant over the top
and bottom of the joint plug
Seal the horizontal pressure
plate to the vertical
pressure plate so they are
air and water tight.
