EFCO CORPORATION 6/2012 PART NO. Y304 Page 23 of 29
Series 5600 Inside Glazed Installation Instructions
Section X: Glazing Installation
Re-glaze of Spandrel Glass From Exterior
A.) Remove the broken or damaged glass and gasket material.
B.) Remove the pressure plate at the top of the glass lite. See FIG. “D”.
C.) Re-install the preset gasket to the interior side of the glass pocket.
(Replace the gasket if damaged).
D.) Set the replacement glass down on top of the pre-located setting blocks and tight
against the preset gasket.
E.) After the glass is in the final position, apply the pressure plate and face cap to the
horizontal at the top of the lite. Reseal all joints as shown on page 16. Apply the
drive-in wedge to the exterior side of the glass.

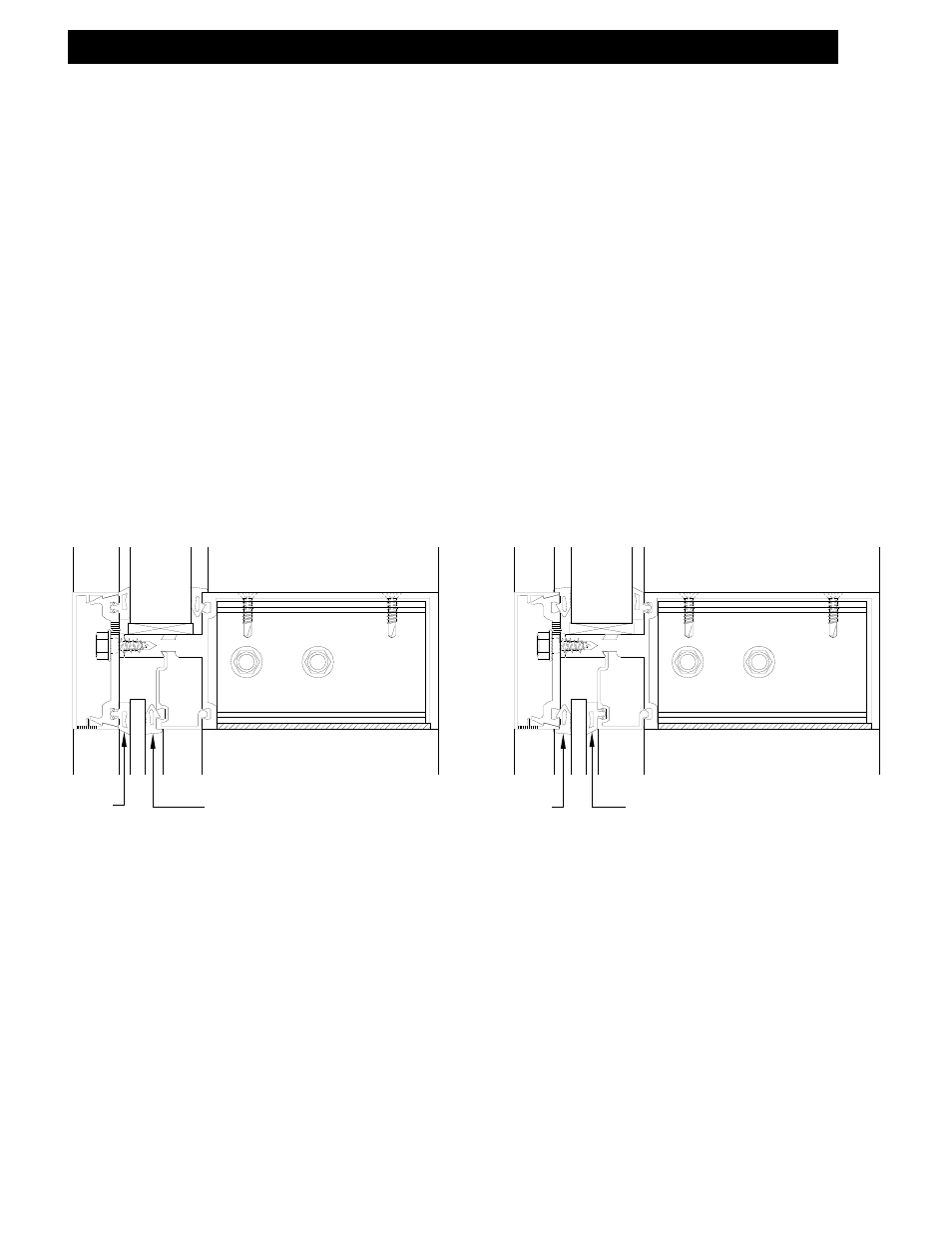

Preset Drive-In Drive-In Preset
Before Re-glaze
After Re-glaze
