EFCO S5600 Inside Glazed - Manual (Page 19)

EFCO CORPORATION 6/2012 PART NO. Y304 Page 19 of 29
Series 5600 Inside Glazed Installation Instructions
Section X: Glazing Installation

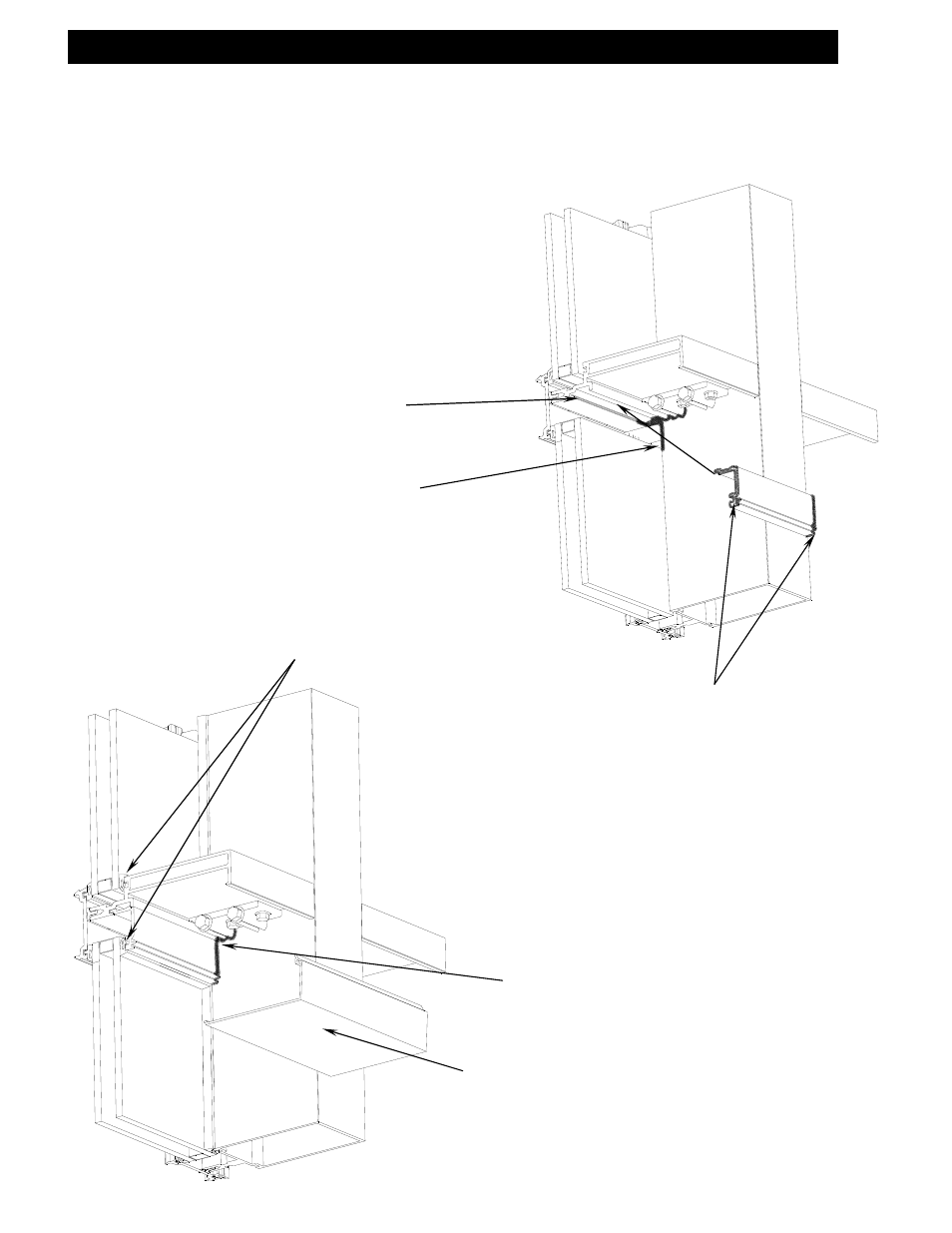

Apply a small bead of
sealant in the bead reglet
Butter the side of the mullion
where the glazing bead comes
into contact with sealant
Intermediate Horizontal
Intermediate Horizontal
Step #4 Install Interior Cover
Thoroughly apply sealant to
the ends of the glazing bead
Step #3 Install Wedge Gasket
Snap the interior cover into place
Tool sealant into joint
Drive the wedge gaskets into
position starting at the center
of the D.L.O. Crowd in the
excess at the ends
Step #2 Install Glazing Bead
