Loading the Vehicle
Use the following steps to load a vehicle on the dyno.
1. Verify your computer is running. Set the dyno brake on by
pressing the red button on the hand held pendant.
2. Drive the vehicle onto the dyno and align the vehicle straight
with the dyno.
3. Stop the vehicle when the drive axle is centered on the drum.
4. When the vehicle is positioned properly on the dyno, shut the
engine off.
• If the vehicle has an automatic transmission, place it in
park.
• If the vehicle has a manual transmission, place it in gear.
5. Secure the non-drive wheels using the provided tire chocks.
Do not use tire chocks for four wheel drive vehicles.
6. Attach two tie-down straps from the anchor points on the
dyno to the rear of the vehicle.
7. Attach two tie-down straps from the anchor points on the
dyno to the front of the vehicle.
Note: If you are running an all wheel drive ATV, use
differential jacks to get the front wheels off the dyno.

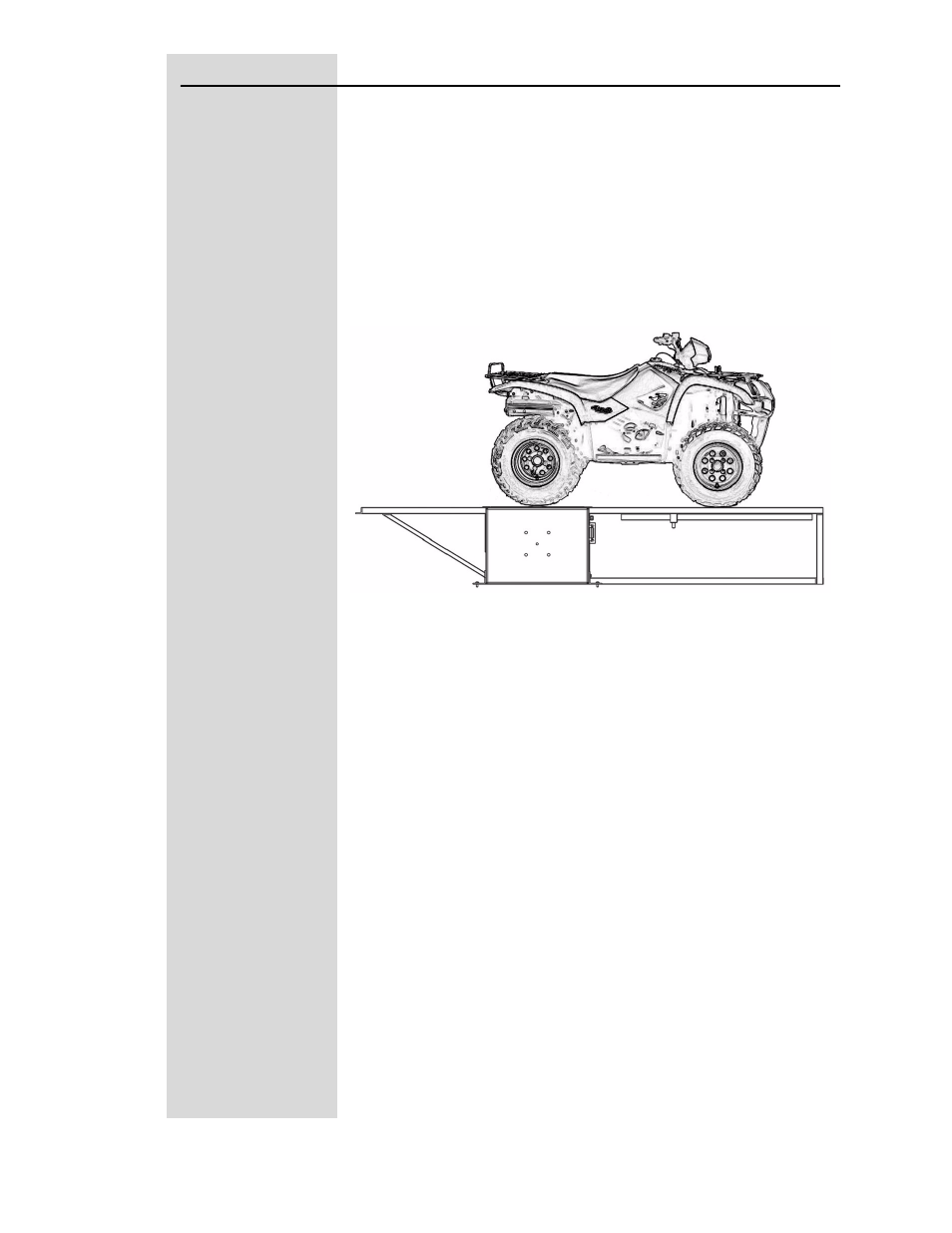

center drive axle
on dyno drum
