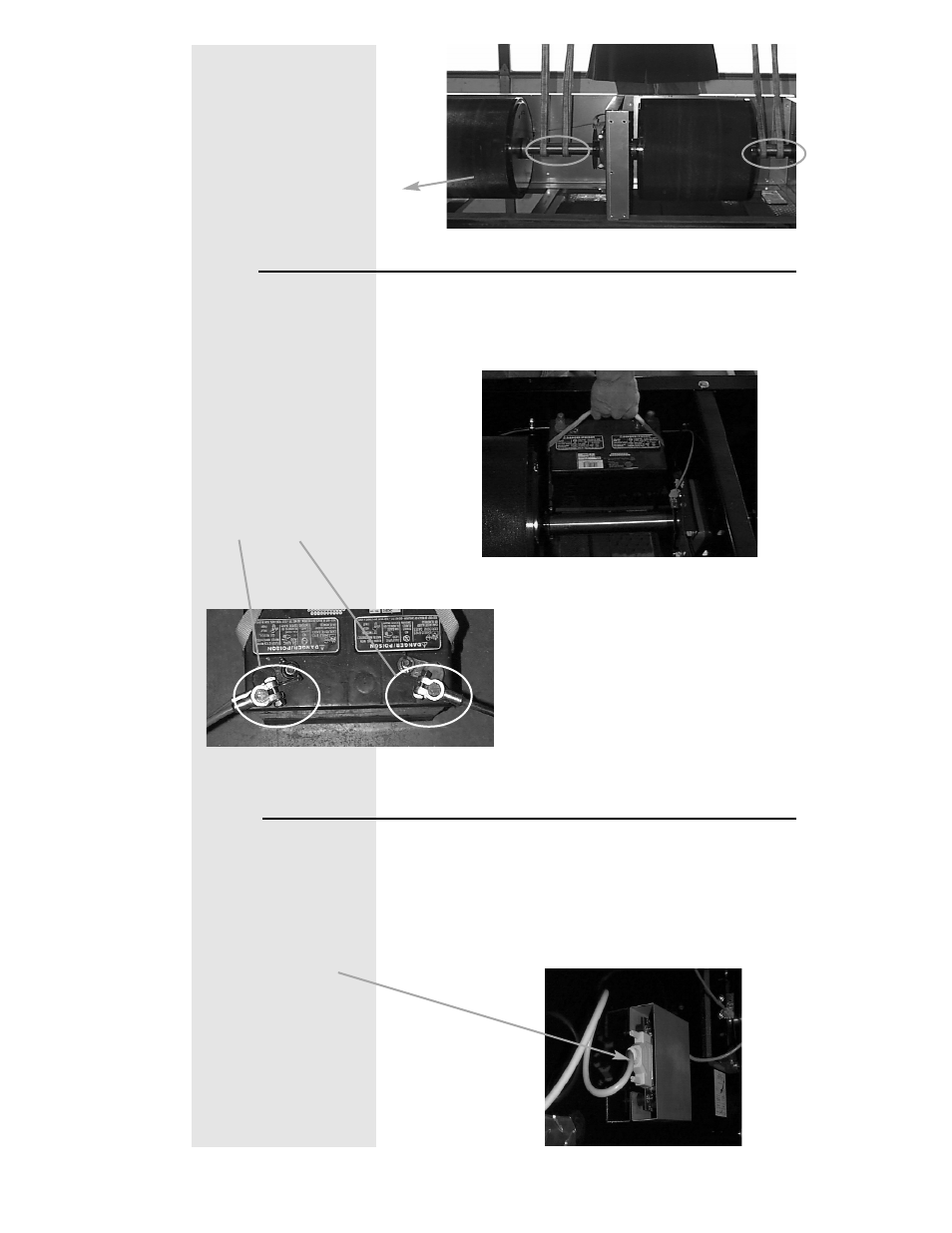

Install the Battery
Install the battery in the battery carriage as shown
below:
Install the red battery cable to the
positive post, and the black cable on
the negative post
Connect the Dyno to the DynoWare EX+
Connect the 25 pin data acquisition cable into the
breakout board and hand tighten the screws, as
shown below:
Back panel removed for
illustration purposes
+ -
25 Pin Data
Acquisition Cable
from the Dynoware
Hardware Stack
