Final Assembly
Step 1
Secure the dyno to a concrete floor with the
supplied “Red Head Anchor Kit”.
Š The feet come bolted on the dyno frame.
Mark the (4) holes and then remove the
feet.
Š Using a carbide bit designed for concrete
(see instructions included with anchors) ,
drill four 1/2” holes in the floor where you
made your marks. The holes should ideally
be as deep as the length of the anchors
(approx. 1 5/8”).
Step 2
Place the slotted end of the anchors in the holes
that you drilled. They will most likely be very
snug, so use a brass drift punch and hammer to
drive them down.

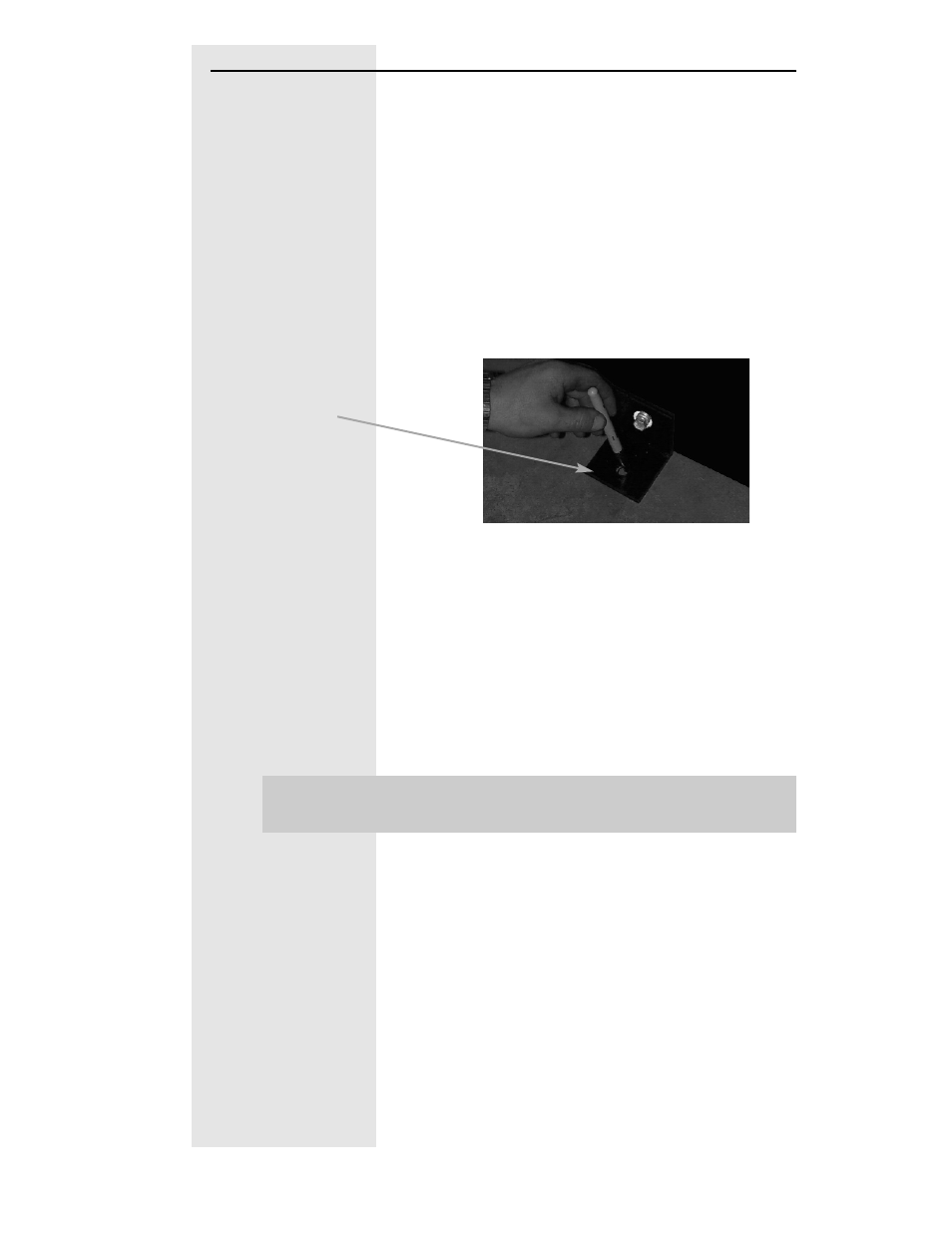

(4) Feet that come
attached to the dyno.
Note: Be sure to clean the debris out of the
holes that you drilled.
