Step 3

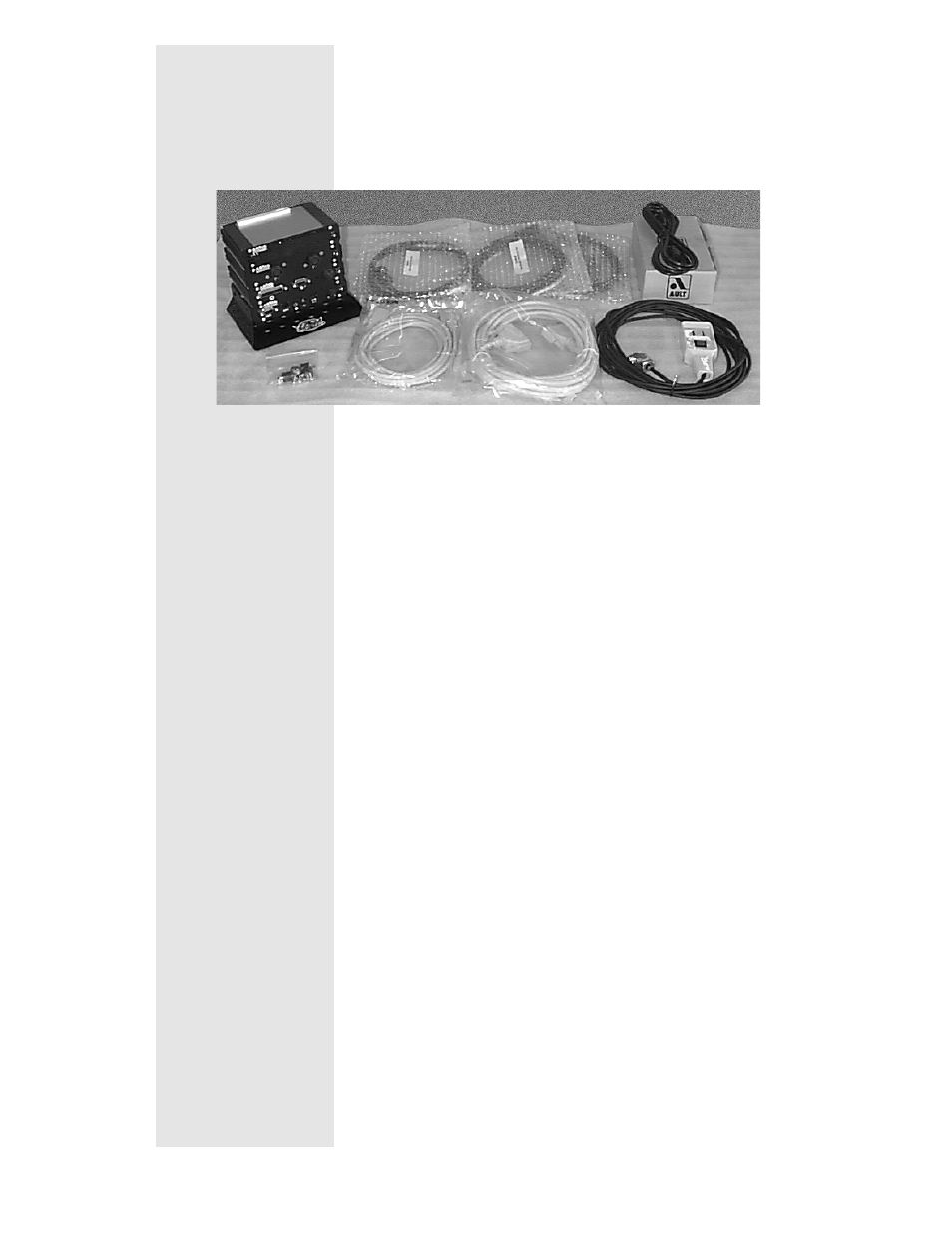

Remove the boxes from the crate and verify that
they contain the following:
DynoWare EX+ system (A)
The DynoWare EX+ system is comprised of four
modules: the CPU module, the Dynamometer
Input/Output module, the RPM module and the
Atmospheric module.
Mounting Hardware (B)
This plastic bag contains the rubber stands for the
bottom of the DynoWare EX+.
Power Supply and Cable (C)
The power supply and cable provides power to
the DynoWare EX+. It is 71/2 feet long.
Hand Held Pendant (D)
The hand held pendant is used to turn the dyno
brake on/off and start/stop dyno runs. The hand
held pendant has a 20-foot cable that plugs into
the DynoWare EX+ and must reach the driver of
the vehicle.
