Power Transfer
Electric Hinge
Wire chase through door
p/n: PT-5
Value Series Flex Conduit/End Cap Kit
Note: For high traffic areas an electric through-wire hinge or power transfer is recommended.

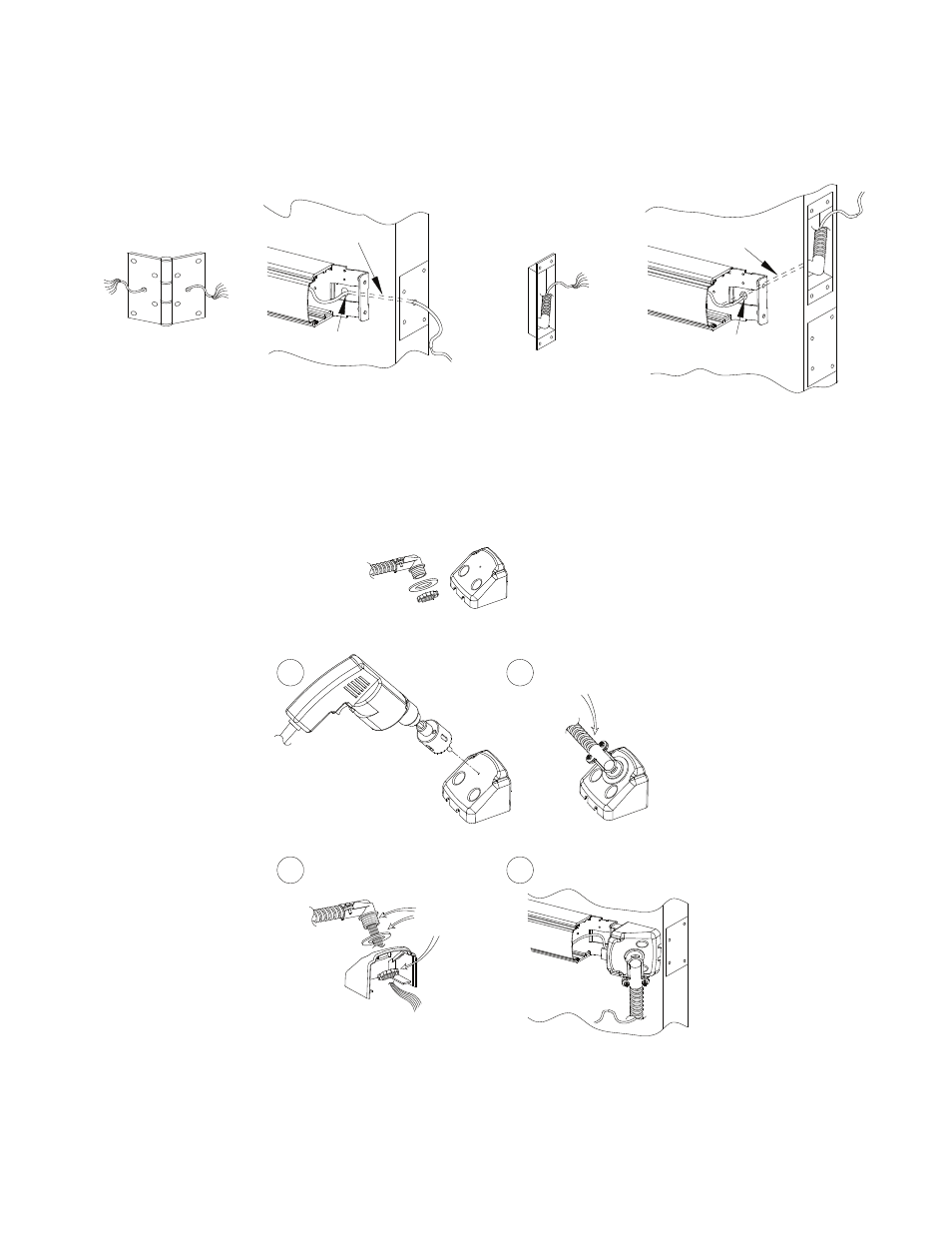

VALUE SERIES FLEX CONDUIT INSTALLATION
Drill 7/8" hole
through center guide
1
p/n: FCV
1/2" Hole through the
inside door face
p/n: EWH8-X
2
Adjust for handing
(LHR shown)
1/2" Hole through the
inside door face
Wire chase through door
(Requirements: Minimum 6 Conductor Wires, Maximum 12 Conductor Wires)
HARDWIRE TRANSFER OPTIONS
Electric Hinge Endcap Prep
Power Transfer Endcap Prep
