74 SBI521 Service Manual
19. The display will cycle power. After the indicator reboots, the display will show
the software version and capacity followed by the weighing mode.

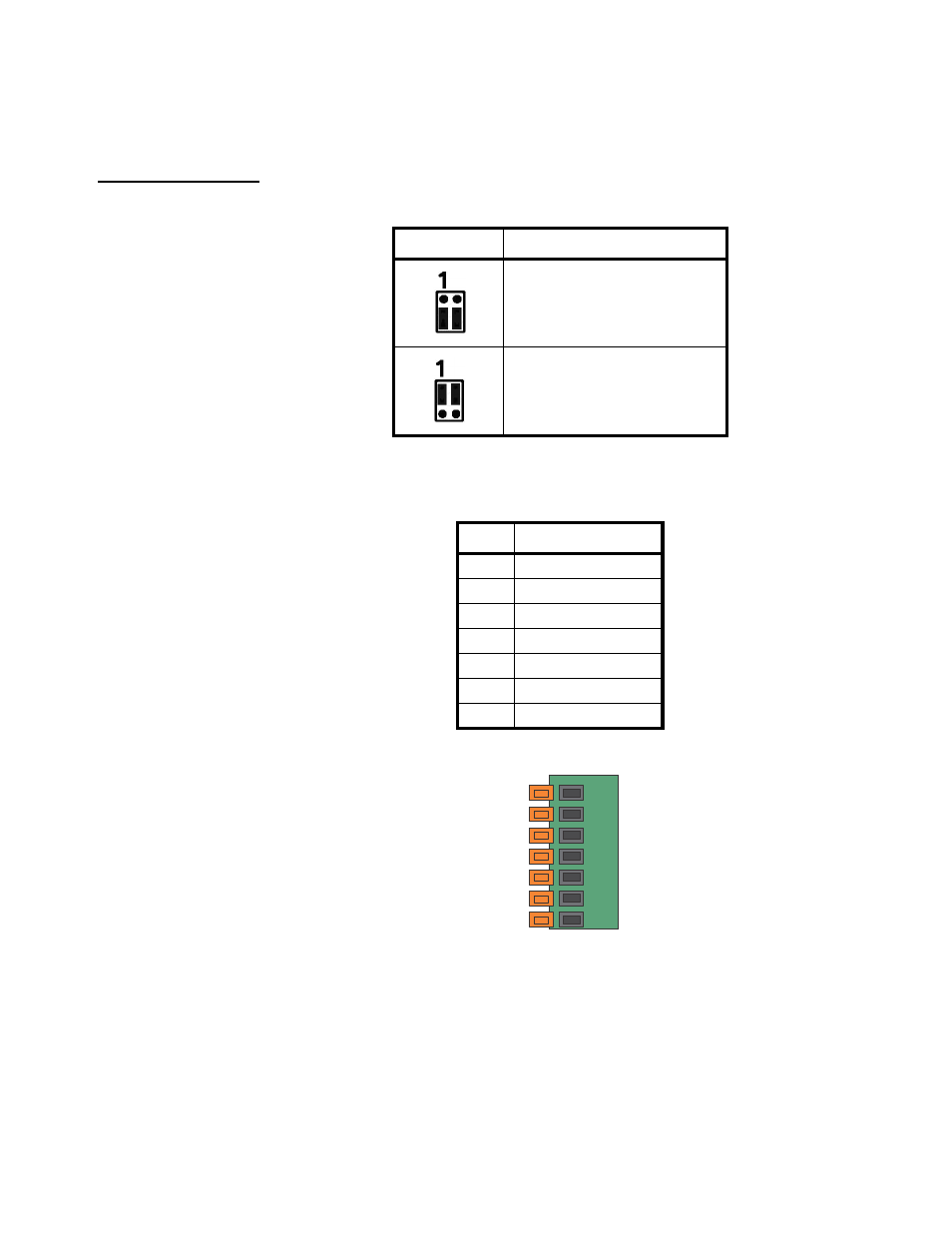

9.1.2 Loadcell Connection and Jumpers
Table 9.2 Loadcell Jumper Connector(JP3)
Table 9.3 Loadcell Terminal Block (typical Brecknell color code)
Figure 9.1 Loadcell Connector
Connected Pins Function
4 wire loadcell is used
6 wire loadcell is used
Pin Wire Color
1 Red
2 N/A
3 Black
4 N/A
5 Green
6 White
7 Enclosure ground lug
1
7
E+
SE+
E-
SE-
S+
S-
SFG
