4.3 Setup Menu Parameters
This section provides more detailed descriptions of the selections found in the Setup
Menu.
The menu charts show the flow of the parameters and also provide a quick reference
to the parameters withing the menu.
The menu tables show the submenus, options and default parameter in LED/LCD
display format to coinside with the actual display.
4.3.1 Config Menu

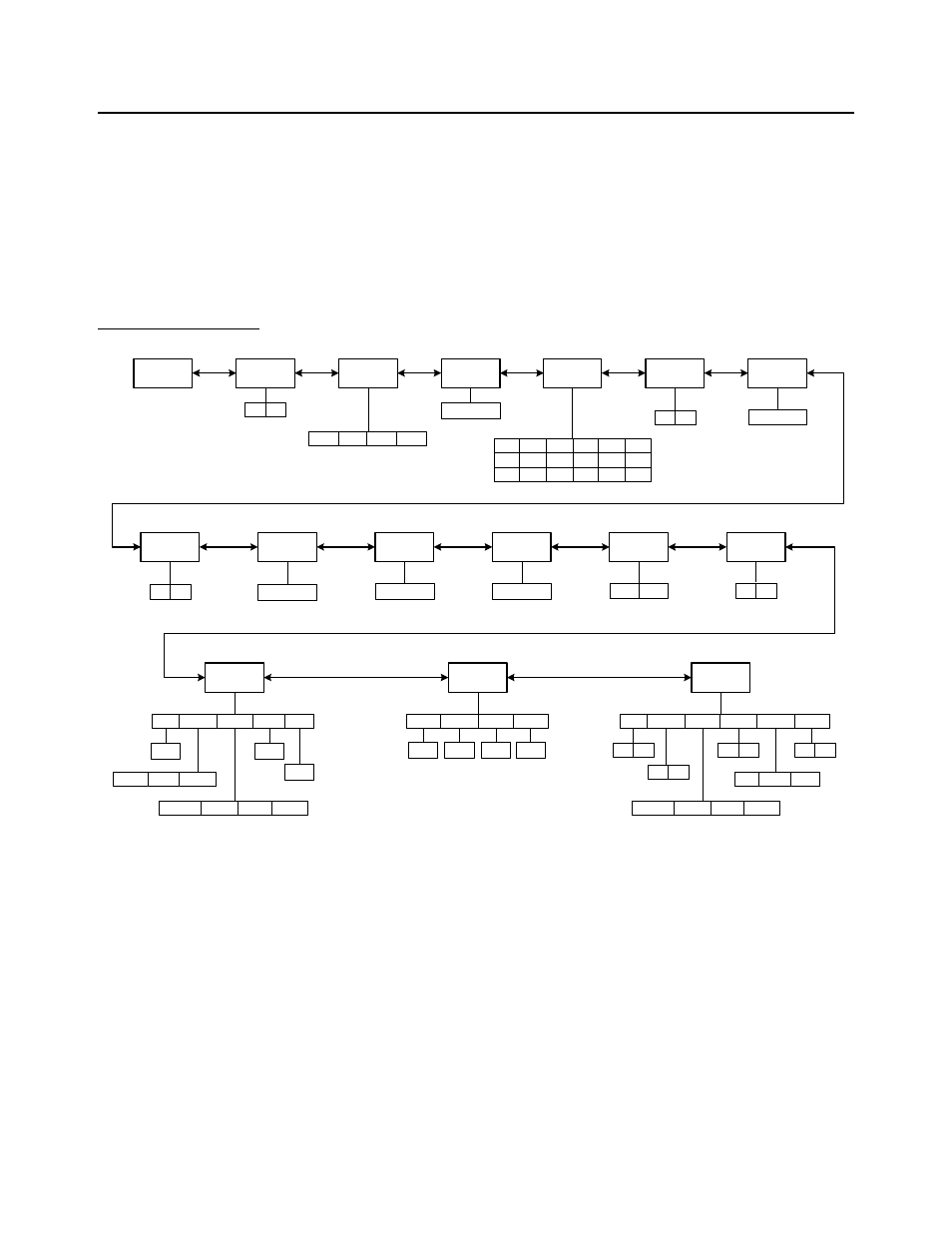

Figure 4.1 CONFIG Menu Chart
The figure above is an illustration of the available menus with the Config menu and the
choices within those menus. Refer to
Table 4.2 for explanations of the menu choices.
CFG.ON
CFG.OFF
kg lb
PRIM.Ut
100 – 150,000
SECND.N RESET
No Yes
none USA Canada Europe
REGULA
100 – 100,000
PRIM.N PRIM.D
0.0001 0.0002 0.0005 0.001 0.002 0.005
0.01 0.02 0.05 0.1 0.2 0.5
1 2 5 10 20 50
ZRO.PNT FILTER FUNC
HOLD COUNT PERCNT COMPAR ACCUMU WT.ADJ
Yes No Yes No Yes No
NO MANUAL AUTO
FLT1.TH FLT1.ST FLT2.TH FLT2.ST
0 - 255 0 - 255 0 - 255
IZSM IN.IZSM OV.IZSM SAZSM AZSM
0 - 100 0 - 100
0 - 100
DSP.OVR CAL.ZRO LST.Z.T WEIGHT
WEIGHT CAL.ZRO LST.Z.T
NO 100.0% 100.00% 100%
0 - 100
10N.DSP UNITS MOTION OVER.LD
No Yes 0 - 6 1 - 255
AD.FROM AD.H.SPD
Yes No
Yes No ADC COM2
1 - 64
