Table 3.1 LED Display Annunciators and Definitions
3.2.2 LCD
The annunciators used with the LCD model are incorporated in the display. The
annunciator will be lit went the mode is active.

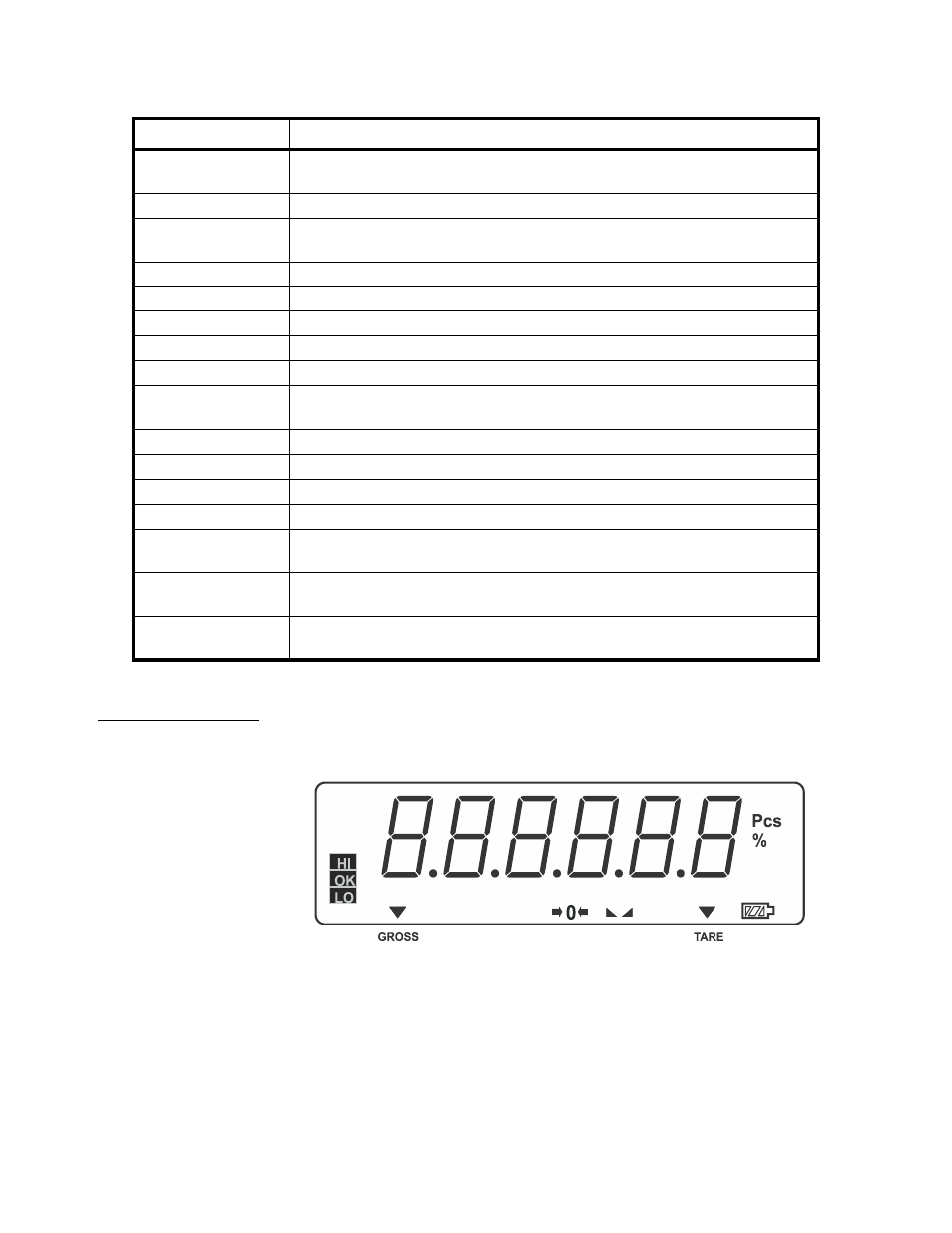

Figure 3.2 LCD Display
LED Annunciator Description
ZERO Better known as the "Center of Zero" annunciator. It is lit whenever the displayed weight is
within ± 0.25 divisions of true zero.
MOTION Illuminates when weight is within motion band.
PEAK/HOLD (1) flashing/not flashing: working HOLD mode and displaying number is/isn't live
(2) red/green: working in HOLD mode and HOLD type is/isn't PEAK-HOLD.
TOTAL Display data is total times or total of weight, pieces or percentage.
NET Indicates current weight is in the net mode and the tare weight is not 0.
GROSS Indicates current weight is in the gross mode.
TARE Indicates current weight is in the tare mode.
Pcs indicates counting mode.
AC/CHG Illuminates red when battery is being charged or green if battery is fully charged or not
installed.
lb Indicates the current unit of measure is lb.
oz Indicates the current unit of measure is oz.
kg Indicates the current unit of measure is kg.
% Indicates the current unit of measure is in percentage weighing mode.
HI Illuminates when data compare is enabled and current data (weight, pieces or percent) is
over the specified upper limit.
OK Illuminates when data compare is enabled and current data (weight, pieces or percent) is
between the specified upper and lower limits.
LO Illuminates when data compare is enabled and current data (weight, pieces or percent) is
over the specified lower limit.
lb:oz
kg
PeakTotalNET Hold
