85
(5) Use IPCAM motion detection
Enable to use the motion detection function of IP camera if the IP camera has support motion
detection and the motion recording will based on IP camera
’s motion detection setting.
(6) Input

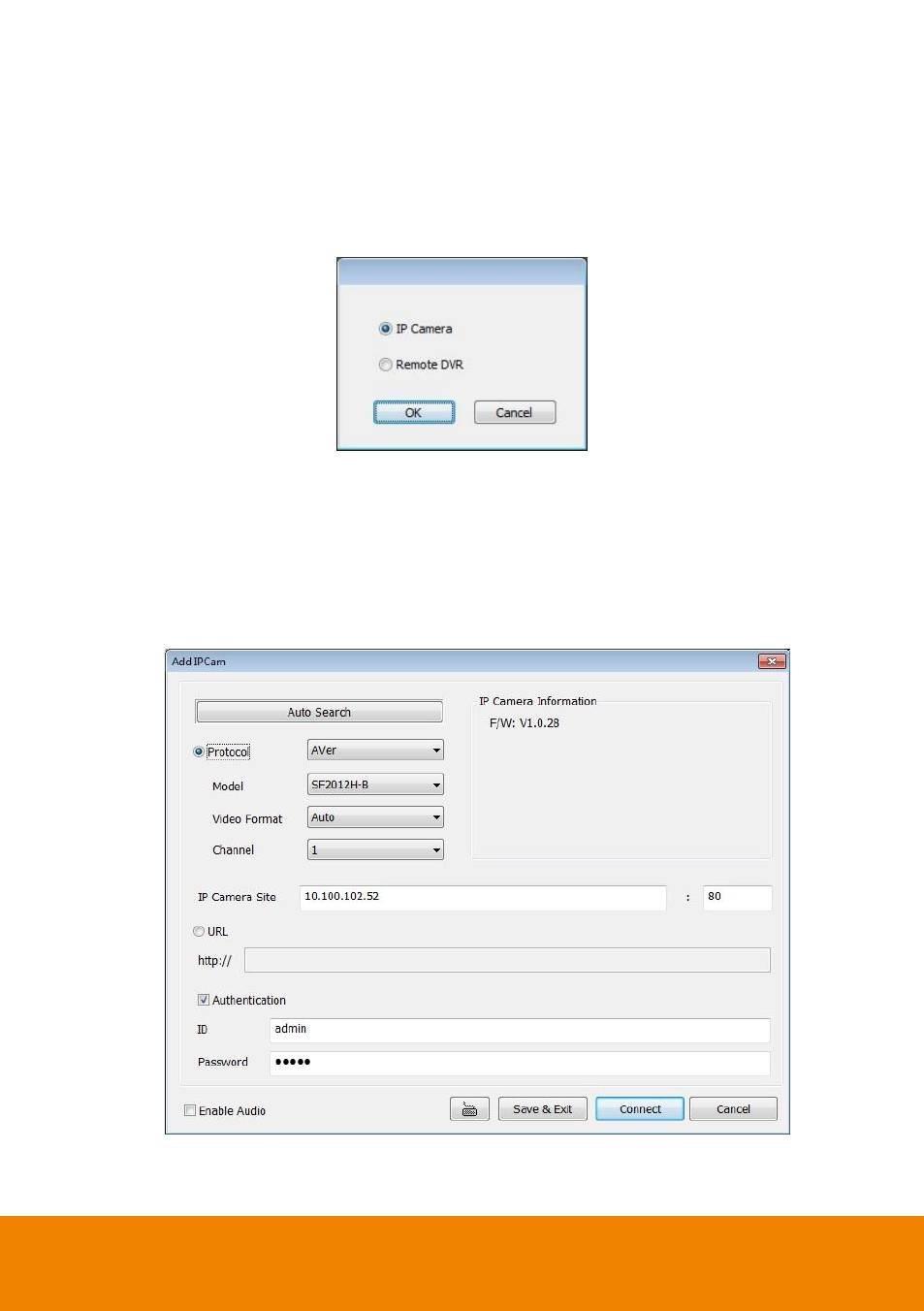

 Add IPCam: To connect an IP camera or Remote DVR. Click Add IPCam button and select the
type of camera and click OK to continue.
- Add IP Camera: In the Add IPCam window, select to connect using Protocol or URL and
then enter the required info. If the IP camera IP address is available, enter the IP address at IP
Camera Site column. If IP camera requires user identification, enable Authentication check
box and enter ID and Password. To enable audio, click Enable Audio check box. If you are
not sure of the Protocol or URL info, please refer to the IP camera manual or contact your IP
camera local distributor. Click Save & Exit to save the setting and leave the setup window, but
no connection with IP camera. To connect IP camera, click Connect button.
