3
ENGLISH
Name Function
(8) S-VIDEO IN Receive the video signal from a media device thru S-Video
connection.
(9) AUDIO IN Receive the audio signal from the audio device thru RCA left and
right audio connection.
(10) CAMERA Receive the image from the camera to the main system.
(11) NTSC/PAL Set the correct TV display output system.
(12) DC 19V Connect the power adapter into this port.
Table Hub
A V e rM e d ia I N F O R M A TI O N , I n c .
A tte n tio n : D O N O T O PEN THE C ASE
Warranty void if the case has been opened.
AVerComm H Series(Hub)
Model No.: V2D1
(1) (2) (3) (4)

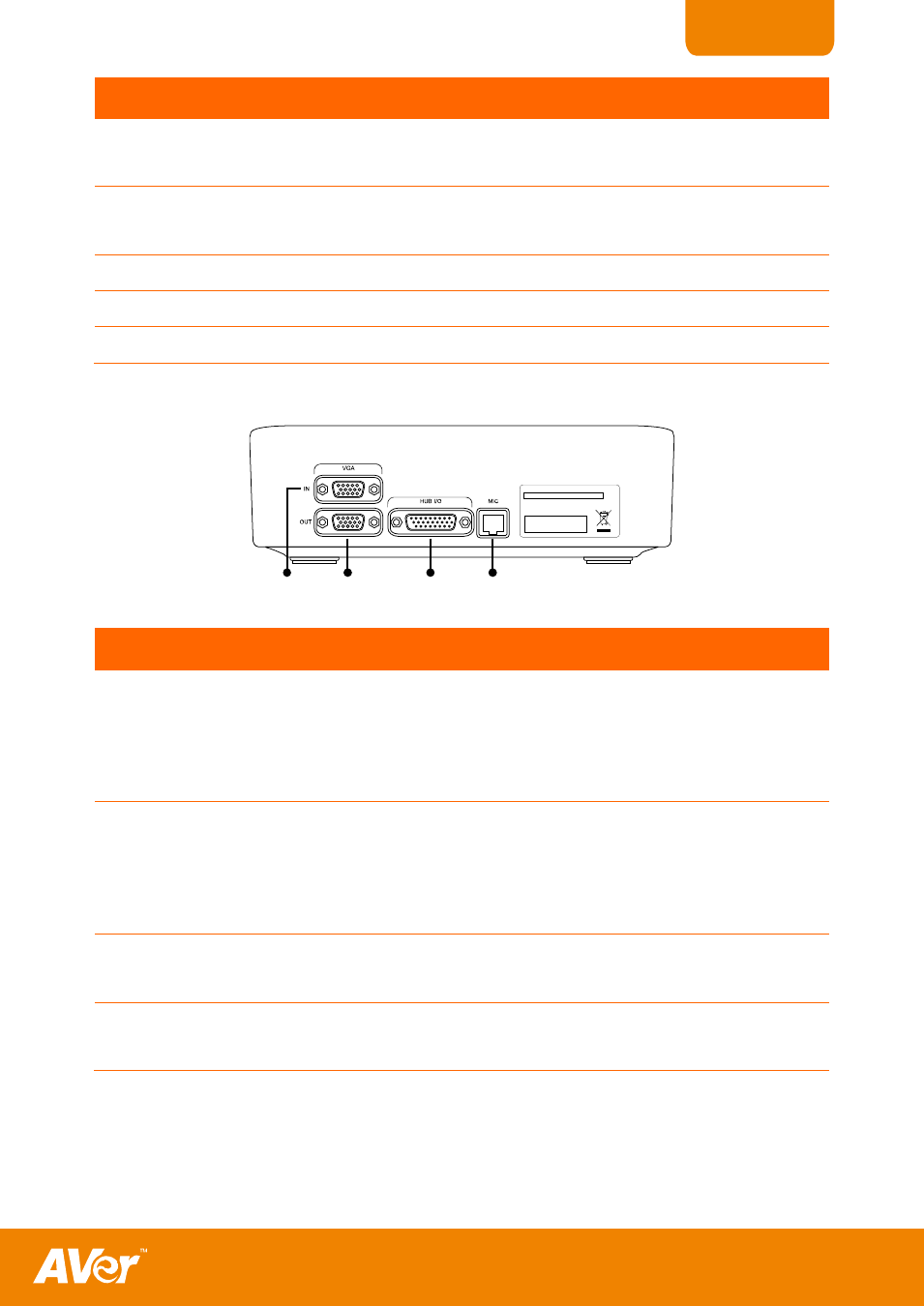

Table Hub back panel (fig. 1.2)
Name Function
(1) VGA IN Input the signal from a computer or other sources. Connect this
port to the VGA output port of a computer. Press PRESENT on
the remote and select VGA IN to share and display the computer
image with the video conferencing camera image.
(2) VGA OUT Output the video signal from the main system on a flat panel
monitor or LCD/DLP projector thru VGA connection. In dual
monitor mode, this port will display the local screen or present
screen when the content is being shared.
(3) HUB I/O Send and receive signal between the main system and Table
Hub.
(4) MIC port Receive the audio signal from the MIC to main system. Use the
6P4C cable to connect the mic and Table Hub.
