Figure 2-5: choose install location dialog box – Achronix Bitporter User Manual
Page 14
Standalone STAPL Player and USB Driver Install
Software and Driver Install
PAGE 8
Bitporter User Guide
6.
From the Choose Install Location dialog box (
), set the desired destination
folder by either typing the path under Destination Folder or using the Browse button
to navigate to the desired location. Click Next > to continue.
7.
From the Choose Start Menu Folder dialog box, select the desired folder and click
Install to start file extraction and begin installation.
8.
If the USB driver component was enabled, when the USB drivers are being installed, a
Windows Security dialog might be displayed. Click Install to confirm that the drivers
should be installed.

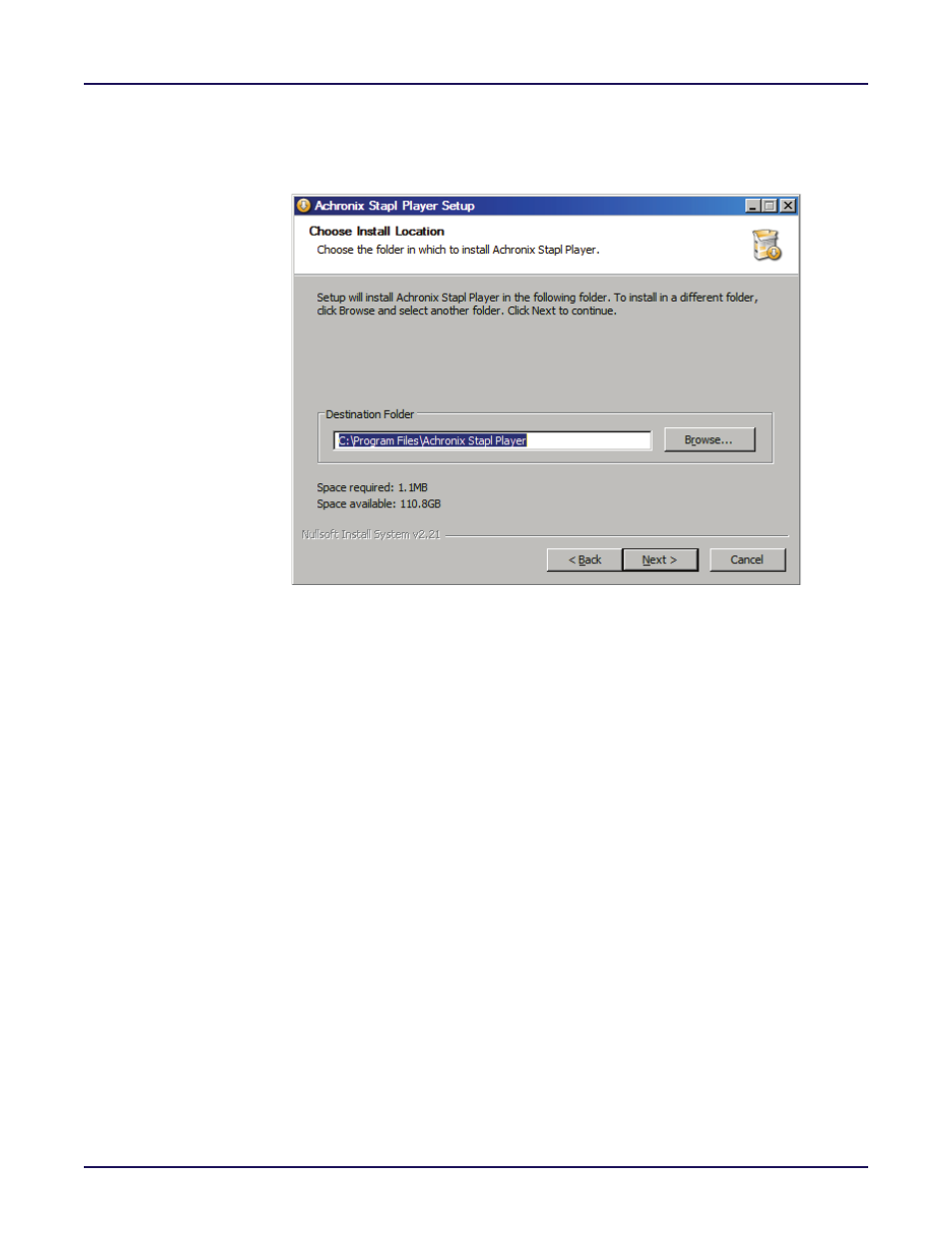

Figure 2-5: Choose Install Location Dialog Box
UG004_c02_05_v01
