general information
ALL MODELS
1. This manual is for the following Models—
113.248210,113.248320,113.248440, and113.248510.
All sections are labeled with the correct model num­
ber. Follow ONLY instructions that are meant for
your model saw.
2. If you are missing any part(s) white putting your saw
together, do not continue assembly. Contact your
Sears Service Center or Retail Store and get the
missing part{s) before continuing assembly or try­
ing to use the saw.
Complete parts lists are located at the end of this
manual. Use theselists to identifythenumberof any
missing part.
3. Sometimes small parts get lost in packaging materi­
als. Do not throw away any packaging until yoursaw
is put together, if you are missing a part, check the
packaging before contacting Sears.
Model Description
Model 113.248210: Manual Band Saw; 18x23 inch
worktable; single speed; V
2 H.R motor that develops 1
H.P.;legset.
Model 113.248320: Manual Band Saw; 27 x 23 inch
work table; two speed; %
h .R motor that develops
1Va H.R; legset.
Model 113.248440: Electronic Band Saw; 27 x 23 inch
work table; two speed;
h .R motor that develops
1Va H.R; legset.
Model 113.248510: Electronic Band Saw; 27 x 23 inch
work table; two speed; Vs H.R. motor that develops
IVs H.R; 23 inch cabinet with door.
unpacking and checking contents
all
MODELS

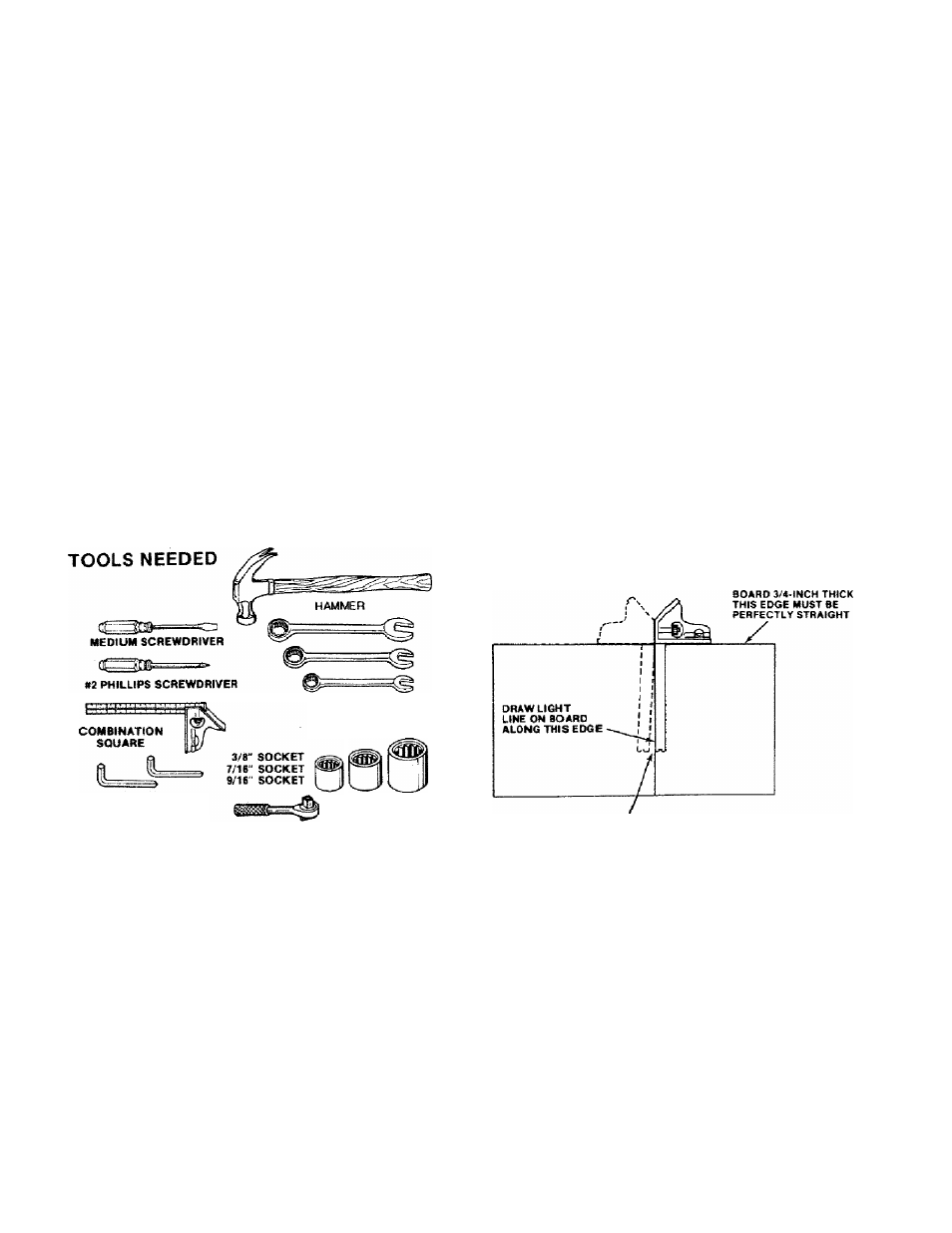

COMBINATION SQUARE MUST BE TRUE
3/8" WRENCH
7/16 ' WRENCH
S/16 " WRENCH
1/8" HEX "L " WRENCH
5/32 " HEX “L" WRENCH SOCKET WRENCH
STRAIGHT EDGE OF
SHOULD SE NO GAP OR OVERLAP HERE WHEN
SQUARE IS FLIPPED OVER IN DOTTED POSITION
WARNING: TO AVOID INJURY FROM UNEXPECT­
ED STARTING OR ELECTRICAL SHOCK, DO NOT
PLUG THE SAW IN UNTIL ALL ASSEMBLY AND
ALIGNMENT STEPS ARE COMPLETE. THE POWER
CORD MUST REMAIN UNPLUGGED WHENEVER
YOU ARE WORKING ON THE SAW.
Unpacking and Checking Contents
1, Separate all “loose parts ’ from packaging mater­
ials and check each item with “Table of Loose
Parts” to make sure all items are accounted for,
before discarding any packing material.
WARNING: IF ANY PARTS ARE MISSING, DO
NOT ATTEMPT TO ASSEMBLE THE BAND
SAW, PLUG IN THE POWER CORD, OR TURN
THE SWITCH ON UNTIL THE MISSING PARTS
ARE OBTAINED AND ARE INSTALLED COR­
RECTLY.
2. Remove front table and front cover first while
saw is being unpacked. To remove the front
cover, pull thecover at the neck and underside of
throat area.
