MODEL 113.248510

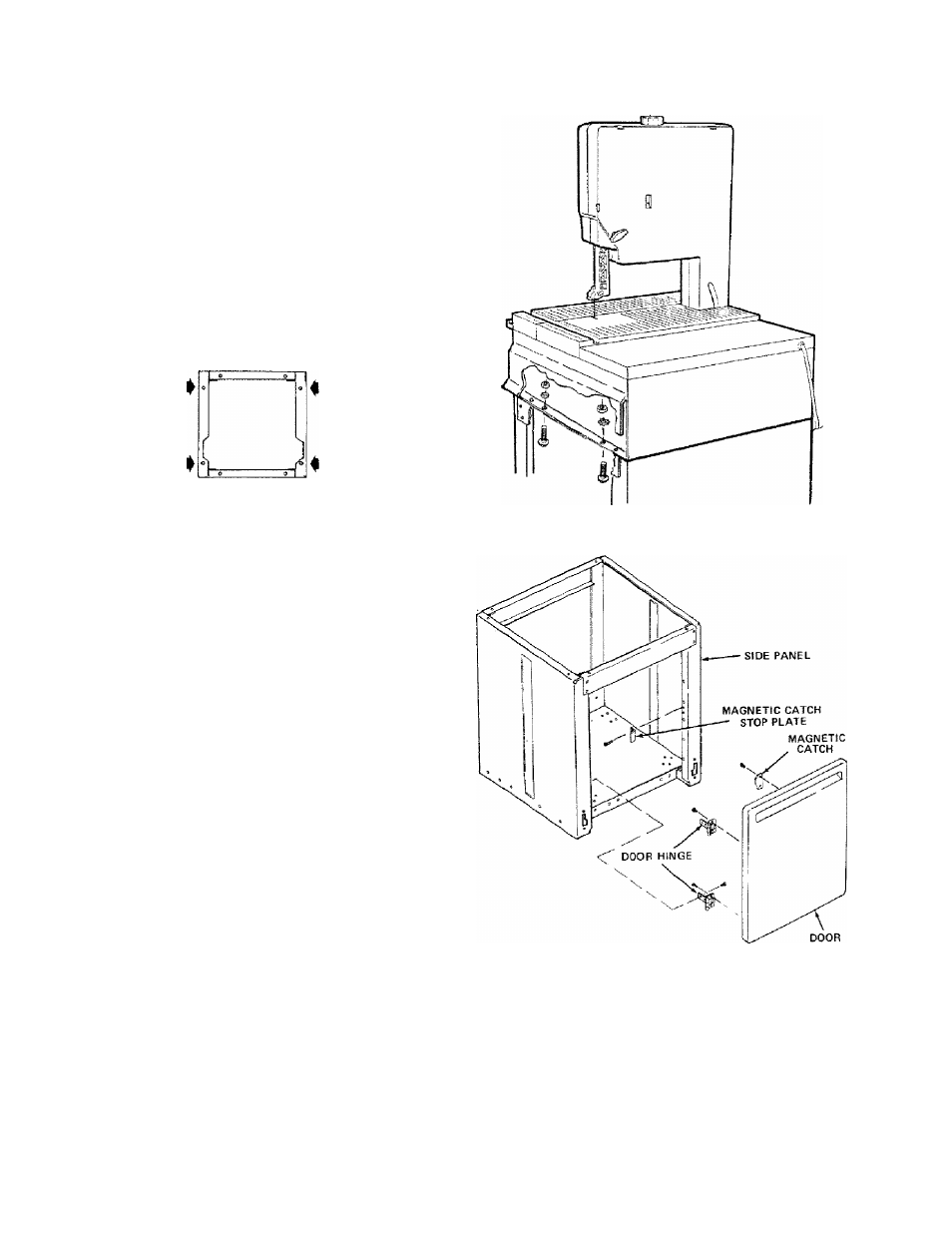

2. Place saw on cabinet so that holes in bottom of
saw line up with holes In top of cabinet.
3. Install bolts, lockwashers. and nuts as shown.
Tighten securely using a 7/16-inch wrench or
socket. The front two bolts hold the saw, lower
wheel cover, and the cabinet together. Install
these bolts from the bottom side,
4. After the band saw has been mounted to the
cabinet, go back and tighten all the nuts that
were previously hand tightened using a 7/16-
inch wrench or socket.
FRONT
MOUNTING DOOR
Tools needed; 7/16" wrench or socket and phillips
screwdriver.
1. Locate the two (2) door hinges and four (4) 10-10 x 1/2
plastite screws. Mount hinges on either side of the
door with phillips screwdriver.
2. Locate the four (4) truss head bolts, lockwasher and
hex nuts to attach door hinges to the side panel.
Tighten hex nuts with a 7/16" wrench orsocket.
3. Locate the magnetic catch, the magnetic catch stop
plate, two (2) 6-10 X1/2 pan head screws and two (2)
6-32 X 3/8 pan head screws. Attach the magnetic
catch to the door with the two (2) 6-10 x 1/2 pan head
screws using a phillips screwdriver. Attach the mag­
netic catch stop plate to the side panel opposite the
side the hinges are to be mounted. Use the two (2)
6-32x3/8 pan head screws to mount stop plate.
Adjust the stop plate if necessary with phillips screw­
driver for desired closure.
16
