MODEL 113.248210,113.248320,
113.248440
ATTACHING LEVELING FEET
From the loose parts bag find the following hardware:
Item Description
Qty.
A
Support Bracket.......................................... 4
B
Leveling Feet .............................................. 4
C
Hex Nut 3/8-16........................................... 8
From the loose parts find the following items;
D
Leg .............................................................. 4
,
•NOT SHOWN TO SCALE

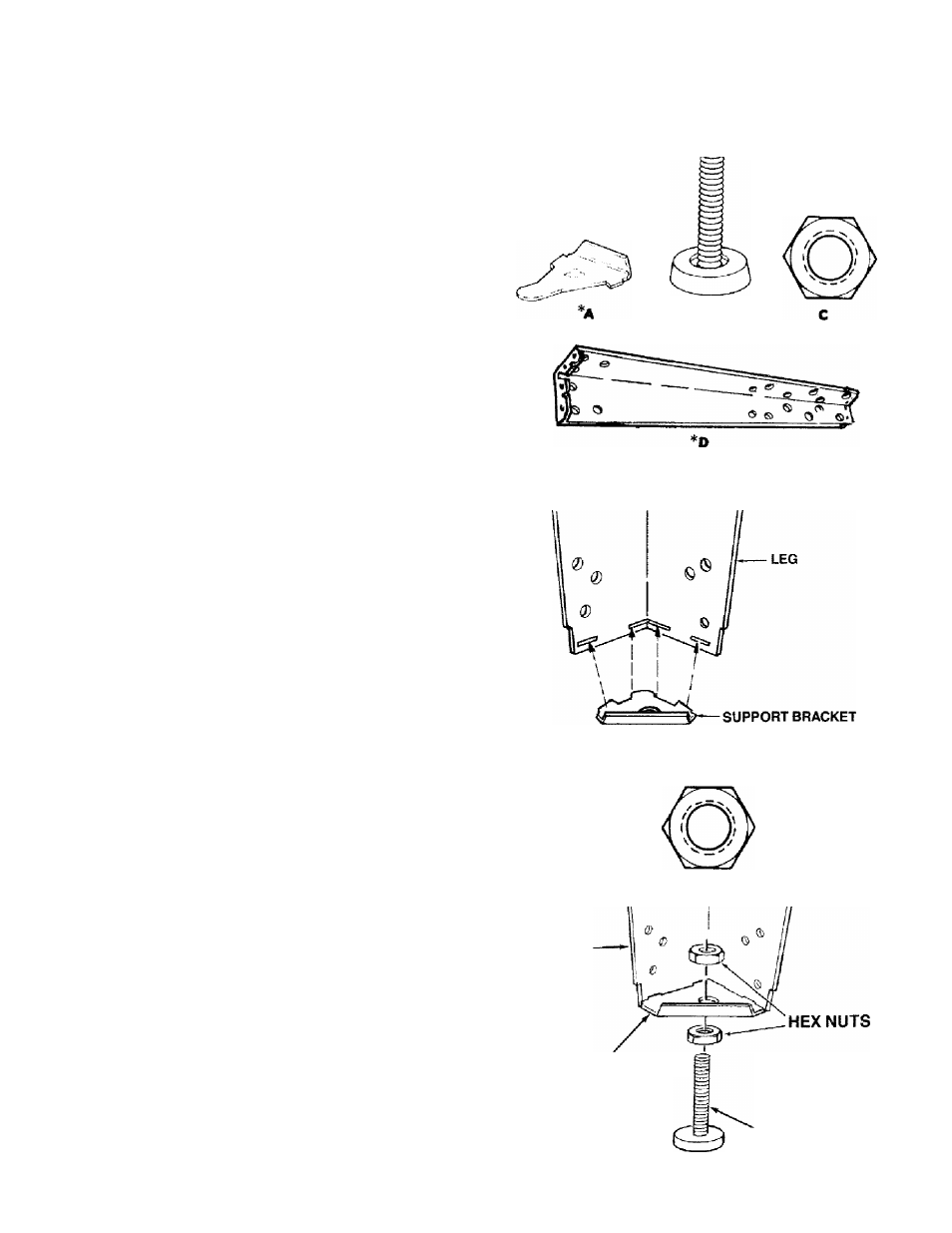

1. Mount floor leveler support brackets inside legs.
Line up the three tabs on brackets with slots on leg
and tap into place. Make sure lip on bracket points
up. Install the remaining three brackets the same
way.
2. Put a hex nut on each of the leveling feet and screw it
down towards the rubber foot.
3. Put the leveling feet through the holes in the bottom
of the floor leveler support bracket.
4. Put another hex nut on each of the leveling feet and
hand tighten until they are next to the support
bracket.
WARNING: After the legset has been attached to the
basic saw assembly, it will be necessary to ad just the
leveling feet so the saw does not rock.
LEG
SUPPORT BRACKET
LEVELING FOOT
