ALL MODELS

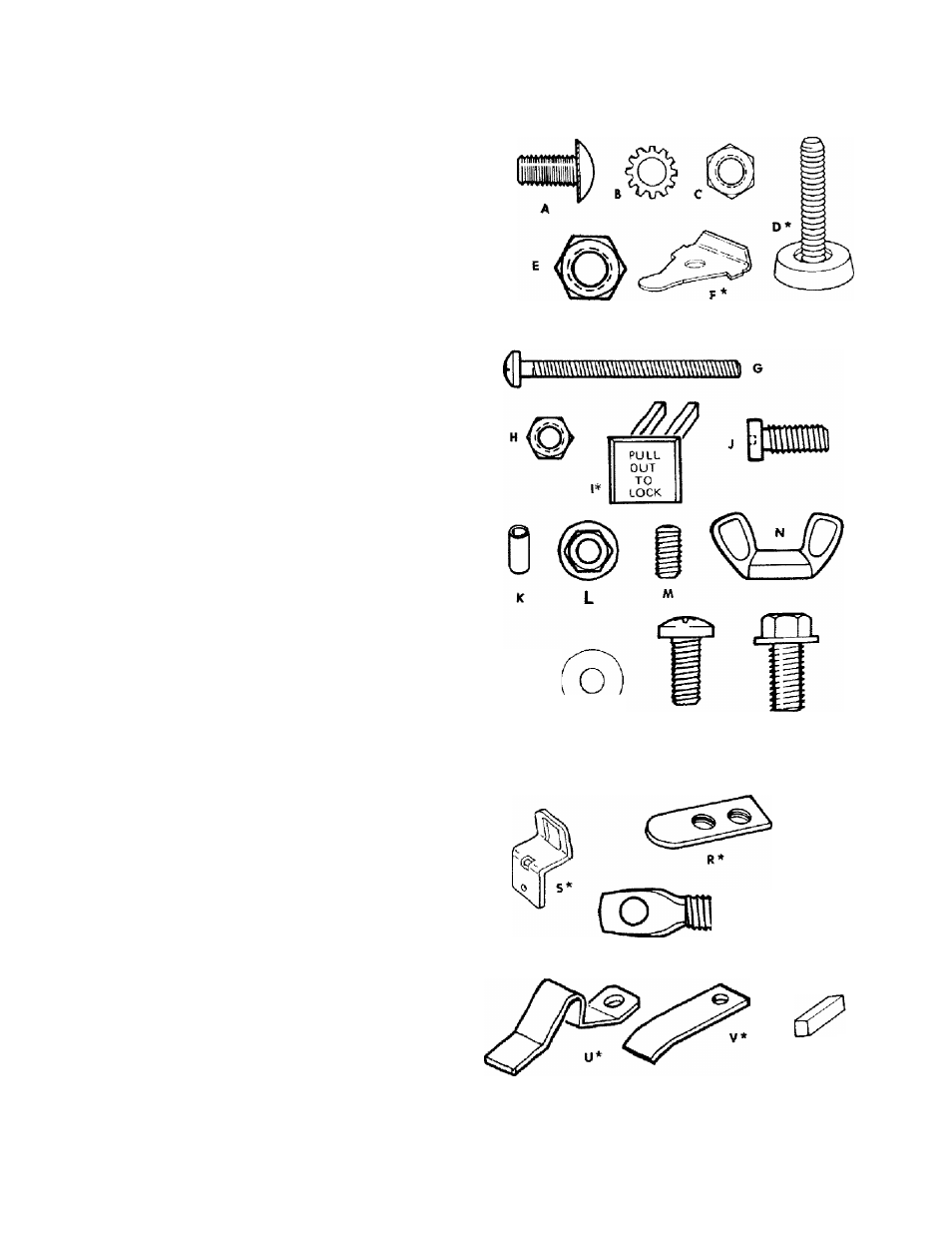

LIST OF LOOSE PARTS IN BAG #507968
ITEM DESCRIPTION QTY.
A Truss Head Screw V4-20x12..........................32
B Lockwasher Ext. ’A......................................... 32
C Hex Nut 1/4-20................................................32
D Leveling Foot.................................................. #
E Hex Jam Nut %-16......................................... 8
F Bracket Leg..................................................... #
LIST OF LOOSE PARTS IN BAG #508014
ITEM DESCRIPTION QTY.
G Pan Hd. Screw 10-32x2................................... 1
H Hex Nut 10-32.................................................. 1
I Switch Key...................................................... 1
J Lo Hd. Screw Cap 1/4-20 xVa........................ 2
K Spacer #10 X 5/i6........................................... 3
L Hex Flange Lock Nut 10-32............................ 4
M Locking Setscrew V4-20xi/2........................... 3
N Wingnut®/i6-18.............................................. 1
O Washer V32X 1 x1i/i6....................................... ''
O Washer i %4 x % x 1/32 ....................................... 2
P Pan Hd. Screw Type TT10-32 x 1 %............... 2
Q Hex Hd. Screw Ty TT V4-20 x %................... 4
LIST OF LOOSE PARTS IN BAG #507741
ITEM DESCRIPTION QTY.
R Table Alignment Key...................................... 1
S Table Latch ...................................................... 2
T Belt Tension Stud ............................................ 1
U Table Latch Spring......................................... 2
V Table Alignment Spring.................................. 2
W Key3/i6Sq.xis/6.............................................. 1
MMH
w’
‘NOT SHOWN TO SCALE
