MODEL 113.248510

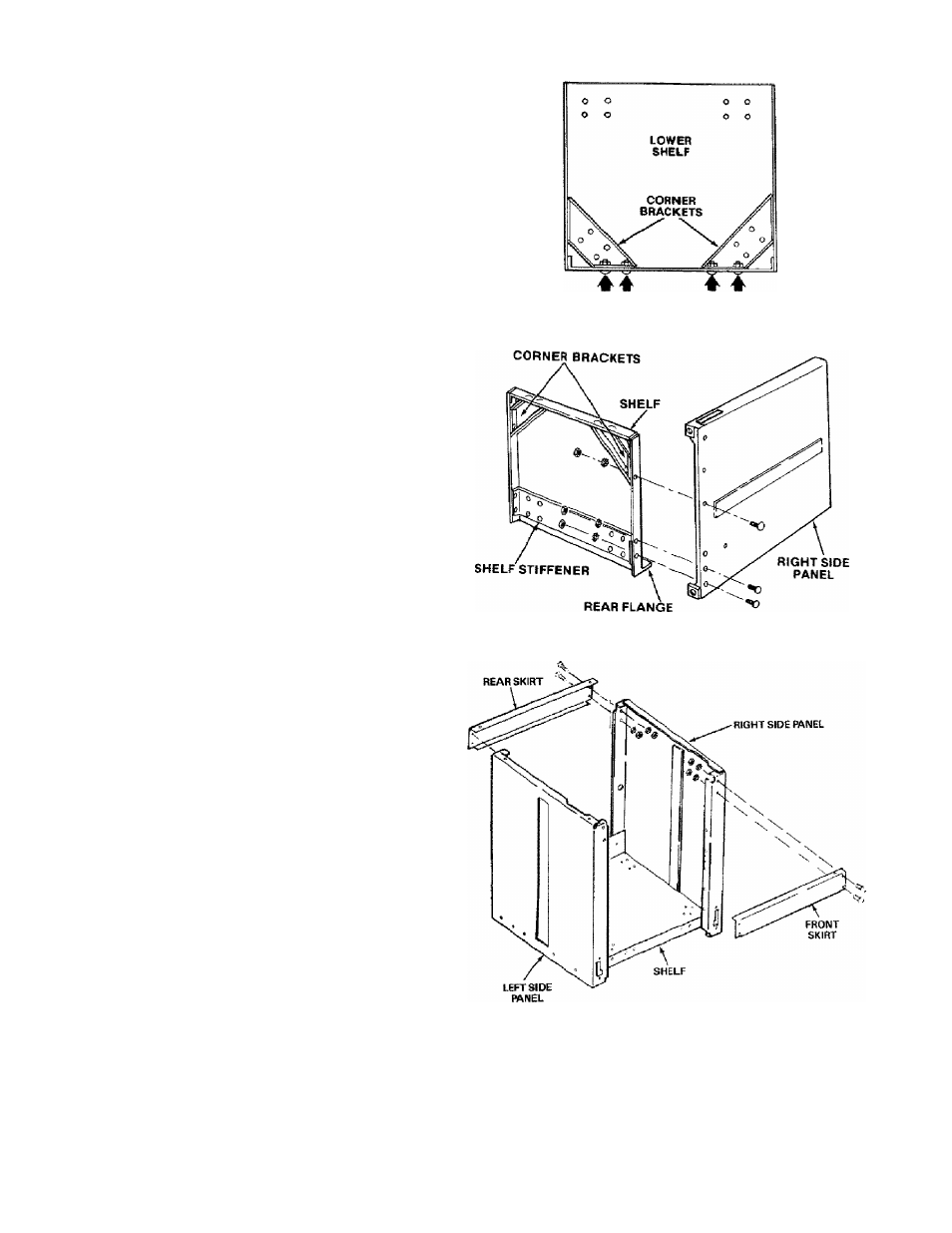

2. After layout of cabinet parts, lake the lower shelf
and turn upside down on floor. Small front flange
should be pointing upward.
3. Locate the two (2) corner brackets, four (4) 1/4-
20 X 1/2 truss head bolts, lockwashers, and nuts.
Attach the corner brackets to the front flange in
holes as illustrated. Attach both corner brackets.
4. Locate the two (2) side panels, one (1) shelf
stiffener, and six (6) 1/4-20x 1/2truss head bolts,
lockwashers and hex nuts. Place the right side
panel on its back side as illustrated. Stand up the
lower shelf on the rear flange and line up the
holes on the corner bracket and shelf stiffener
with the holes in the side panel. Mount the bolts
in the three holes and tighten hex nuts with a
7/16-inch wrench or socket. Repeat procedure
for left side panel.
5. Locate the two(2) skirts, eight(8) truss head bolts,
lockwashers and hex nuts. Assemble one(1) skirtto
the front of the cabinet using four(4) bolts, lock­
washers and nuts. Hand tighten only. Stand the cab­
inet upright and assemble the rear skirt to the
cabinet using two{2) truss head bolts lockwashers
and nuts using the top two holes only. From inside
the cabinet insert two bolts out through the two
remai ning holes i n the rear ski rt. I nstal I lockwashers
and nuts hand tightened only.
14
