MODELS 113.248320,

113.248440, and
113.248510

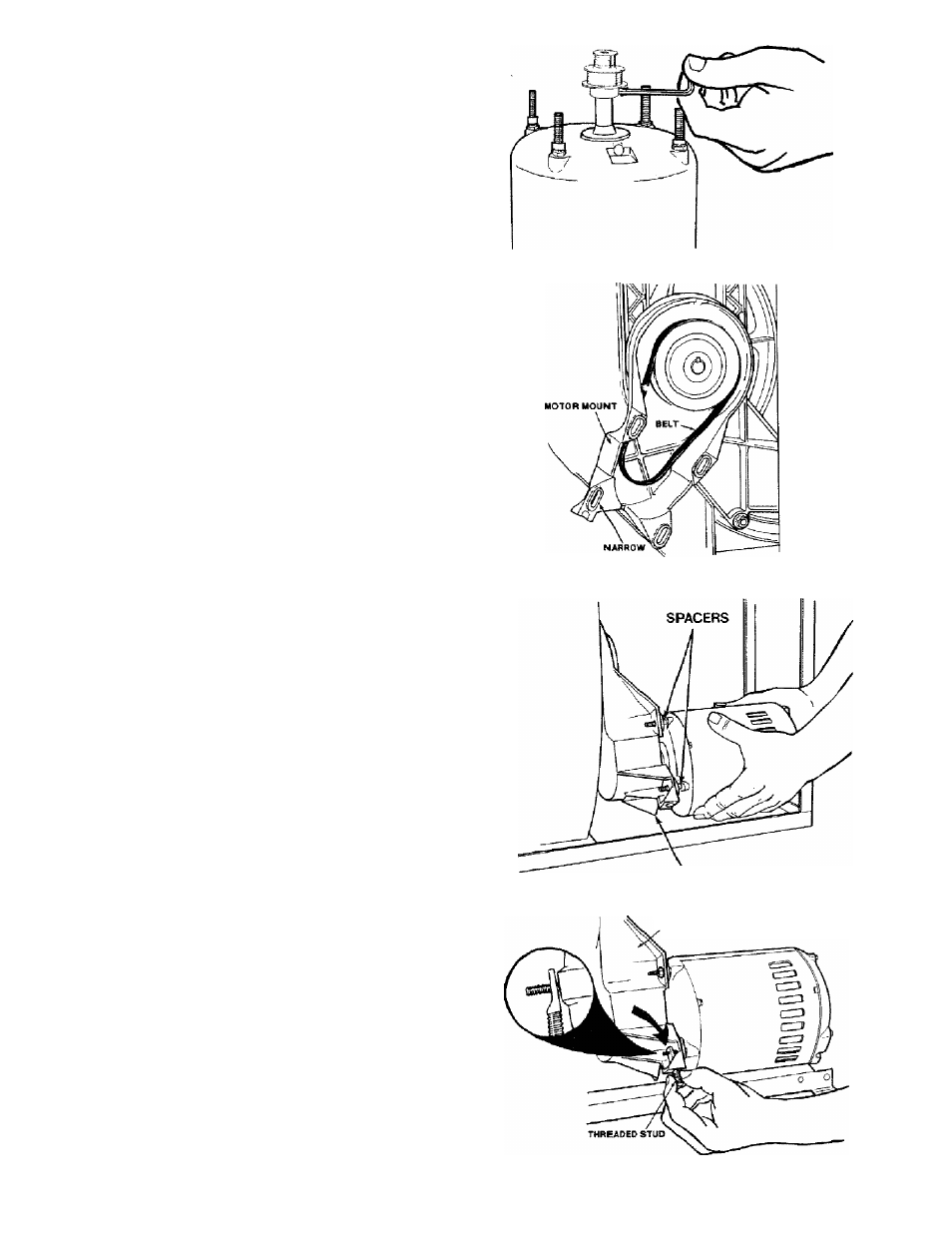

4. Locate the correct motor pulley {Model 113.248210

has a “one-step” pulley). Placethe shaft key into the

groove on the motor shaft. Align the groove in the
pulley with the shaft key and install the motor pulley
on the motor shaft with the setscrew boss toward the

motor.

ALL MODELS

5. Place the Poly “V” belt into the motor mount as

shown on the underside of the band saw.

6. Look at the motor mount and find the slot that is nar

rower than the other three. When mounting the
motor, the motor stud without aspacer goes into this
slot.

SLOT

7. Carefully position the motor so that the poly “V” belt

is around the motor pulley and the four motor studs
align with the slots in the motor mount.

8. Push motor studs through and install the flanged

lock nuts to the three (3) motor studs with spacers.
Start the flanged nuts by hand only at this time.

MOTOR MOUNT

мотов MOUNT

9. Install the threaded stud through the hole in the

lower leg of the motor mount and over the motor stud

as shown.
