To connect the VIDEO/AUDIO OUT jacks of other components to the
SAT/CABLE (VIDEO IN/AUDIO IN) jacks of this unit

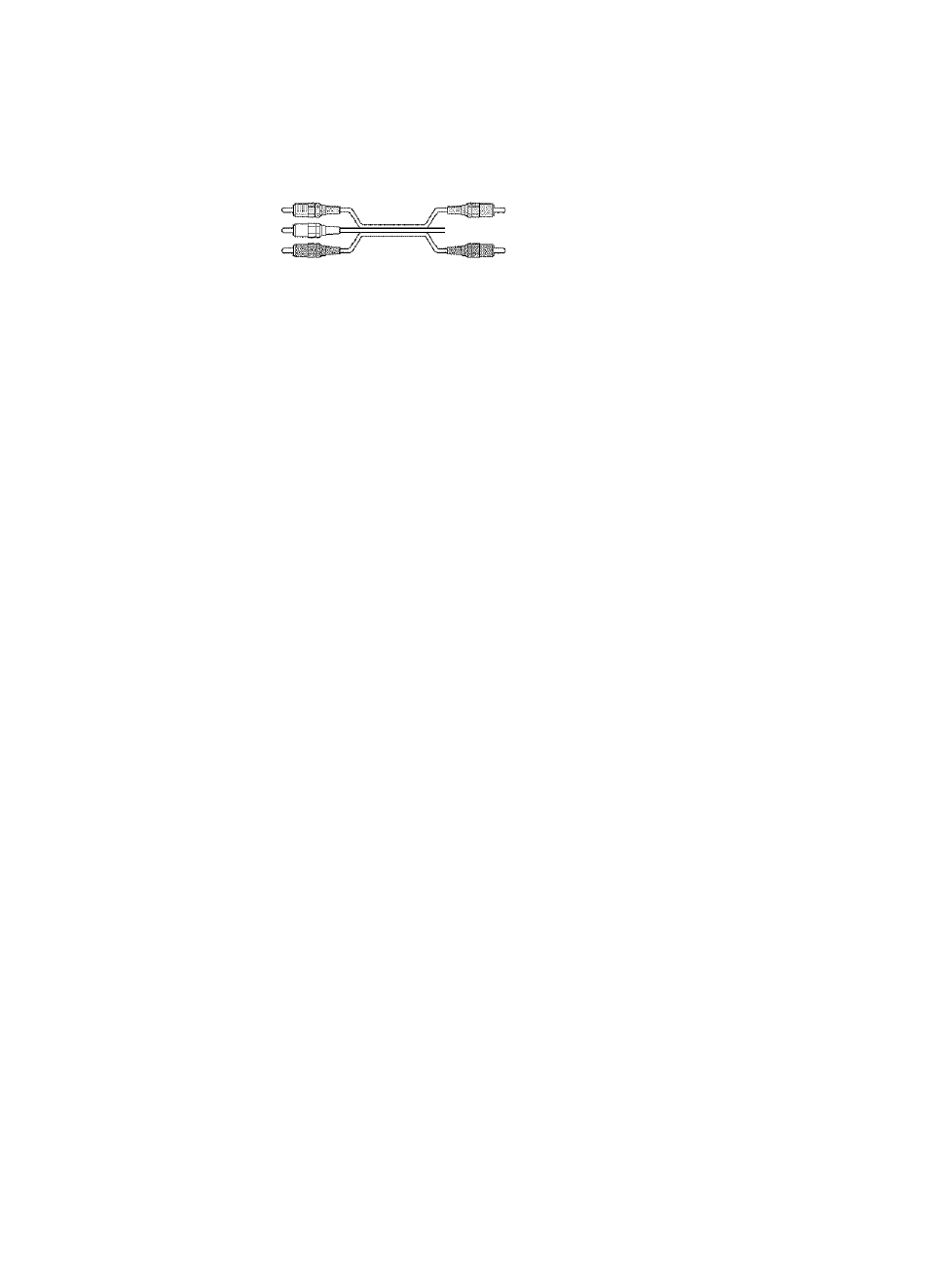

Connect the VCR or other components to the SAT/CABLE (VIDEO IN/AUDlO IN) jacks using the
video/audio cord (not supplied). When connecting a cord, be sure to match the color-coded sleeves to
the appropriate jacks on the components.
Yellow (Video)
White (L/audio)
Red (R/audio)
To connect the DIGITAL MEDIA PORT adapter
Connect a DIGITAL MEDIA PORT adapter (not supplied) to the DMPORTl or 2 jack. For details of
the DIGITAL MEDIA PORT adapter, see ‘’Using the DIGITAL MEDIA PORT Adapter” (page 77).
To listen to the portable audio source sound through the system
Connect the audio output jacks of the portable audio source to the AUDIO IN jack on the front panel
of the unit with the stereo mini-plug cord (not supplied).
0
(I)
3
3
to
55
0 3
a
1
>
I
z
o
m
0
1
• When listening to MP3 format recordings using a portable audio source, you can enhance the sound.
Press FUNCTION to select ‘'AUDIO.''” Connect the portable audio source- Press SOUND FIELD ■+-/- repeatedly
until "A-F.D- STD" appears in the front panel display.
To cancel, select other than “A.F.D. STD.”
If you connect a digital satellite receiver with a DIGITAL OUT (COAXIAL
or OPTICAL) jack
A digital satellite receiver can be connected to the SAT/C.ABLE (DIGIT.AL IN CO.AXIAL or
OPTICAL) jack instead of the .SAT/CABLE (AUDIO IN) jacks of the unit.
To connect, use a digital coaxial cord (not supplied) for the DIGITAL IN COAXIAL jack or digital
optical cThe system can accept, both digital and analog signals. Digital signals have priority over analog signals.
(COAXIAL has priority over OPTICAL.) If the digital signal ceases, the analog signal will be
processed after 2 secojids.
t=CII3lY^ =azBg3=^ Digital coaxial cord
afOl Digital optical cord
If you connect a digital satellite receiver without a DIGITAL OUT jack
Connect, the digital salcllilc receiver to the S.AT/C.ABLE (AUDIO IN) jacks only of the unit.
continued-
