0 Connecting the Speakers
Required cords

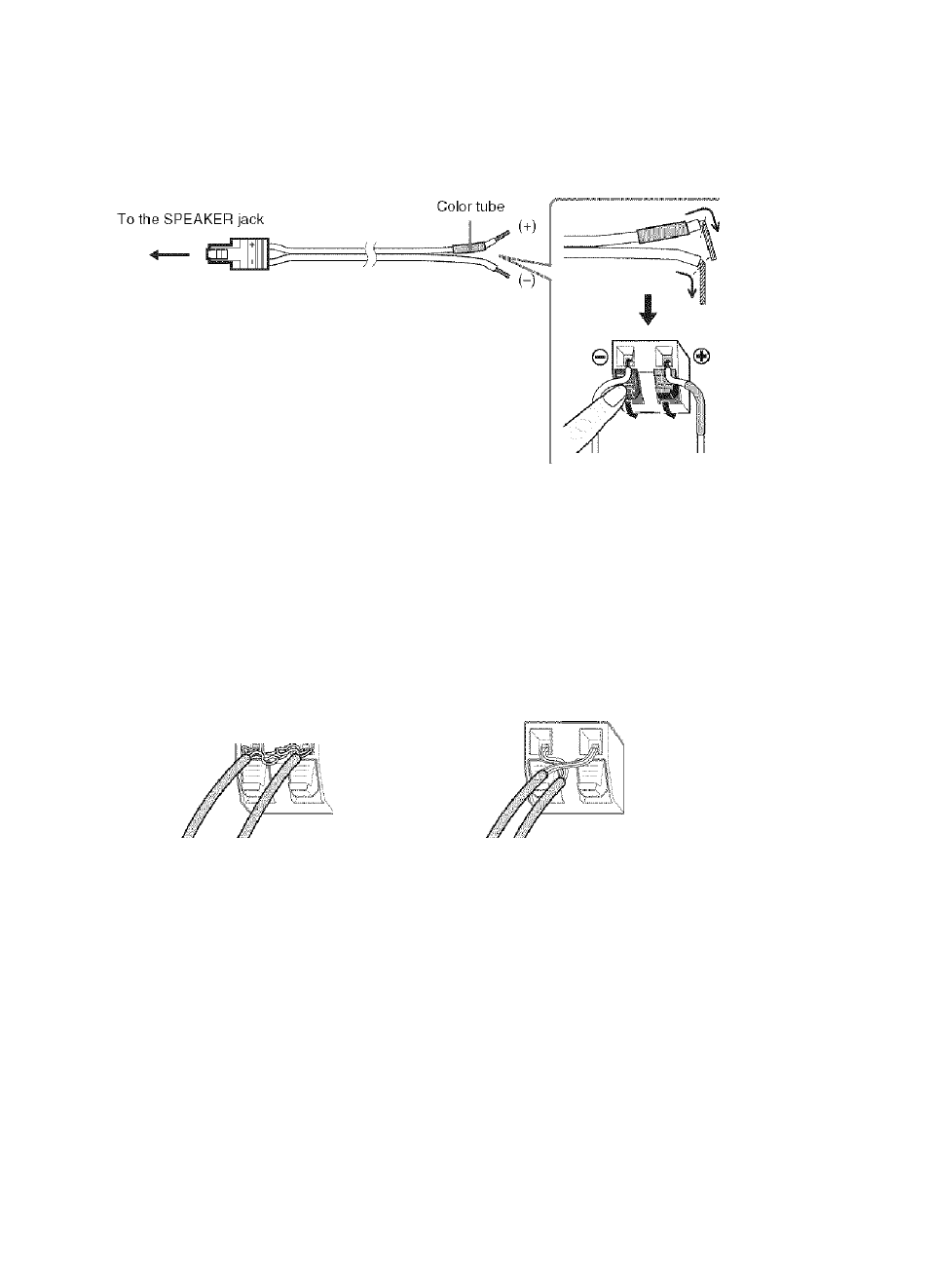

The connector and color tube of the speaker cords arc the same colr>r as the label of the jacks to be
connected.
• Do not catch the speaker cord insuliition in the SPEAKER jack.
To avoid short-circuiting the speakers
Short-circuiting оГ the speakers may damage the system. To prevent this, be sure to follow these
precautions when connecting the speakers. Make sure the bare wire of each speaker cord does not touch
another speaker terminal or the bare wire of another speaker cord, sucit as sliown below.
Stripped speaker cord is touching
another speaker terminai.
Stripped cords are touching each other
due to excessive removal of insuiation.
After connecting all the components, speakers, and AC power cord (mains lead), output a test tone to
check that all the speakers are connected correctly. For details on outputting a test lone, sec page 93.
If no sound is heard from a speaker while outputting a test tone, or a test tone is output from a speaker
other than the one cuiTently displayed on the Setup Display, the speaker may be short-circuited. If this
happens, check the speaker connection again.
•Be sure to match the speaker cord to the appropriate terminal on the components: 0 to 0, and 0 to 0. !f the cords
are reversed, the sound will lack bass and mav be disloited.
