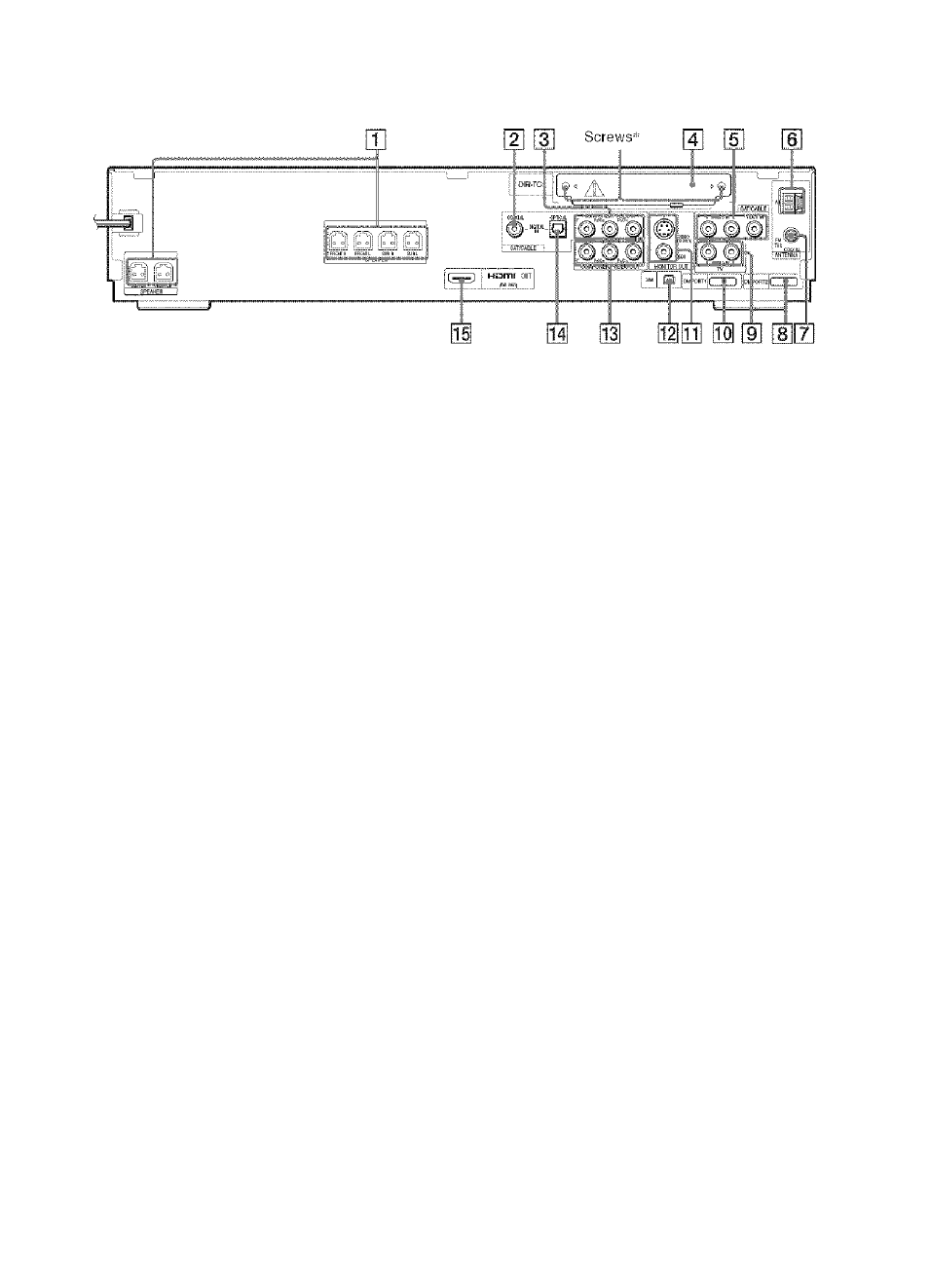

Rear panel
SPEAKER jacks (19)
SAT/CABLE (DIGITAL IN COAXIAL)
jack (34)
SAT/CABLE (COMPONENT VIDEO IN)
jacks (34)
DIR-TC1 slot for the WAHT-SD1 (34)
SAT/CABLE (AUDIO IN R/L, VIDEO IN)
jacks (34)
AM terminal (19)
FM 75ii COAXIAL Jack (19)
DMPORT2 (DIGITAL MEDIA PORT2)
jack (34, 77)
TV (AUDIO IN R/L) jacks (34)
I
DMPORT1 (DIGITAL MEDIA PORT1)
Jack (34, 77)
I MONITOR OUT (SVIDEO/VIDEO) jacks
(30)
1 XM jack (68)
1 COMPONENT VIDEO OUT Jacks (30)
1
SAT/CABLE (DIGITAL IN OPTICAL)
Jack (34)
i HDMI OUTJack(30)
A CAUTION
Plca.Sc do not remove the screws before
i list alii iMi theWAHT-SDl.
>
a
a
o'
3
SL
o
3
s
o'
3
continued
