Tomei Powered PISTON KIT - Manual (Page 19)

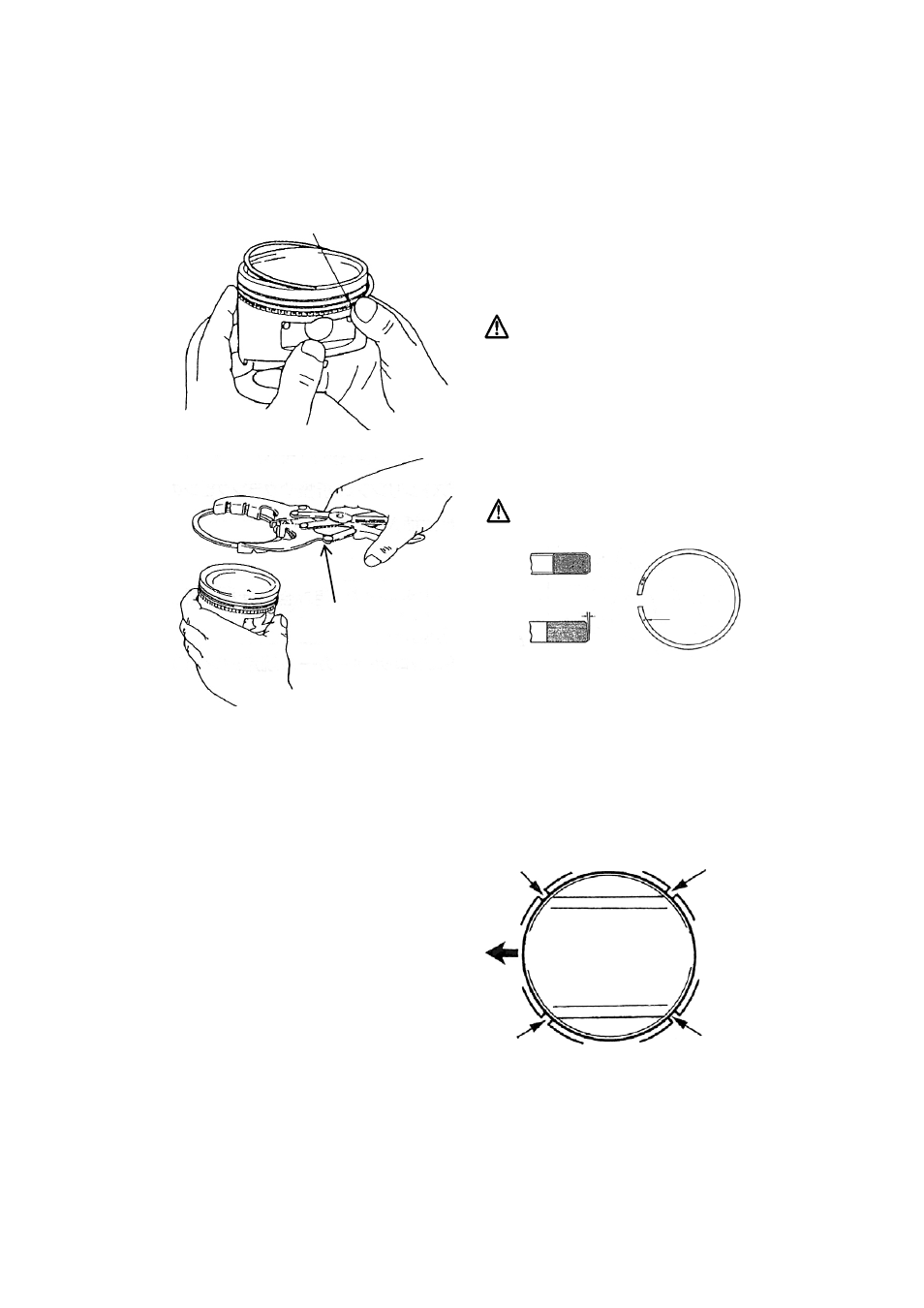

5. PISTON RING INSTALLATION
① The Oil Rings spacer is built into the piston-ring
groove.
② The side rail of the oil ring is built in an upper &
lower order. Position a part of the side rail in the
Piston ditch, hold it in place with your finger & fit it.
Do not install with the Piston Ring Expander
as the ring side will be damaged.
③ Install the Second Ring and Top Ring with the
Piston Ring Expander.
Position the clock mark side of the ring up.
サイドレール端
ピストンリング
エキスパンダー
セカンドリング
打刻
マーク
Side Rail Edge
Piston Ring
Expander
Top Ring
Second Ring
Clocking
on mark
④ Verify that each Piston moves smoothly in either
direction.
⑤ Match each Pistons Rings position, on each Piston
as shown in figure.
19
Oil Ring below the
Side Rail.
Top Ring & Oil Ring
Expander
Second Ring
Oil Ring is above
the Side Rail.
