90 Installing System Components

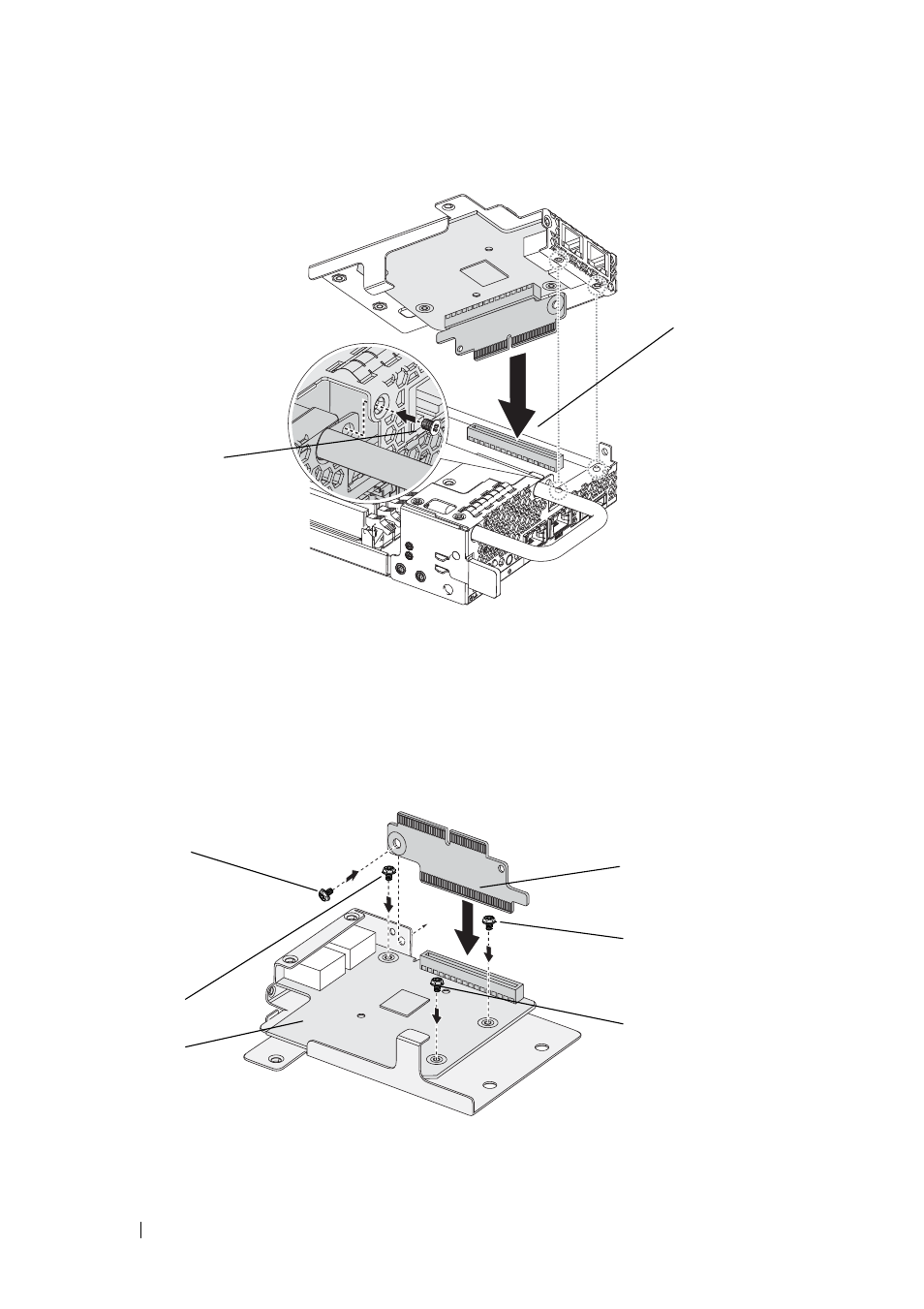

Figure 3-14. Removing a 1/10 GbE Mezzanine Assembly
3 Flip the assembly over and remove the provided screw securing the linking
board.
4 Remove the linking board from the mezzanine card.
5 Remove the provided screws securing the card.
Figure 3-15. Removing a 1/10 GbE Mezzanine Card
6 Remove the card from the assembly.
