Jumpers and Connectors 113
2.5-inch Hard Drive Board Connectors
Figure 5-2 shows the connectors on the 2.5-inch hard drive board.

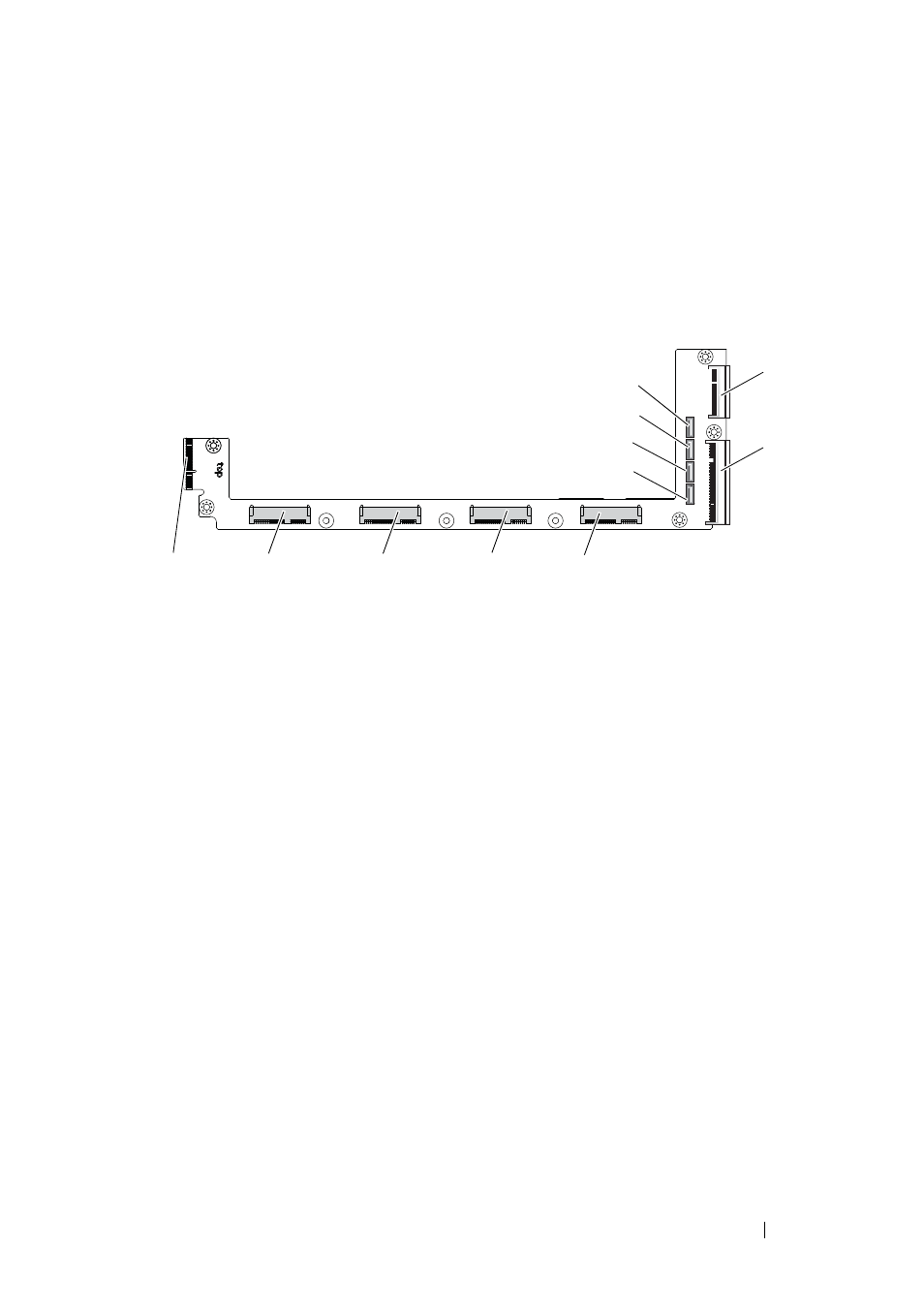

Figure 5-2. 2.5-inch Hard Drive Board
1 backplane connector 2 hard drive 0 connector
3 hard drive 1 connector 4 hard drive 2 connector
5 hard drive 3 connector 6 two board-edge connectors
7 hard drive 0 SATA connector 8 hard drive 1 SATA connector
9 hard drive 2 SATA connector 10 hard drive 3 SATA connector
1 2 3 4 5
7
8
9
10
6
6
