8
About Your System
Front-Panel Features and Indicators
The Dell PowerEdge C5220 server is available in either a 12-sled or 8-sled,
each supporting either two 3.5-inch or four 2.5-inch hard drives.
There are two sled SKUs available for the PowerEdge C5220 server, an eight
sled SKU and a twelve sled SKU. For information on sled population, see
"Sled Configuration" on page 61.
The following section provides information for the 8-sled, 12-sled, and
mezzanine card options.
Features

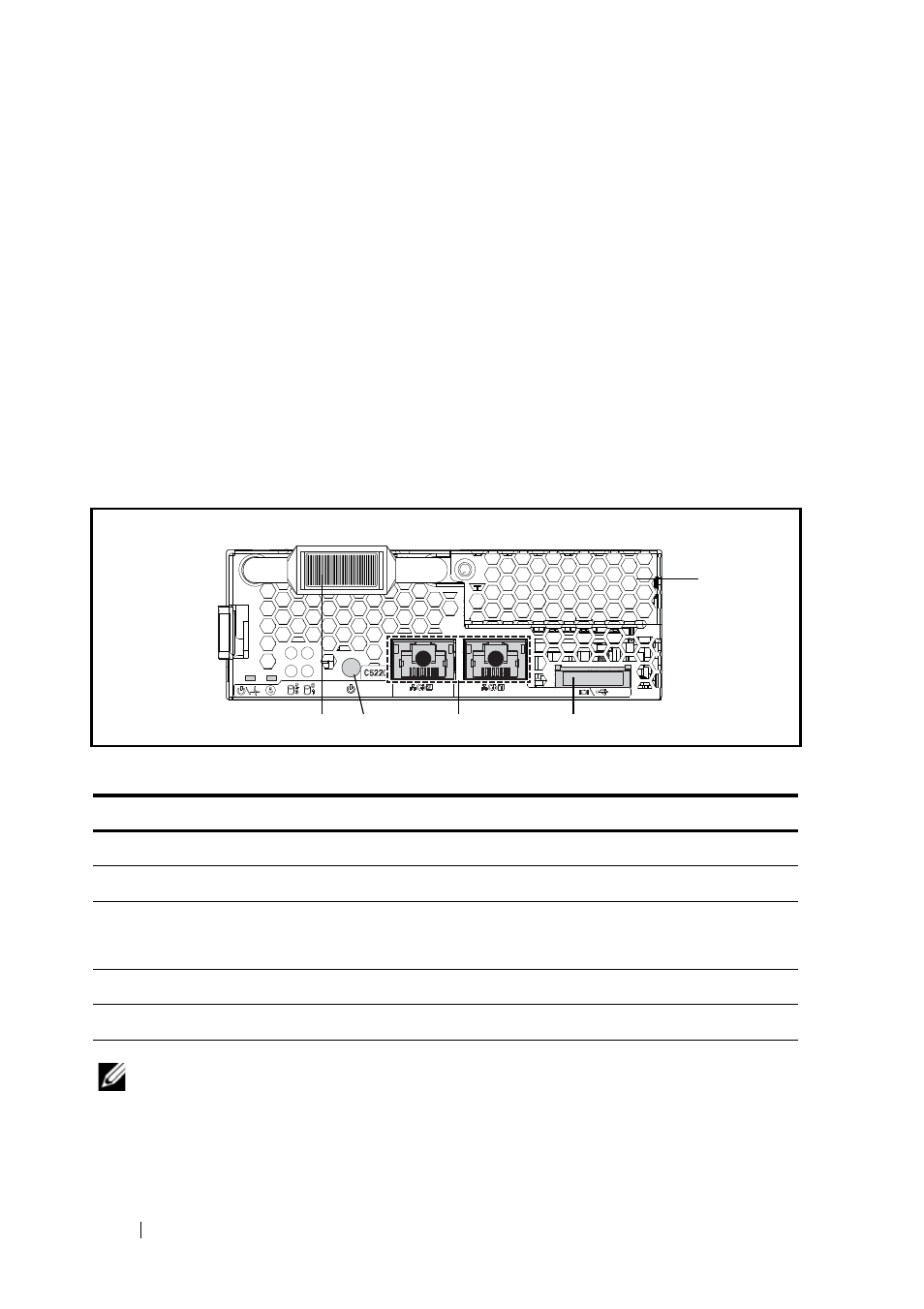

Figure 1-1. 8-Sled SKU Front Features (Rotated Counterclockwise 90°)
NOTE:
PowerEdge C5220 systems with a service tag on the front panel support
Intel Xeon E3-1200 series processors only.
Item
Feature
Description
1
Mezzanine card cover
Cover for the Mezzanine card
2
VGA/USB connector
VGA/USB 2.0 connector
3
NIC LAN ports
10/100/1 Gb NIC LAN connector 1
10/100/1 Gb NIC LAN connector 2
4
Power button
On/Off button for sled
5
Service Tag
Identifying service tag
1
2
1
2
3
4
5
