Installing System Components 97
Routing the 3.5" SAS Mezzanine Cables
After installing a mezzanine card, you need to route the SAS cabling as
depicted in the following figure.

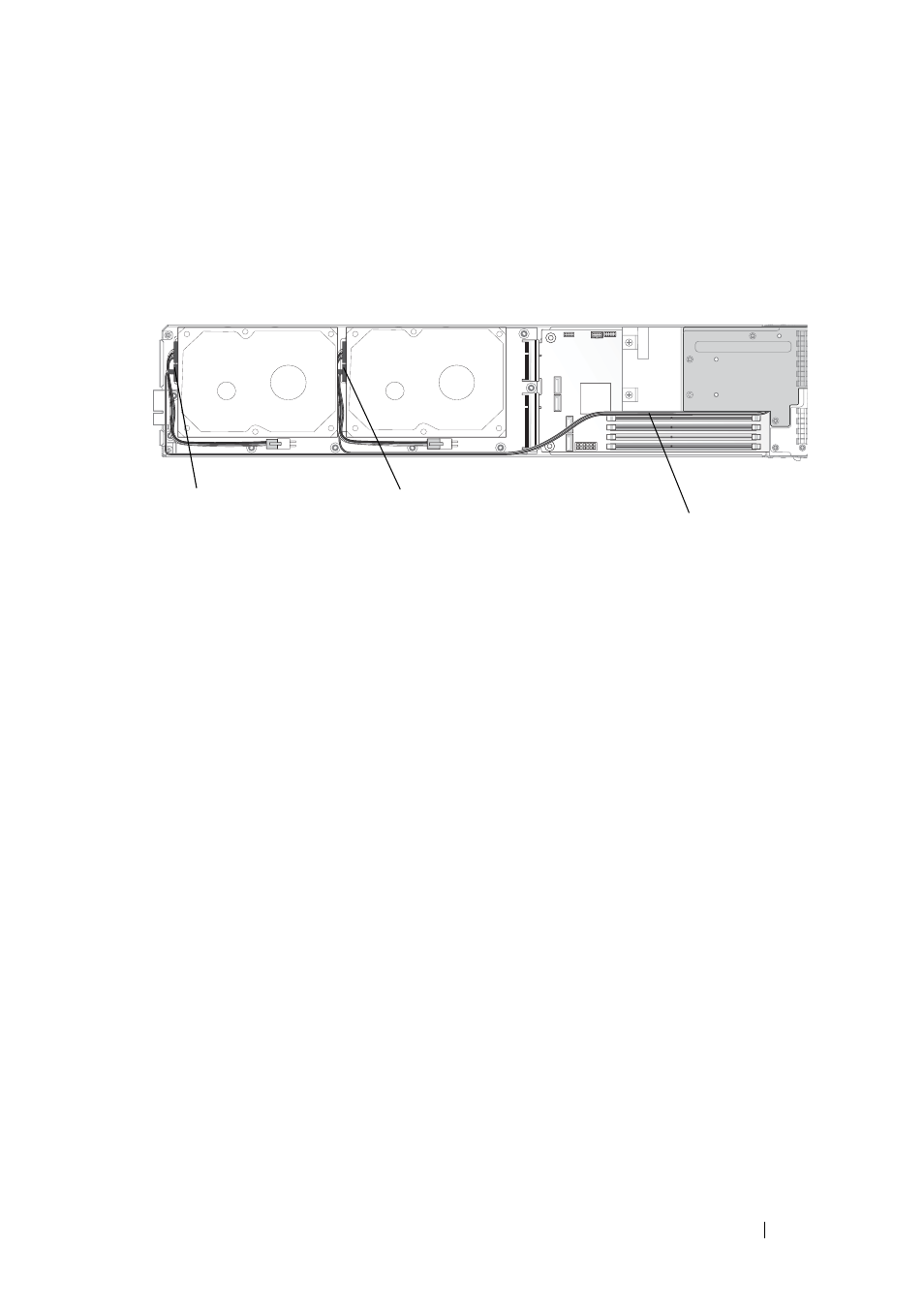

Figure 3-23. SAS Mezzanine Cable Routing
Removing a SAS Mezzanine Card with 3.5" HDD
Prior to removing a mezzanine card, you must first remove the sled board
from the chassis, see "Removing a Sled" on page 62.
1 Remove the screws securing the assembly.
2 Remove the assembly from the sled.
3 Flip the assembly over and remove the provided screw securing the linking
board.
4 Remove the linking board from the mezzanine card.
5 Disconnect the SAS cable from the card.
6 Remove the provided screws securing the card.
7 Remove the mezzanine card from the assembly.
SAS Cable Identification
The following is an outline of the SAS cable types used in the C5220 system
for the mezzanine function.
routing path
SATA Cable 4 to
HDD 0
SATA Cable 5 to
HDD 1
