88 Installing System Components

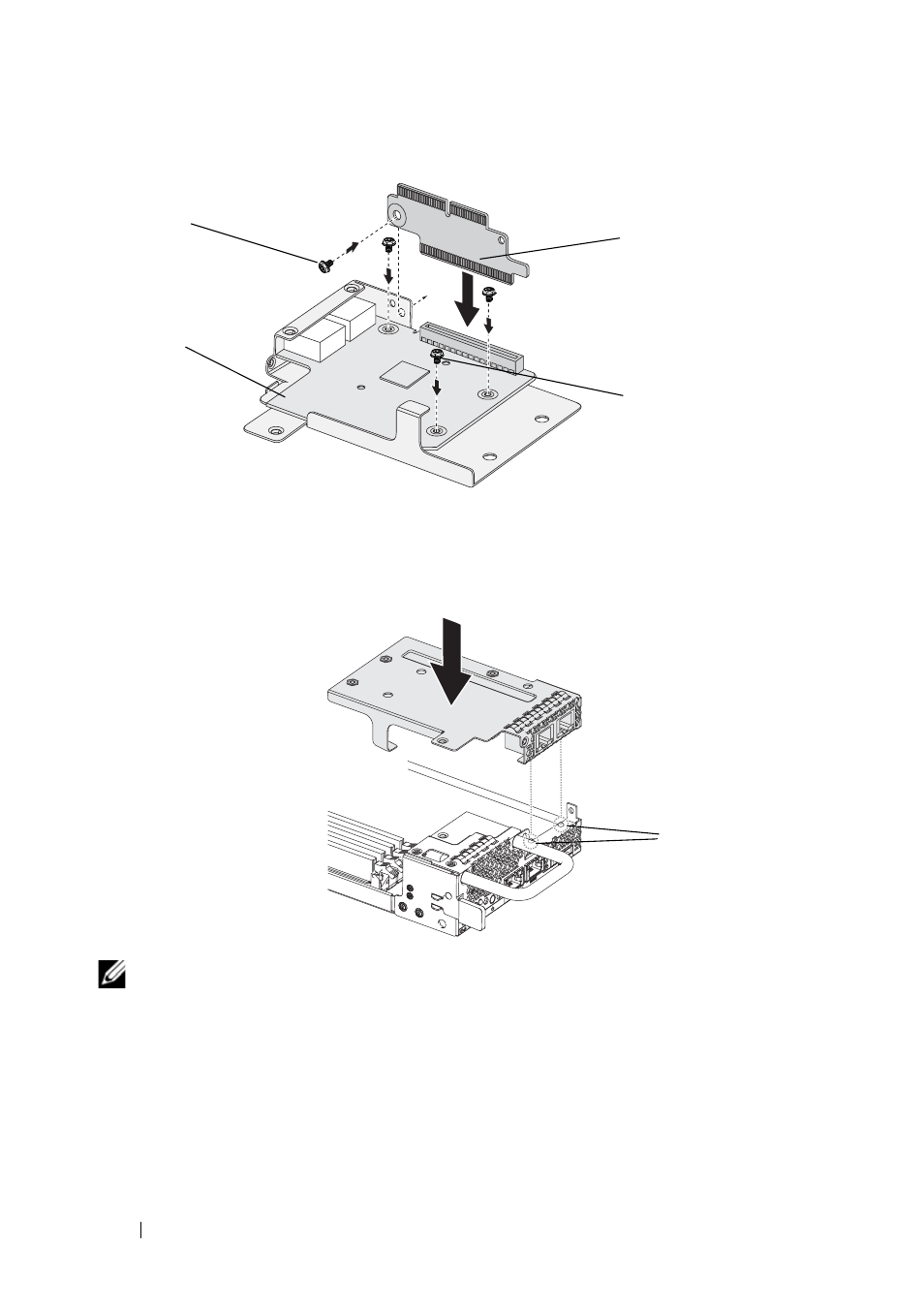

Figure 3-11. Installing a Linking Board in a Mezzanine Card
6 Flip the mezzanine assembly over and align over the two guide pins on the
sled, see following image.
Figure 3-12. Installing a Mezzanine Assembly in a Sled
NOTE: The I/O screw bracket tab must be behind the mezzanine bracket.
7 Align the linking board over the sled and insert as shown in the following
image.
2
3
4
5
6
