96 Installing System Components

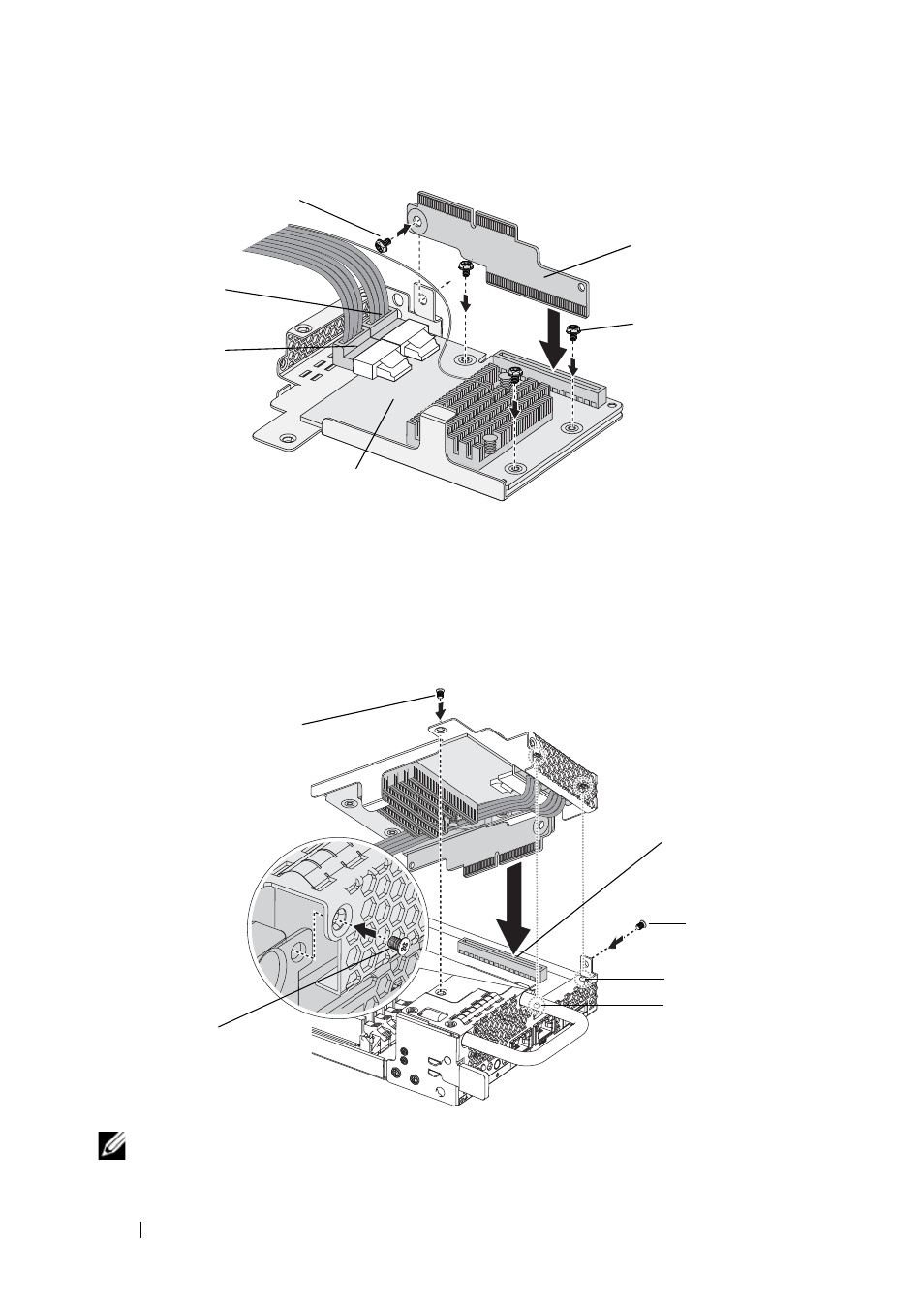

Figure 3-21. Inserting a Linking Board on a 3.5" SAS Mezzanine Card
8 Flip the mezzanine assembly over and align over the two guide pins on the
sled, see following image.
9 Align the linking board over the sled and insert.
10 Secure the assembly to the sled with the three screws.
Figure 3-22. Installing a SAS Mezzanine Assembly in a Sled
NOTE: The I/O screw bracket tab must be behind the mezzanine bracket.
6
4
5
5
2
7
9
8
10
8
10
10
