Using the Viewer 79
Accessing Scan Mode from the On-board Web Interface

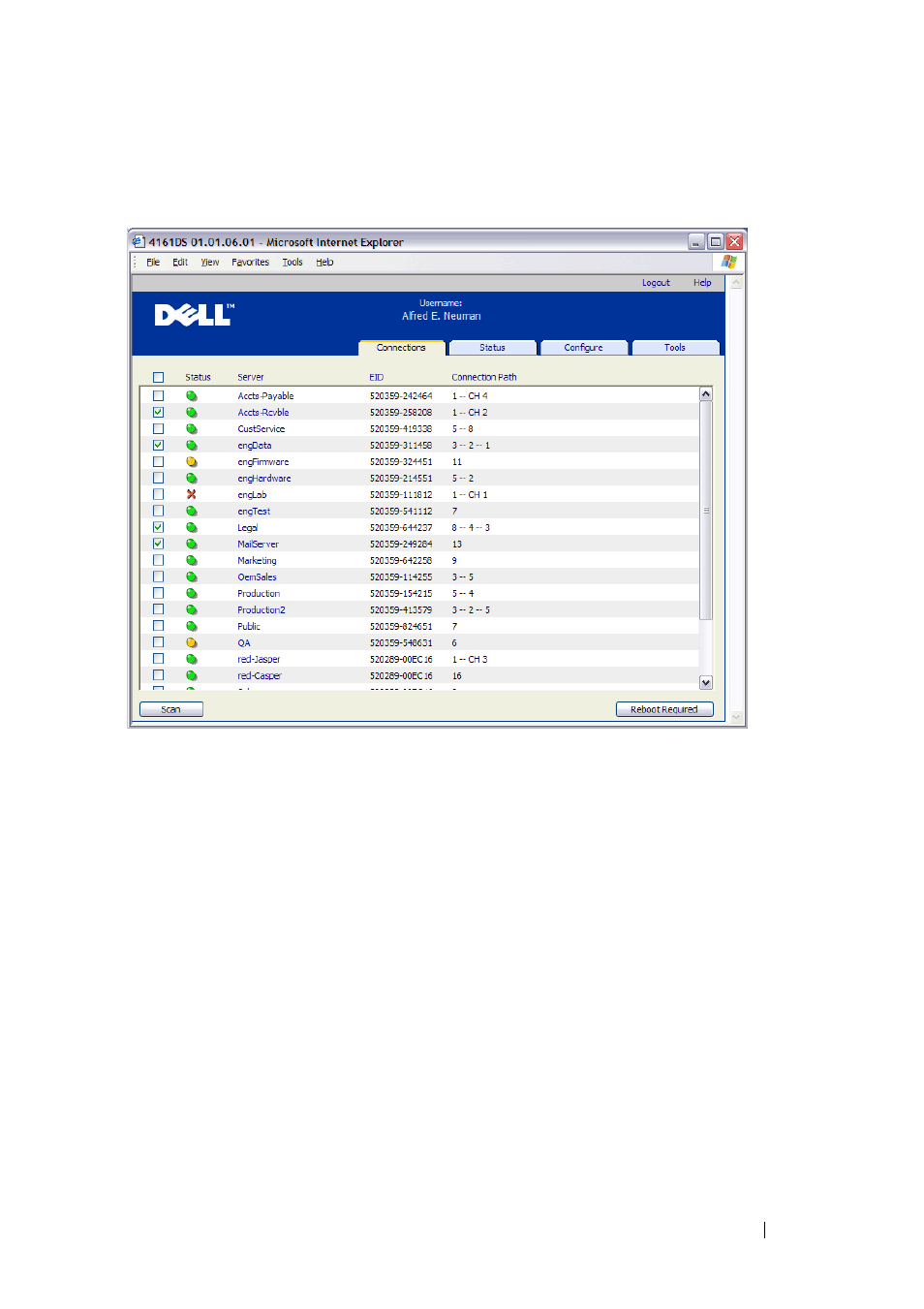

Figure 4-10. On-board Web Interface - Scanning Servers
To access Scan mode in the on-board web interface:
1 In the on-board web interface, click the Connections tab.
2 Select the check boxes next to the servers you want to scan.
3 Click Scan.
Thumbnail View Status Indicators
The green LED indicates that a server is currently being scanned. The red X
indicates that the last scan of the server was not successful. The scan may
have failed due to a credential or path failure (the server path on the Remote
Console Switch was not available), or because of some other reason. When
the mouse pointer is placed on the red X a tool tip appears and indicates the
reason for the failure.
Setting up your Scanning Preferences
To set scan preferences:
